Complete Dana 44 assemblies ready to be installed into your vehicle.
Dana 44 Complete Assemblies
Showing all 38 results
-
Dana 44 Complete Assemblies

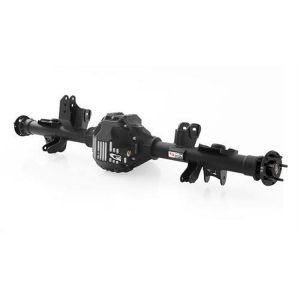

CORE 44 Rear Axle Assembly with 4.88 Ratio and Detroit True Trac Locker
- G2 Axle and Gear | Part Number: G/2C4TSR488TC0
- Wheel Bolt Pattern:5 On 4.5 Inches
- Traction Device:Detroit True Trac
- Fitment:Direct Fit
- Housing Type:97-06 Jeep TJ Dana 44
- Front Or Rear:Rear
- Axle Spline:30 Splines
- Gear Ratio:4.88
- Brakes:Reuse Factory
SKU: G/2C4TSR488TC0 -
Dana 44 Complete Assemblies
G2 JK CORE 44 Front Axle With 4.88 Ratio and 35 Spline ARB Air Locker Differential – C4JMFS488AP5
Dana 44 Complete AssembliesG2 JK CORE 44 Front Axle With 4.88 Ratio and 35 Spline ARB Air Locker Differential – C4JMFS488AP5
- 07-Current Wrangler JK, 2and 4 Door
- High Pinion Front with 4.88 gear ratio and ARB Air Locker
- Utilizes new generation 8.8in. JK 44 ring and pinion with larger pinion shaft
- USA Made 4340 Chromalloy 1.5in. 35 spline Placer axle shafts
- Heavy duty Dana Spicer 5-7166X Axle U-Joints
- Factory style flange pinion yoke
- Standard axle caster for 0-4 inch lifts
- Massive forged inner C-ends
- Integrated skid plates on lower control arm mounts
- Heavy-duty 1/4in. laser cut brackets
- Heavy duty 3in. diameter 5/16in. DOM tubes
- Reinforcing ribs for added strength and protection
- Uses metric Rubicon style carrier bearings
- Heavy duty forged bearing caps
- Spanner nuts for backlash adjustment
- Heat-treated aluminum diff cover with cooling fins
SKU: G/2C4JMFS488AP5 -
Dana 44 Complete Assemblies
G2 JK CORE 44 Front Axle With 4.56 Ratio and 35 Spline ARB Air Locker Differential – C4JMFS456AP5
Dana 44 Complete AssembliesG2 JK CORE 44 Front Axle With 4.56 Ratio and 35 Spline ARB Air Locker Differential – C4JMFS456AP5
- 07-Current Wrangler JK, 2and 4 Door
- High Pinion Front with 4.56 gear ratio and ARB Air Locker
- Utilizes new generation 8.8in. JK 44 ring and pinion with larger pinion shaft
- USA Made 4340 Chromalloy 1.5in. 35 spline Placer axle shafts
- Heavy duty Dana Spicer 5-7166X Axle U-Joints
- Factory style flange pinion yoke
- Standard axle caster for 0-4 inch lifts
- Massive forged inner C-ends
- Integrated skid plates on lower control arm mounts
- Heavy-duty 1/4in. laser cut brackets
- Heavy duty 3in. diameter 5/16in. DOM tubes
- Reinforcing ribs for added strength and protection
- Uses metric Rubicon style carrier bearings
- Heavy duty forged bearing caps
- Spanner nuts for backlash adjustment
- Heat-treated aluminum diff cover with cooling fins
SKU: G/2C4JMFS456AP5 -
Dana 44 Complete Assemblies
G2 JK CORE 44 High Pinion Front Axle With 4.88 Ratio and 35 Spline ARB Air Locker Differential – C4JMFL488AP5
Dana 44 Complete AssembliesG2 JK CORE 44 High Pinion Front Axle With 4.88 Ratio and 35 Spline ARB Air Locker Differential – C4JMFL488AP5
- 07-Current Wrangler JK, 2and 4 Door
- High Pinion Front with 4.88 gear ratio and ARB Air Locker
- Utilizes new generation 8.8in. JK 44 ring and pinion with larger pinion shaft
- USA Made 4340 Chromalloy 1.5in. 35 spline Placer axle shafts
- Heavy duty Dana Spicer 5-7166X Axle U-Joints
- Factory style flange pinion yoke
- 3 Degrees extra axle caster for 6in. and up lifts
- Massive forged inner C-ends
- Integrated skid plates on lower control arm mounts
- Heavy-duty 1/4in. laser cut brackets
- Heavy duty 3in. diameter 5/16in. DOM tubes
- Reinforcing ribs for added strength and protection
- Uses metric Rubicon style carrier bearings
- Heavy duty forged bearing caps
- Spanner nuts for backlash adjustment
- Heat-treated aluminum diff cover with cooling fins
SKU: G/2C4JMFL488AP5 -
Dana 44 Complete Assemblies
G2 JK CORE 44 High Pinion Front Axle With 4.56 Ratio and 35 Spline ARB Air Locker Differential – C4JMFL456AP5
Dana 44 Complete AssembliesG2 JK CORE 44 High Pinion Front Axle With 4.56 Ratio and 35 Spline ARB Air Locker Differential – C4JMFL456AP5
- 07-Current Wrangler JK, 2and 4 Door
- High Pinion Front with 4.56 gear ratio and ARB Air Locker
- Utilizes new generation 8.8in. JK 44 ring and pinion with larger pinion shaft
- USA Made 4340 Chromalloy 1.5in. 35 spline Placer axle shafts
- Heavy duty Dana Spicer 5-7166X Axle U-Joints
- Factory style flange pinion yoke
- Extra axle caster for 6in. and up lifts
- Massive forged inner C-ends
- Integrated skid plates on lower control arm mounts
- Heavy-duty 1/4in. laser cut brackets
- Heavy duty 3in. diameter 5/16in. DOM tubes
- Reinforcing ribs for added strength and protection
- Uses metric Rubicon style carrier bearings
- Heavy duty forged bearing caps
- Spanner nuts for backlash adjustment
- Heat-treated aluminum diff cover with cooling fins
SKU: G/2C4JMFL456AP5 -
Dana 44 Complete Assemblies
Dana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 5.38 Ratio – 10010742
Dana 44 Complete AssembliesDana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 5.38 Ratio – 10010742
- 07-Current Wrangler JK, 2 and 4 door
- Dana 44
- 5.38 ratio
- Front
- Electric locker
- 5/16 inch thick axle tubes for improved strength, rigidity and durability
- Redesigned and thicker brackets
- Spicer chromoly axle shafts
- Spicer Life Series (SPL) 1350 u-joints with triple lip seals and full-circle clips
- Performance differential cover and Spicer performance gasket
- Selectable electronic locking differential
- Improved caster angle and pinion angle optimized for lifted Jeeps
- Increased gross axle weight rating
- Dana recommends using military tested and approved 75W-140 synthetic lube (not included)
SKU: D/S10010742 -
Dana 44 Complete Assemblies
Dana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 3.73 Ratio – 10010519
Dana 44 Complete AssembliesDana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 3.73 Ratio – 10010519
- 07-Current Wrangler JK, 2 and 4 door
- Dana 44
- 3.73 ratio
- Front
- Electric locker
- 5/16 inch thick axle tubes for improved strength, rigidity and durability
- Redesigned and thicker brackets
- Spicer chromoly axle shafts
- Spicer Life Series (SPL) 1350 u-joints with triple lip seals and full-circle clips
- Performance differential cover and Spicer performance gasket
- Selectable electronic locking differential
- Improved caster angle and pinion angle optimized for lifted Jeeps
- Increased gross axle weight rating
- Dana recommends using military tested and approved 75W-140 synthetic lube (not included)
SKU: D/S10010519 -
Dana 44 Complete Assemblies
4.88 Dana 44 Crate JK Front Axle Assembly
- 07-Current Wrangler JK, 2 and 4 door
- Dana 44
- 4.88 gear ratio
- Front
- Without brakes and brackets
- Electric locking differential
- Chromoly axle shafts for optimal strength and performance
- Thicker wall tubing for increased axle strength
- Spicer gearing
- Spicer SPL 1350 u-joints with triple lip seals and full-circle snap rings for ultimate protection and retention
SKU: D/S2018543-8 -
Dana 44 Complete Assemblies
4.56 Dana 44 Crate JK Front Axle Assembly
- 07-Current Wrangler JK, 2 and 4 door
- Dana 44
- 4.56 ratio
- Front
- Without brakes and brackets
- Electric locking differential
- Chromoly axle shafts for optimal strength and performance
- Thicker wall tubing for increased axle strength
- Spicer gearing
- Spicer SPL 1350 u-joints with triple lip seals and full-circle snap rings for ultimate protection and retention
SKU: D/S2018543-6 -
Dana 44 Complete Assemblies
5.13 Dana 44 Crate JK Front Axle Assembly
- 07-Current Wrangler JK, 2 and 4 door
- Dana 44
- 5.13 ratio
- Front
- Without brakes and brackets
- Electric locking differential
- Chromoly axle shafts for optimal strength and performance
- Thicker wall tubing for increased axle strength
- Spicer gearing
- Spicer SPL 1350 u-joints with triple lip seals and full-circle snap rings for ultimate protection and retention
SKU: D/S2018543-10 -
Dana 44 Complete Assemblies
Dana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 3.73 Ratio – Open Diff – 10032861
Dana 44 Complete AssembliesDana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 3.73 Ratio – Open Diff – 10032861
- 07-Current Wrangler JK, 2 and 4 door
- Dana 44
- 3.73 ratio
- Front
- Standard differential
- 5/16 inch thick axle tubes for improved strength, rigidity and durability
- Redesigned and thicker brackets
- Spicer chromoly axle shafts
- Spicer Life Series (SPL) 1350 u-joints with triple lip seals and full-circle clips
- Performance differential cover and Spicer performance gasket
- Selectable electronic locking differential
- Improved caster angle and pinion angle optimized for lifted Jeeps
- Increased gross axle weight rating
- Dana recommends using military tested and approved 75W-140 synthetic lube (not included)
SKU: D/S10032861 -
Dana 44 Complete Assemblies
5.38 Dana 44 Crate JK Front Axle Assembly
- 07-Current Wrangler JK, 2 and 4 door
- Dana 44
- 5.38 ratio
- Front
- Without brakes and brackets
- Electric locking differential
- Chromoly axle shafts for optimal strength and performance
- Thicker wall tubing for increased axle strength
- Spicer gearing
- Spicer SPL 1350 u-joints with triple lip seals and full-circle snap rings for ultimate protection and retention
SKU: D/S10031144 -
Dana 44 Complete Assemblies
G2 JK Metric CORE 44 Rear With 4.88 ratio and Placer 35 Spline ARB Air Locker Differential – C4JMR488AP5
Dana 44 Complete AssembliesG2 JK Metric CORE 44 Rear With 4.88 ratio and Placer 35 Spline ARB Air Locker Differential – C4JMR488AP5
- JK Rear with 4.88 gear ratio and ARB Air Locker
- Utilizes new generation 8.8in. JK 44 ring & pinion with larger pinion shaft
- USA Made 4340 Chromalloy 35 spline Placer axle shafts
- Factory style flange pinion yoke
- Integrated skid plates on lower control arm mounts
- Heavy-duty 1/4in. laser cut brackets
- Heavy duty 3in. diameter 5/16in. DOM tubes
- Reinforcing ribs for added strength and protection
- Uses metric Rubicon style carrier bearings
- Heavy duty forged bearing caps
- Spanner nuts for backlash adjustment
- Heat-treated aluminum diff cover with cooling fins
SKU: G/2C4JMR488AP5 -
Dana 44 Complete Assemblies
G2 JK CORE 44 Front Axle With 4.56 Ratio and 35 Spline Auburn Ected Differential – C4JMFS456MP5
Dana 44 Complete AssembliesG2 JK CORE 44 Front Axle With 4.56 Ratio and 35 Spline Auburn Ected Differential – C4JMFS456MP5
- JK High Pinion Front with 4.56 gear ratio and Auburn Ected
- Utilizes new generation 8.8in. JK 44 ring & pinion with larger pinion shaft
- USA Made 4340 Chromalloy 1.5in. 35 spline Placer axle shafts
- Heavy duty Dana Spicer 5-7166X Axle U-Joints
- Factory style flange pinion yoke
- Standard axle caster for 0-4 inch lifts
- Massive forged inner C-ends
- Integrated skid plates on lower control arm mounts
- Heavy-duty 1/4in. laser cut brackets
- Heavy duty 3in. diameter 5/16in. DOM tubes
- Reinforcing ribs for added strength and protection
- Uses metric Rubicon style carrier bearings
- Heavy duty forged bearing caps
- Spanner nuts for backlash adjustment
- Heat-treated aluminum diff cover with cooling fins
SKU: G/2C4JMFS456MP5 -
Dana 44 Complete Assemblies
G2 JK CORE 44 High Pinion Front Axle With 4.88 Ratio and 35 Spline Auburn Ected Differential – C4JMFL488MP5
Dana 44 Complete AssembliesG2 JK CORE 44 High Pinion Front Axle With 4.88 Ratio and 35 Spline Auburn Ected Differential – C4JMFL488MP5
- JK High Pinion Front with 4.88 gear ratio and Auburn Ected
- Utilizes new generation 8.8in. JK 44 ring & pinion with larger pinion shaft
- USA Made 4340 Chromalloy 1.5in. 35 spline Placer axle shafts
- Heavy duty Dana Spicer 5-7166X Axle U-Joints
- Factory style flange pinion yoke
- 3 Degrees extra axle caster for 6in. and up lifts
- Massive forged inner C-ends
- Integrated skid plates on lower control arm mounts
- Heavy-duty 1/4in. laser cut brackets
- Heavy duty 3in. diameter 5/16in. DOM tubes
- Reinforcing ribs for added strength and protection
- Uses metric Rubicon style carrier bearings
- Heavy duty forged bearing caps
- Spanner nuts for backlash adjustment
- Heat-treated aluminum diff cover with cooling fins
SKU: G/2C4JMFL488MP5 -
Dana 44 Complete Assemblies
G2 JK CORE 44 High Pinion Front Axle With 5.38 Ratio and 35 Spline ARB Air Locker Differential – C4JMFL538AP5
Dana 44 Complete AssembliesG2 JK CORE 44 High Pinion Front Axle With 5.38 Ratio and 35 Spline ARB Air Locker Differential – C4JMFL538AP5
- JK High Pinion Front with 5.38 gear ratio and ARB Air Locker
- Utilizes new generation 8.8in. JK 44 ring & pinion with larger pinion shaft
- USA Made 4340 Chromalloy 1.5in. 35 spline Placer axle shafts
- Heavy duty Dana Spicer 5-7166X Axle U-Joints
- Factory style flange pinion yoke
- 3 Degrees extra axle caster for 6in. and up lifts
- Massive forged inner C-ends
- Integrated skid plates on lower control arm mounts
- Heavy-duty 1/4in. laser cut brackets
- Heavy duty 3in. diameter 5/16in. DOM tubes
- Reinforcing ribs for added strength and protection
- Uses metric Rubicon style carrier bearings
- Heavy duty forged bearing caps
- Spanner nuts for backlash adjustment
- Heat-treated aluminum diff cover with cooling fins
SKU: G/2C4JMFL538AP5 -
Dana 44 Complete Assemblies
Dana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 4.88 Ratio – 10010521
Dana 44 Complete AssembliesDana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 4.88 Ratio – 10010521
- 2 and 4-door models
- 4.88 Genuine Spicer® Gears
- 5/16″ thick axle tubes for improved strength, rigidity and durability
- Redesigned and thicker brackets
- Spicer® chromoly axle shafts
- Spicer Life Series® (SPL®) 1350 u-joints with triple lip seals and full-circle clips
- Performance differential cover and Spicer® performance gasket
- Selectable electronic locking differential (harness sold separately, part number D/S10021771)
- Improved caster angle and pinion angle optimized for lifted Jeeps
- Increased gross axle weight rating
- Dana recommends using military tested and approved 75W-140 synthetic lube (not included)
SKU: D/S10010521 -
Dana 44 Complete Assemblies
Dana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 4.56 Ratio – 10010520
Dana 44 Complete AssembliesDana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 4.56 Ratio – 10010520
- 2 and 4-door models
- 4.56 Genuine Spicer® Gears
- 5/16″ thick axle tubes for improved strength, rigidity and durability
- Redesigned and thicker brackets
- Spicer® chromoly axle shafts
- Spicer Life Series® (SPL®) 1350 u-joints with triple lip seals and full-circle clips
- Performance differential cover and Spicer® performance gasket
- Selectable electronic locking differential (harness sold separately, part number D/S10021771)
- Improved caster angle and pinion angle optimized for lifted Jeeps
- Increased gross axle weight rating
- Dana recommends using military tested and approved 75W-140 synthetic lube (not included)
SKU: D/S10010520 -
Dana 44 Complete Assemblies
Dana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 4.10 Ratio – 10010455
Dana 44 Complete AssembliesDana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 4.10 Ratio – 10010455
- 2 and 4-door models
- 4.10 Genuine Spicer® Gears
- 5/16″ thick axle tubes for improved strength, rigidity and durability
- Redesigned and thicker brackets
- Spicer® chromoly axle shafts
- Spicer Life Series® (SPL®) 1350 u-joints with triple lip seals and full-circle clips
- Performance differential cover and Spicer® performance gasket
- Selectable electronic locking differential (harness sold separately, part number D/S10021771)
- Improved caster angle and pinion angle optimized for lifted Jeeps
- Increased gross axle weight rating
- Dana recommends using military tested and approved 75W-140 synthetic lube (not included)
SKU: D/S10010455 -
Dana 44 Complete Assemblies
Dana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 5.13 Ratio – 10010522
Dana 44 Complete AssembliesDana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 5.13 Ratio – 10010522
- 2 and 4-door models
- 5.13 Genuine Spicer® Gears
- 5/16″ thick axle tubes for improved strength, rigidity and durability
- Redesigned and thicker brackets
- Spicer® chromoly axle shafts
- Spicer Life Series® (SPL®) 1350 u-joints with triple lip seals and full-circle clips
- Performance differential cover and Spicer® performance gasket
- Selectable electronic locking differential (harness sold separately, part number D/S10021771)
- Improved caster angle and pinion angle optimized for lifted Jeeps
- Increased gross axle weight rating
- Dana recommends using military tested and approved 75W-140 synthetic lube (not included)
SKU: D/S10010522 -
Dana 44 Complete Assemblies
G2 JK CORE 44 High Pinion Front Axle With 5.13 Ratio and 35 Spline ARB Air Locker Differential – C4JMFL513AP5
Dana 44 Complete AssembliesG2 JK CORE 44 High Pinion Front Axle With 5.13 Ratio and 35 Spline ARB Air Locker Differential – C4JMFL513AP5
- JK High Pinion Front with 5.13 gear ratio and ARB Air Locker
- Utilizes new generation 8.8in. JK 44 ring & pinion with larger pinion shaft
- USA Made 4340 Chromalloy 1.5in. 35 spline Placer axle shafts
- Heavy duty Dana Spicer 5-7166X Axle U-Joints
- Factory style flange pinion yoke
- 3 Degrees extra axle caster for 6in. and up lifts
- Massive forged inner C-ends
- Integrated skid plates on lower control arm mounts
- Heavy-duty 1/4in. laser cut brackets
- Heavy duty 3in. diameter 5/16in. DOM tubes
- Reinforcing ribs for added strength and protection
- Uses metric Rubicon style carrier bearings
- Heavy duty forged bearing caps
- Spanner nuts for backlash adjustment
- Heat-treated aluminum diff cover with cooling fins
SKU: G/2C4JMFL513AP5 -
Dana 44 Complete Assemblies
CORE 44 Front Axle Assembly with 4.10 Ratio and Eaton E-Locker
- Fits 1997 to 2006 TJ Wrangler, Rubicon and Unlimited
- Fits 1984 to 2001 XJ Cherokee
- Massive forged inner C-end
- Integrated skid plates on lower control arm mount
- Heavy-duty 1/4” laser cut brackets
- Heavy duty 3” diameter 5/16” DOM tubes
- Reinforcing ribs for added strength and protection
- Heavy duty forged bearing caps
- Spanner nuts for backlash adjustment
- Heat-treated aluminum diff cover with cooling fins
- Utilizes new generation JK 44 ring & pinion
- Gear Ratio: 4.10
- Locker: Eaton E-Locker
- SAE Bearings
- 30 Spline G2 Chromoly Axles
SKU: G/2C4TSFS410EC0
