Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 JK Rubicon Replacement Driver Rear Axle Shaft – 95-2052-2-321
Dana 44 Axle Shafts, Replacement Axle ShaftsG2 Dana 44 JK Rubicon Replacement Driver Rear Axle Shaft – 95-2052-2-321
- G2 Axle and Gear Dana 44 JK Rubicon Replacement Axle Shaft
- 32 Spline
- 31.18in. Overall Length
- 5 on 5in. Bolt Circle
- 1/2in. Thread in Wheel Studs Not Included
- 2.828in. Pilot
- For Use On 2007 and up Jeep Wrangler JK Rubicon Only Driver Side
- Wheel Studs Not Included
SKU: G/295-2052-2-321 -
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 JK Rubicon Replacement Passenger Rear Axle Shaft – 95-2052-2-322
Dana 44 Axle Shafts, Replacement Axle ShaftsG2 Dana 44 JK Rubicon Replacement Passenger Rear Axle Shaft – 95-2052-2-322
- G2 Axle and Gear Dana 44 JK Rubicon Replacement Axle Shaft
- 32 Spline
- For Use On 2007 and up Jeep Wrangler JK Rubicon Only Passenger Side
- Wheel Studs Not Included
SKU: G/295-2052-2-322 -
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 Chromalloy Inner Axle Shaft – 97-2033-008
- G2 Axle and Gear Chromoly Inner Axle Shaft Dana 44
- Dana 44
- 30 Spline
- 18.625 inch Overall Length
- Accepts 5-760X U-Joint
- Passenger Side
- Machined to Accept Full Circle Clips
- For use in 68-79 Ford F250
SKU: G/297-2033-008 -
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Placer Gold Series Dana 44 JK Rubicon Rear Axle Shaft (Passenger Side) – 195-2052-322
Dana 44 Axle Shafts, Replacement Axle ShaftsG2 Placer Gold Series Dana 44 JK Rubicon Rear Axle Shaft (Passenger Side) – 195-2052-322
- 07-Current Wrangler JK, 2 and 4 Door
- Rubicon models
- Passenger side
- Dana 44 rear axles
- For use with 32 spline aftermarket lockers
- Forged from 4340 Chromoloy steel
- Dual bolt pattern flange 5×5 and 5×5.5
- Made in the USA
SKU: G/2195-2052-322 -
Dana 44 Differential Covers
G2 CORE 44 Brute Differential Cover – 40-2051MB
- Cast from lightweight aluminum to dissipate heat
- Ball-milled black finish
- Heat treated and shot peened to handle direct impact
- Fully machined seal Surface with o-ring for a leak free installation
- Magnetic dipstick and drain plug to isolate foreign debris from moving parts
SKU: G/240-2051MB -
Dana 44 Complete Assemblies
Dana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 4.56 Ratio – 10010520
Dana 44 Complete AssembliesDana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 4.56 Ratio – 10010520
- 2 and 4-door models
- 4.56 Genuine Spicer® Gears
- 5/16″ thick axle tubes for improved strength, rigidity and durability
- Redesigned and thicker brackets
- Spicer® chromoly axle shafts
- Spicer Life Series® (SPL®) 1350 u-joints with triple lip seals and full-circle clips
- Performance differential cover and Spicer® performance gasket
- Selectable electronic locking differential (harness sold separately, part number D/S10021771)
- Improved caster angle and pinion angle optimized for lifted Jeeps
- Increased gross axle weight rating
- Dana recommends using military tested and approved 75W-140 synthetic lube (not included)
SKU: D/S10010520 -
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 Chromalloy Outer Axle Shaft – 97-2033-001
- G2 Axle and Gear Chromoly Outer Axle Shaft
- Dana 44
- 19 Spline
- 9.72″” Overall Length
- Accepts 5-760X U-Joint
- Driver and Passenger Side
- Machined to Accept Full Circle Clips
- For use in Ford Dana 44
SKU: G/297-2033-001 -
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 JK Chromoly Inner Axle Shaft – 97-2051-002
- G2 Axle and Gear Chromoly Inner Axle Shaft Dana 44
- Dana 44 JK
- 30 Spline
- Stock Overall Length
- Accepts 5-7166X U-Joint
- Driver Side
- Machined to Accept Full Circle Clips
- For Use In 2007 Up
SKU: G/297-2051-002 -
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 JK Placer Gold Driver Side Inner Front Axle – 197-2051-004
Dana 44 Axle Shafts, Replacement Axle ShaftsG2 Dana 44 JK Placer Gold Driver Side Inner Front Axle – 197-2051-004
- Jeep JK Dana 44 Front Driver Side Inner Axle
- Forged From 4340 Chromoly Steel
- Uses Larger Rubicon 1350 Series 5-7166X U-Joint
- Machined For Full Circle Snap Rings
- Made in the U.S.A
- For Use With 35 Spline Aftermarket Differential
- 18.68 inch Long
SKU: G/2197-2051-004 -
-

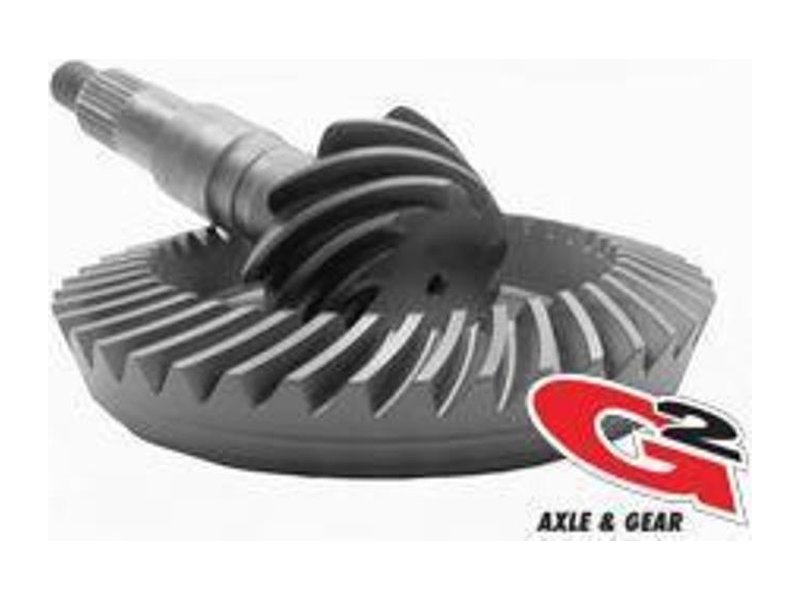

Dana 44 Ring and Pinion, Ring and Pinions

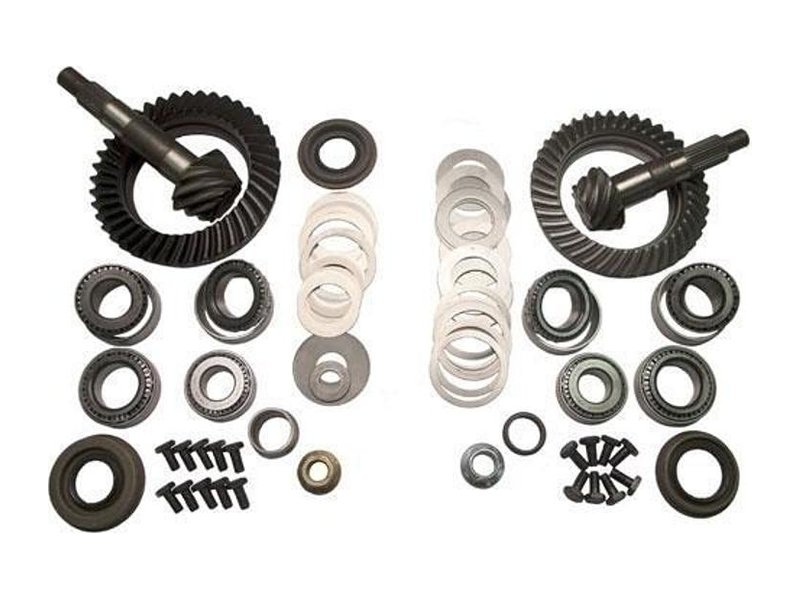

G2 JK Front and Rear 5.13 Ring and Pinion Kit – 4-JK-513
- Non-Rubicon models
- Dana 30 front and Dana 44 rear
- 5.13 G-2 Ring And Pinion Sets
- Includes front and rear matched Master Installation Kits
- Limited Lifetime Warranty
- Computer Heat Treated 8620 Steel
- Manufactured To O.E. Specs
- Double Shot Peened
- Double Lapped
- Everything you need for installation on your Jeep
SKU: G/24-JK-513 -
Dana 44 Bearings and Install Kits, Ring and Pinion Installation Kits
G2 Dana 44 Big Bearing Master Ring and Pinion Installation Kit – 35-2033B
Dana 44 Bearings and Install Kits, Ring and Pinion Installation KitsG2 Dana 44 Big Bearing Master Ring and Pinion Installation Kit – 35-2033B
- For Use In 94-96 Ford F150/Bronco And 91-01 Dodge 1500 Front Axles
- Pinion Nut
- Pinion Seal
- Timken Outer Pinion Bearing And Race
- Crush Sleeve
- Timken Inner Pinion Bearing And Race
- Pinion Shims
- Carrier Shims
- Carrier Bearings And Races
- Ring Gear Bolts
- Thread Locking Compound
- Gear Marking Compound
- Silicone Sealer
SKU: G/235-2033B -
Dana 44 Bearings and Install Kits, Dana 44 Oil Seals, Wheel Bearings
G2 80-95 Ford TTB Dana 44 Light Duty Front Wheel Bearing Kit – 30-8026
Dana 44 Bearings and Install Kits, Dana 44 Oil Seals, Wheel BearingsG2 80-95 Ford TTB Dana 44 Light Duty Front Wheel Bearing Kit – 30-8026
- G2 Axle and Gear Front Wheel Bearing Kit
- For use in Front Dana 44 LD
- All Parts For One Side
- Timken Inner Wheel Bearing and Race
- Timken Outer Wheel Bearing and Race
- Wheel Bearing Seal
SKU: G/230-8026 -
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 JK 07-09 Replacement Axle Shaft – 95-2052-1
- G2 Axle and Gear Jeep JK Dana 44 Replacement Axle
- Forged 1541H Steel
- 31.50in. Overall Length
- 30 Spline
- Brake Pilot Surface 2.828in.
- Bearing 1.565in.
- 5 on 5
- LH/RH
- For use in 07-09 Jeep JK
SKU: G/295-2052-1 -
Dana 44 Axle Shafts, Replacement Axle Shafts
Dana 44 JK 35 Spline Rear Placer Gold Rear Chromoly Axle Shaft
Dana 44 Axle Shafts, Replacement Axle ShaftsDana 44 JK 35 Spline Rear Placer Gold Rear Chromoly Axle Shaft
- Jeep JK Dana 44 Rear Axle Shaft Forged From 4340 Chromoly Steel
- Dual Bolt Pattern Flange 5 x 5 and 5 x 5.5
- Includes Wheel Studs And Wheel Bearings
- Made in the U.S.A
- For Use With 35 Spline Aftermarket Locker
- Right or left side
SKU: G/2195-2052-35 -
Dana 44 Axle Shafts
G2 Dana 44 YJ/XJ/TJ 30 Spline Rear Chromoly Axle Kit Disc – 96-2045-1-30
- Jeep Rear Axle Kit
- Dana 44 Rubicon Disc Brake
- 30 Spline
- 5-Lug Dual Drilled 5×4.5/5.5
- For Use With 30 Spline Differential
- For Use In Jeep YJ,XJ,TJ Rubicon
- Includes: wheel bearings, seals and screw in wheel studs
SKU: G/296-2045-1-30 -
Dana 44 Bearings and Install Kits, Ring and Pinion Installation Kits
G2 Dana 44 JK Rubicon Front Master Ring and Pinion Installation Kit – 35-2051
Dana 44 Bearings and Install Kits, Ring and Pinion Installation KitsG2 Dana 44 JK Rubicon Front Master Ring and Pinion Installation Kit – 35-2051
- For Use In Jeep JK Rubicon Dana 44 Front Only
- Pinion Nut
- Pinion Seal
- Timken Outer Pinion Bearing And Race
- Crush Sleeve
- Timken Inner Pinion Bearing And Race
- Pinion Shims
- Carrier Shims
- Carrier Bearings And Races
- Ring Gear Bolts
- Thread Locking Compound
- Gear Marking Compound
- Silicone Sealer
SKU: G/235-2051 -
-
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 Chromalloy Inner Axle Shaft – 97-2033-012
- G2 Axle and Gear Chromoly Inner Axle Shaft Dana 44
- Dana 44
- 30 Spline
- 32.120 inch Overall Length
- Accepts 5-760X U-Joint
- Passenger Side
- Machined to Accept Full Circle Clips
- For use in 80-92 Jeep Wagoneer
SKU: G/297-2033-012 -
-
Dana 44 Complete Assemblies
Dana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 5.13 Ratio – 10010522
Dana 44 Complete AssembliesDana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 5.13 Ratio – 10010522
- 2 and 4-door models
- 5.13 Genuine Spicer® Gears
- 5/16″ thick axle tubes for improved strength, rigidity and durability
- Redesigned and thicker brackets
- Spicer® chromoly axle shafts
- Spicer Life Series® (SPL®) 1350 u-joints with triple lip seals and full-circle clips
- Performance differential cover and Spicer® performance gasket
- Selectable electronic locking differential (harness sold separately, part number D/S10021771)
- Improved caster angle and pinion angle optimized for lifted Jeeps
- Increased gross axle weight rating
- Dana recommends using military tested and approved 75W-140 synthetic lube (not included)
SKU: D/S10010522 -
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Placer Gold Series Dana 44 JK Rear Axle Shaft – 195-2052-1
Dana 44 Axle Shafts, Replacement Axle ShaftsG2 Placer Gold Series Dana 44 JK Rear Axle Shaft – 195-2052-1
- 07-Current Wrangler JK, 2 & 4 Door
- Driver or passenger side
- Dana 44 rear axles
- Non-Rubicon models
- For use with 30 spline aftermarket lockers
- Forged from 4340 Chromoloy steel
- Dual bolt pattern flange 5×5 and 5×5.5
- Made in the USA
SKU: G/2195-2052-1 -
-
Dana 44 Axle Shafts
G2 Dana 44 YJ/XJ/TJ 30 Spline Rear Chromoly Axle Kit – 96-2033-1-30
- Jeep Rear Axle Kit
- Dana 44
- 30 Spline
- 5-Lug Dual Drilled 5×4.5/5.5
- For Use In 87-06 YJ/XJ/TJ
- 89 and older must reuse factory retainer plates
- Not for use with Disc Brake For Disc Brake applications use part G/296-2045-1-30
SKU: G/296-2033-1-30 -
-
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 Chromalloy Outer Axle Shaft – 97-2033-002
- G2 Axle and Gear Chromoly Outer Axle Shaft
- Dana 44
- 19 Spline
- 9.92″” Overall Length
- Accepts 5-760X U-Joint
- Driver and Passenger Side
- Machined to Accept Full Circle Clips
- For use in GM Dana 44
SKU: G/297-2033-002 -
-
Dana 44 Hubs and Spindles, Locking Hubs
Warn Premium Manual Locking Hubs (Chrome ) – 20990
- For use with 19 spline outer axle
- For use With internal style wheel hubs
- All Metal Construction
- Fits most 1/2 and 3/4 ton Dana 44 and GM 10 bolt axles
- Vehicles with full time 4WD will require transfer case conversion
- Vehicles With 3 bolt automatic hub covers require spindle nut kit part number WAR32720
- Limited lifetime warranty
SKU: WAR20990 -
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 JK Chromoly Inner Axle Shaft – 97-2051-003
- G2 Axle and Gear Chromoly Inner Axle Shaft Dana 44
- Dana 44 JK
- 30 Spline
- Stock Overall Length
- Accepts 5-7166X U-Joint
- Passenger Side
- Machined to Accept Full Circle Clips
- For Use In 2007 Up
SKU: G/297-2051-003 -
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 Chromalloy Inner Axle Shaft – 97-2045-001
- G2 Axle and Gear Chromoly Inner Axle Shaft
- Dana44
- 30 Spline
- 16.62″ Overall Length
- Accepts D/S 5-760 U-Joint
- Driver Side
- Machined to Accept Full Circle Clips
- For use in 03-06 Jeep Dana 44 w/Rubicon Option
SKU: G/297-2045-001 -
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 Chromalloy Inner Axle Shaft – 97-2045-002
- G2 Axle and Gear Chromoly Inner Axle Shaft
- Dana 44
- 30 Spline
- 31.88″” Overall Length
- Accepts 5-760X U-Joint
- Passenger Side
- Machined to Accept Full Circle Clips
- For use in 03-06 Jeep Dana 44 w/Rubicon Option
SKU: G/297-2045-002 -
-
Dana 44 Axle Shafts, Replacement Axle Shafts
G2 Dana 44 Chromalloy Inner Axle Shaft – 97-2033-013
- G2 Axle and Gear Chromoly Inner Axle Shaft Dana 44
- Dana 44
- 30 Spline
- 36.13″” Overall Length
- Accepts 5-760X U-Joint
- Driver Side
- Machined to Accept Full Circle Clips
- For use in 73-78 GM Dana 44
SKU: G/297-2033-013 -
-
Dana 44 Bearings and Install Kits, Ring and Pinion Installation Kits
G2 Dana 44 JK Rubicon Rear Master Ring and Pinion Installation Kit – 35-2052
Dana 44 Bearings and Install Kits, Ring and Pinion Installation KitsG2 Dana 44 JK Rubicon Rear Master Ring and Pinion Installation Kit – 35-2052
- For Use In Jeep JK Rubicon Dana 44 Rear With Factory Locker Only
- Pinion Nut
- Pinion Seal
- Timken Outer Pinion Bearing And Race
- Crush Sleeve
- Timken Inner Pinion Bearing And Race
- Pinion Shims
- Carrier Shims
- Carrier Bearings And Races
- Ring Gear Bolts
- Thread Locking Compound
- Gear Marking Compound
- Silicone Sealer
SKU: G/235-2052 -
Dana 44 Drive Yokes and Flanges, Differential Pinion Shaft Nut
Dana Spicer Dana 30/44 Output Shaft Yoke Nut – 30185
Dana 44 Drive Yokes and Flanges, Differential Pinion Shaft NutDana Spicer Dana 30/44 Output Shaft Yoke Nut – 30185
- Fits 1987 to 2006 Wrangler, Rubicon and Unlimited with Dana 30
- Fits 1972 to 1975 and 1986 CJ with Dana 30 and Dana 44
- Fits 1987 to 2000 XJ Cherokee with Dana 30
- Fits 1986 to 1992 MJ Comanche with Dana 30
- Fits 1973 to 1991 SJ Full Size and J-series truck Dana 44
- Front
- Thread size .750-16
- Hex size 1.125
- Thickness 0.563
- For use with washer part D/S30186
SKU: D/S30185 -
Dana 44 Differential Covers
G2 Dana 44 Aluminum Cover – 40-2033AL
- For Use On Dana 44 Front Or Rear Asxles
- Cast From Lightweight Aluminum To Dissipate Heat
- Raw Aluminum Finish
- ReinForcing Ribs For Added Rigidity And Strength
- Heat Treated And Shot Peened To Help Handle A Direct Impact
- Fully Machined Seal Surface For A Leak Free Installation
SKU: G/240-2033AL -
Dana 44 Complete Assemblies
Dana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 4.88 Ratio – 10010521
Dana 44 Complete AssembliesDana Spicer Jeep JK Ultimate Dana 44 Front Axle Assembly 4.88 Ratio – 10010521
- 2 and 4-door models
- 4.88 Genuine Spicer® Gears
- 5/16″ thick axle tubes for improved strength, rigidity and durability
- Redesigned and thicker brackets
- Spicer® chromoly axle shafts
- Spicer Life Series® (SPL®) 1350 u-joints with triple lip seals and full-circle clips
- Performance differential cover and Spicer® performance gasket
- Selectable electronic locking differential (harness sold separately, part number D/S10021771)
- Improved caster angle and pinion angle optimized for lifted Jeeps
- Increased gross axle weight rating
- Dana recommends using military tested and approved 75W-140 synthetic lube (not included)
SKU: D/S10010521 -
