CORE 44 Rear Axle Assembly with 4.56 Ratio and Eaton E-Locker

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • CORE 44 rear axle assembly, part number C4TSR456EC0, from G2 Axle and Gear
  • 4.56 gear ratio with Eaton E-Locker
  • Fits 1997-2006 Jeep TJ and LJ Wranglers
  • Accepts stock Dana 44 ring and pinions and axle shafts

Description

Overview

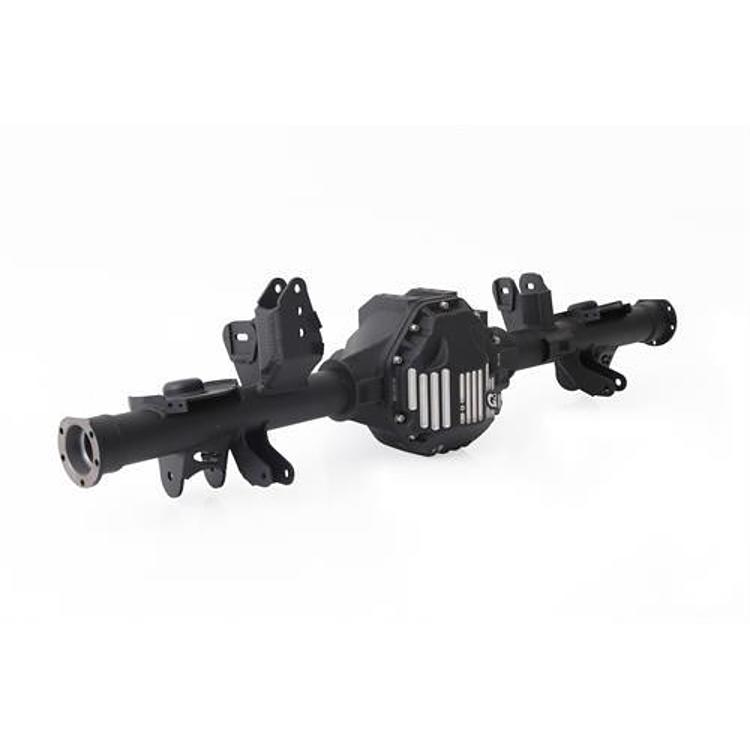

The G2 Axle and Gear CORE 44 rear axle assembly, part number C4TSR456EC0, pairs a new Dana 44 housing with a 4.56 ratio and an Eaton E-Locker. G2 positions it for 1997-2006 Jeep TJ and LJ Wranglers that have outgrown a stock Dana 30 or a Rubicon Dana 44.

The housing uses a high pinion Dana 44 gear design that G2 says is meant to carry heavy loads which would bend a stock Dana 30. Stock Dana 44 ring and pinion sets, axle shafts and aftermarket lockers can be used with it, and the factory brakes are reused.

Key features

  • High pinion Dana 44 gear design
  • 4.56 gear ratio
  • Eaton E-Locker traction device
  • Accepts stock Dana 44 ring and pinions and axle shafts
  • 30-spline axle shaft spline
  • Reuses factory brakes

Choosing your gear setup

A rear axle’s gear ratio sets how many times the driveshaft turns for each turn of the wheels. A numerically higher ratio gives more pulling force at low speed, which suits slow trail work and larger tires, while highway cruising runs at higher engine speed. Because the ratio depends on the ring and pinion pair, gearing decisions and the shop setup go together.

A locker changes how the axle shares power between the wheels. An electrically actuated locker like the Eaton E-Locker engages both rear wheels when traction is lost, which helps on loose or uneven ground, and it can feel different on pavement during tight turns. Owners often replace the axle shafts, pinion seal and carrier bearings during the same job, so check them while the housing is open.

  • Match the gear ratio to tire size and how the vehicle is used
  • Inspect the pinion seal and carrier bearings before assembly
  • Confirm locker wiring and switch work after installation
  • Use fresh gear oil suited to a locking differential

Specifications

Brand G2 Axle and Gear
Part number C4TSR456EC0
UPC 631410133622
Housing type 97-06 Jeep TJ Dana 44
Position Rear
Gear ratio 4.56
Axle spline 30 splines
Wheel bolt pattern 5 on 4.5 inches
Traction device Eaton E-Locker
Brakes Reuse factory
Fitment Direct fit

Vehicle fitment

It fits 1997-2006 Jeep TJ and LJ Wranglers: Wrangler (TJ) 1997-2006 and Wrangler (LJ) 2004-2006.

Coverage is limited to those Jeep TJ and LJ Wrangler years and models. Verify that your vehicle’s year, model and trim match before you order.

What’s included

The assembly is a complete rear axle with a 4.56 ratio and Eaton E-Locker.

Not included: Ring and pinion sets and axle shafts are mentioned only as compatible parts, not as part of this assembly.

SKU: G/2C4TSR456EC0 Category:

Specification

Shipping weight 320.00 lbs
Package dimensions 65.00 × 42.00 × 20.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ) likely fits2004–2006All
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Eaton E-Locker version fit a 2001 Jeep Wrangler TJ?

Yes. 1997-2006 Jeep TJ and LJ Wranglers are covered, and a 2001 TJ falls within that range. Verify that your vehicle's year, model and trim match before you order.

What traction device and gear ratio does this CORE 44 have?

The traction device is an Eaton E-Locker and the gear ratio is 4.56. The housing is a high pinion Dana 44 design with 30 splines.

Can I use my own ring and pinion set with this housing?

Yes. The housing accepts stock Dana 44 ring and pinions, axle shafts and aftermarket lockers. A ring and pinion set is not part of this assembly.

What is the UPC for part C4TSR456EC0?

The UPC is 631410133622, listed by G2 Axle and Gear for this 4.56 ratio rear assembly with an Eaton E-Locker and reused factory brakes.

How should the rear axle be cared for after installing an E-Locker?

Check the gear oil level and condition after the first few trail outings, and look for leaks at the pinion and axle seals. Keep the locker wiring and connectors dry and secured so the locker keeps engaging reliably.

What signs show the rear axle needs service?

Whining or clunking under load, fluid seeping from the pinion or axle seals, and uneven tire wear can all point to gear or bearing trouble. A locker that stops engaging may also need its wiring or actuator checked.
