Overview

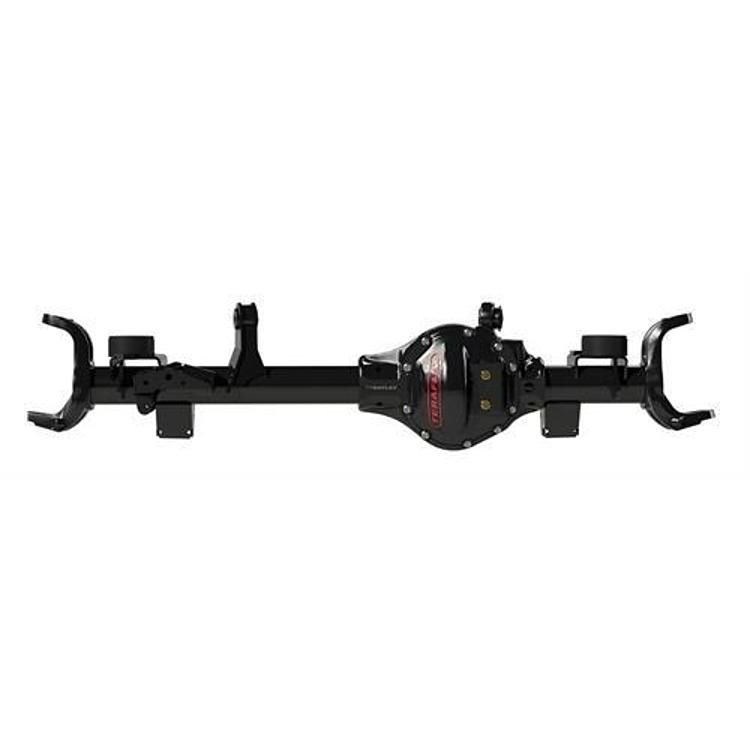

It is a front replacement axle assembly in a TF44 Dana 44 housing, with a standard trackbar mount. It is a direct fit for the 2007–2015 Jeep Wrangler (JK).
The assembly is a complete replacement unit for the front axle position, so the housing and the standard trackbar mount are both included under one part number. Check the trackbar mount against your existing setup before installing.
TeraFlex makes suspension, body protection, gearing and axle products for the Jeep Wrangler. This assembly is a front unit with a TF44 housing and a standard trackbar mount. Confirm the gear ratio, locker type and axle spline count against your existing setup before installing.
Key features
- Replacement axle assembly for the front of the vehicle
- TF44 Dana 44 housing
- Standard trackbar mount
- A direct fit for the Wrangler years shown.
Front axle swaps and the driveline
Replacing a front axle assembly affects more than the housing. The driveshaft angle, the brake lines, the ABS wiring and the steering linkage all relate to the axle position. Before installing, check the new assembly against the existing driveshaft and make sure the brake lines reach without tension through full suspension travel.
The trackbar mount sets the lateral position of the axle, so it should be inspected alongside the steering components. Fluid is also part of the job: the axle should be filled to the correct level before the first drive, and the fill and drain plugs should be checked for tightness.
- Check axle fluid level after installation
- Inspect the trackbar and tie rod ends
- Check the driveshaft angle and U-joints
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 3544204 |
| UPC | 843885028963 |
| Position | Front |
| Housing type | TF44 (Dana 44) |
| Trackbar mount | Standard |
| Fitment | Direct fit |
Vehicle fitment
It fits the 2007–2015 Jeep Wrangler (JK).
The 2016–2018 JK models and the TJ, LJ and JL Wranglers are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.
What’s included
The replacement front axle assembly with a standard trackbar mount.
