Universal joints for drive shafts and propeller shafts, made mostly by Dana Spicer, with Crown Automotive, Omix-Ada and Trail Gear options. Listings include 1310, 1330 and crossover series with details like cup size and overall width. Match series, snap ring style and measurements to your shaft, then open a product page for full details.
Drive Shaft Universal Joint
Showing 1–12 of 45 resultsSorted by popularity
-
Drive Shaft Universal Joint

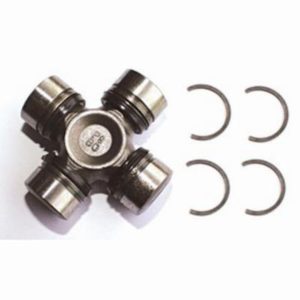

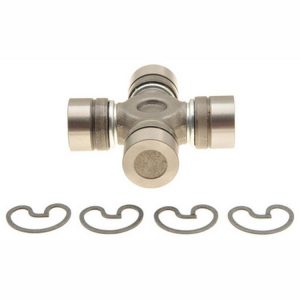

Universal Joint
- Dana Spicer universal joint, part number D/S5-811X, for the rear driveshaft at the rear axle
- Series 7290, with ISR span 2.625 and ISR cap diameter 1.125
- Fits Dodge B-series, Ram, Dakota and Durango, plus Jeep Cherokee XJ and Grand Cherokee ZJ
SKU: D/S5-811X -
-
-
Drive Shaft Universal Joint

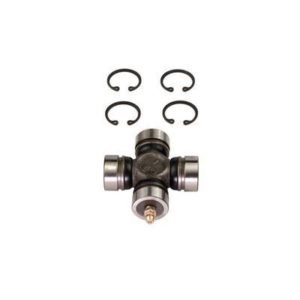

Dana Spicer U-Joint – 5-1503X
- Dana Spicer U-joint with a forged cross, lubeable and outside snap ring
- Front driveshaft at the front axle, bearing cap 0.984 inches
- Snap ring diameter 2.517 inches
- Fits 1979–2006 compact trucks and SUVs, including Chevrolet Tracker and Suzuki Samurai
SKU: D/S5-1503X -
Drive Shaft Universal Joint

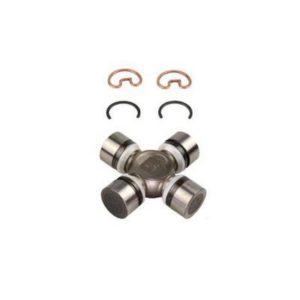

Dana Spicer Detroit 7260 to 1310 Series Cross Over U-Joint – 5-788X
- Dana Spicer Detroit 7260 to 1310 series cross over U-joint
- Converts a 7260 series joint to a 1310 series joint
- Non-greasable with inside and outside snap rings
- Front driveshaft at the front axle; fits Jeep XJ and ZJ and Dodge Dakota
SKU: D/S5-788X -
Drive Shaft Universal Joint

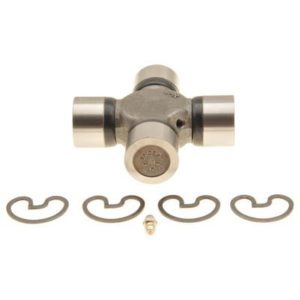

Dana Spicer 1480 Series U-Joint – 5-188X
- Dana Spicer 1480 series U-joint with a forged cross and grease fittings
- Rear driveshaft at the rear axle position
- Outside snap ring, 1.375-inch bearing cap diameter and 4.188-inch snap ring diameter
- Fits heavy-duty Chevrolet, GMC, Ford and Dodge 2500 and 3500 trucks and vans
SKU: D/S5-188X -
Drive Shaft Universal Joint

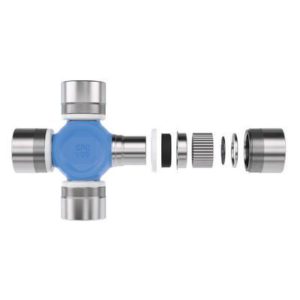

Dana Spicer 1310WJ Series Blue-Coated Universal Joint – 5-760XC
- Dana Spicer 1310 series blue-coated universal joint with SPL 30 and 1350 snap ring
- Blue coating on a non-greasable U-joint kit
- Front axle at the wheels, for many Ford, Dodge, GMC, Chevrolet and Jeep models
- Blue coating rated for 45 hours in a mud bath
SKU: D/S5-760XC -
-
What a U-joint does
A universal joint connects a driveshaft to the transmission, transfer case or axle while allowing the shaft to change angle as the suspension moves. A forged cross has four bearing caps that pivot, which lets torque pass through at an angle. They are wear items, and a worn joint can cause vibration, clunks on takeoff or a squeak.
Identifying the right joint
U-joints are sized by series and by measurements. The most important are cap diameter, overall width and the way the caps are retained.
- Series, such as Spicer 1310 or 1330, reflect size and torque capacity. A larger series carries more load.
- Cup size is the diameter of the bearing cap, like 1.062 inch in a listing.
- Outside-to-outside width is the distance across the caps, and it must match.
- Retention: outside snap rings sit outside the yoke, while inside snap rings and other designs fit different yokes.
- Greaseable or sealed: some have a grease fitting for maintenance.
Crossover joints
A crossover or conversion U-joint has two cup sizes so that a shaft from one series can connect to a yoke of another, as seen with a 1310 to 1350 listing. These are useful when mixing parts, but double-check both sizes before ordering. A driveshaft may need different joints at each end.
Strength and use
Larger tires, lockers, lift kits and extra torque increase stress on driveline parts. Many off-road builders choose a heavier series and a greaseable design, then maintain it often. Check the vehicle's specifications and compare joint series before upgrading. Remember that a stronger joint does not change the strength of the shaft or yoke.
Installation notes
- Mark the shaft position so balance is preserved when you reinstall.
- Press joints in with a vise or press tool, avoiding hammer blows on the caps.
- Seat snap rings fully and make sure the joint moves freely.
- Grease greaseable joints until fresh grease appears at the seals, and recheck intervals.
- Torque the driveshaft bolts to specification.
A bent or out-of-balance driveshaft can cause vibration even with new joints, so a driveline shop can help with diagnosis. Confirm fitment for your vehicle and axle before choosing.
Inspection, driveline angles and mistakes
To check a joint, shut off the engine, put the vehicle in park or in gear with the brake on, and try to twist and lift the driveshaft by hand. Any movement in the cap, a rusty brown stain at a seal or a stiff, notchy pivot means the joint is wearing out. Replace both joints on a shaft if one has failed from age, as the other is likely close behind.
- Do not hammer on the caps, which damages needle bearings.
- Do not reuse snap rings that are bent or loose in their grooves.
- Do not ignore a vibration, as a failing joint can break and let the shaft drop.
- Check slip yoke splines and grease them if the shaft has a fitting.
Lifted vehicles often have steeper joint angles. Joints work best when the angles at both ends of a shaft are close to equal and small. Large angles speed wear and may cause vibration, so some owners add a carrier bearing spacer, shims or a double-cardan shaft. Keep in mind that this category contains the joints only, so confirm yokes, flanges and shaft ends separately.
Related guides
- Driveline Vibration After a Lift: Transfer Case Drop or SYE?
Popular Drive Shaft Universal Joint brands
Drive Shaft Universal Joint FAQ
How do I know which U-joint I need?
Measure the cap diameter and the overall width, check the retention style, and match the series. Your service manual or the existing joint's markings can help. A mismatch can cause binding, so confirm all dimensions.
What are signs of a bad U-joint?
Common signs include a clunk when shifting between drive and reverse, a chirping noise at low speed, vibration that grows with speed and visible play when the shaft is moved by hand. Replace worn joints promptly.
Should I choose greaseable U-joints?
Greaseable joints let you refresh the lubricant, which can extend life if you maintain them. Sealed joints need no service but cannot be regreased. Many off-road owners prefer greaseable designs and check them often.
What is a crossover U-joint?
It is a joint with two different cap sizes, letting you connect a driveshaft end of one series to a yoke of another. Confirm both measurements and the retention style before ordering.
