Overview

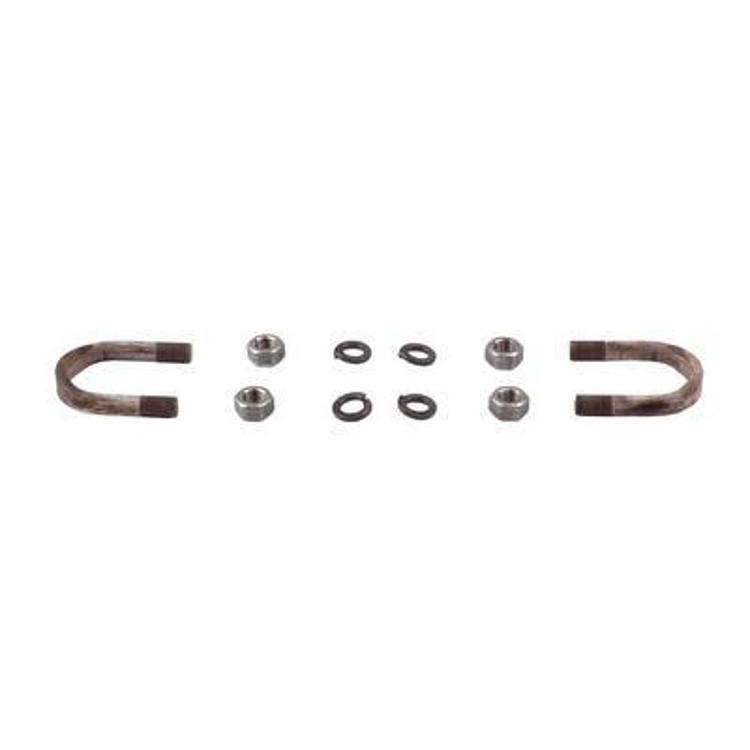

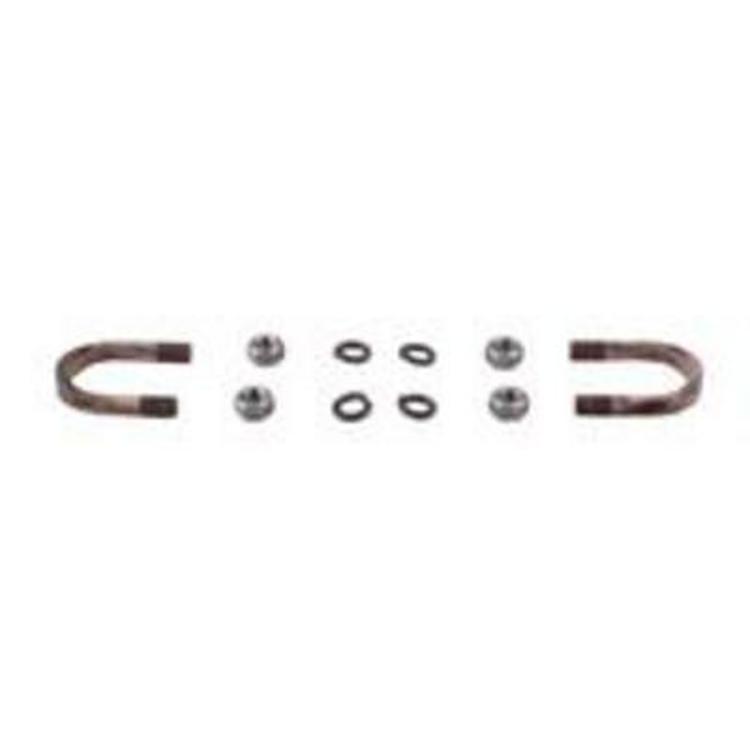

The Dana Spicer 3-94-28X is an MD U-bolt kit for 1480 and 1550 Series universal joints. It includes two U-bolts and four nuts, and part number 3-94-28X identifies it.
U-bolt kits clamp the universal joint cups to the yoke, so matching the joint series to your existing joint matters before any work starts. Use the part number and series together to confirm the match.
Checking U-bolt kit fit
U-bolt kits clamp the universal joint cups to the yoke, so the kit has to match the joint and yoke it is used on. Before installing, inspect the cups, the yoke ears and the bearing caps for wear or cracks. A loose clamp can let the joint move, which makes noise and can damage the driveline over time.
Clamp the U-bolts evenly and in sequence so the cups seat squarely. When replacing the U-bolts, use new nuts as well, since the threads on the old nuts can lose their grip. Check the clamping after the first few drives and recheck it at regular service intervals.
- Inspect cups, yoke ears and bearing caps
- Tighten U-bolt nuts evenly
- Use new nuts with new U-bolts
- Recheck clamping after the first drives
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 3-94-28X |
| UPC | 23913123055 |
| Kit type | MD U-bolt kit |
| Series | 1480/1550 Series U-joint |
| Included hardware | Two U-bolts and four nuts |
Vehicle fitment
Confirm the joint series on your driveshaft is 1480/1550 Series before ordering. Check the kit against your driveshaft rather than a vehicle.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Two U-bolts and four nuts.
Not included: the universal joint cross and yokes are not part of this U-bolt kit.
