Overview

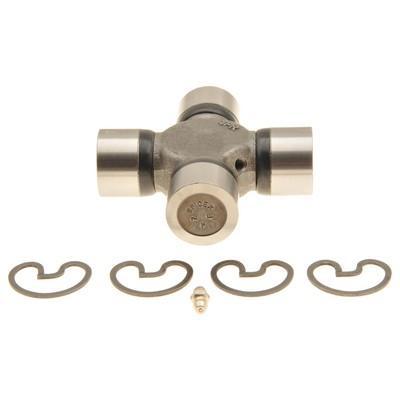

The Dana Spicer 5-188X is a 1480 series U-joint with a forged cross, an outside snap ring and a greasable bearing design. It is positioned at the rear driveshaft at the rear axle and is a direct fit for heavy-duty Chevrolet, GMC, Ford and Dodge trucks and vans.
The joint is made from selected materials and machined to high quality standards. Its bearing cap diameter is 1.375 inches and its snap ring diameter is 4.188 inches, so check those dimensions against your existing joint.
Key features
- Forged cross
- Greasable bearing design
- Outside snap ring
- Rear driveshaft at rear axle position
Signs the joint is worn
A U-joint carries torque from the transmission output to the axle pinion while letting the driveshaft change angle as the suspension moves. The cross turns on needle bearings held in cups, so wear shows up as play in the joint rather than as a steady noise. Before replacing a joint, look for a clunk when shifting between drive and reverse, vibration that rises with road speed, and grease leaking past the seals.
Joints are commonly replaced in pairs or during a full driveshaft service, because a worn companion joint puts extra load on a new one. When fitting outside snap rings, seat each ring fully in its groove and tap the cups squarely so the cross is not forced. Keep the yokes aligned on reassembly and recheck the joint after the first few trail runs.
- Check for play by moving the driveshaft by hand with the vehicle safely supported
- Inspect seals for grease leaks at each service
- Replace the companion joint when the set is apart
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | D/S5-188X |
| Series | 1480 |
| Cross | Forged |
| Lubrication | Greasable |
| Snap ring | Outside |
| Bearing cap diameter | 1.375 inches |
| Snap ring diameter | 4.188 inches |
| Position | Rear driveshaft at rear axle |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2011–2019 Chevrolet Express 2500 and the 2010–2019 Chevrolet Express 3500 vans, the 2001–2006 and 2014–2019 Chevrolet Silverado 2500 HD, the 2001–2006 Silverado 3500, the 2014–2019 Silverado 3500 HD, and the 2007 Silverado 2500 HD Classic and 3500 Classic.
The list also covers the 2009–2010 Dodge Ram 3500, the 2007–2019 Ford F-350 Super Duty, the 2011–2020 GMC Savana 2500 and 2010–2019 Savana 3500 vans, and the 2001–2006 and 2014–2018 GMC Sierra 2500 HD and 3500 models.
The list is for heavy-duty trucks and vans, and it runs by model year, so match the year and model of your vehicle before ordering. Confirm your vehicle’s year, model and trim before ordering.
What’s included
The U-joint with its outside snap ring.
