Brackets, Gussets & Tabs
Showing 49–60 of 80 resultsSorted by popularity
-
Axle Truss
Artec Industries Triangulated TJ GM 14 Bolt Swap Kit with Truss – TJ1413
- Fits 1997-2006 Jeep Wrangler (TJ) rear axles
- 14 bolt triangulated rear truss kit in 1/4 inch mild steel
- Triangulated upper control arms eliminate the track bar
- 2.0 inch high clearance, with a High-Clearance option available
- Includes brackets for control arms, shocks, anti-sway bar and coil springs
SKU: A/ITJ1413 -
Axle Truss

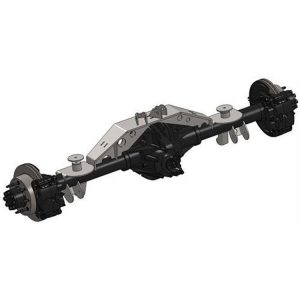

14-Bolt 1-Ton Swap Kit with Truss
- Fits 2004-2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon, and 1997-2006 Jeep Wrangler (TJ)
- Artec Industries 14-Bolt 1-Ton swap kit with truss for a GM 14-bolt 1-ton rear axle
- Triangulated upper control arms eliminate the trackbar
- 3/8″ thick truss top and 1/4″ thick gussets
- Steering ram mount not included
SKU: A/ITJ1410 -
Axle Truss

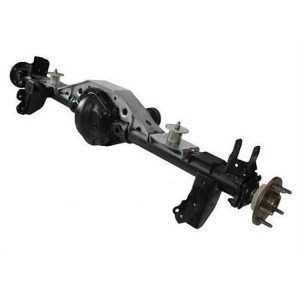

Artec Dana 44 Rear Axle Truss – JK4420
- Artec Industries JK4420 rear axle truss for the Dana 44 on the 2007–2016 Jeep Wrangler JK
- Spans about 26.5 inches between spring buckets, with a 3 link mounting surface
- 1/4 inch top plate with .10Ga. mild steel construction
- Truss only; mounting components are sourced separately
SKU: A/IJK4420 -
Axle Truss
Artec Dana 44 Front Axle Truss – JK4401
- Artec Industries JK4401 front axle truss for the Dana 44 on 2 and 4-door Jeep Wrangler JK models
- Fits 2007–2018 Jeep Wrangler JK with a front Dana 44 axle
- 1/4 inch mild steel truss top with 10Ga. gusseting for both axle tubes
- Designed for vehicles with at least minor lifts; check clearances if unlifted
- Installation requires welding to the cast center section
SKU: A/IJK4401 -
-
Axle Truss
G2 Dana 44 Front Axle Truss – 68-2051
- Front Dana 44 axle truss and armor system for the Jeep Wrangler JK
- Heavy-duty steel: 1/4 inch main components, 1/8 inch reinforcement plates
- Includes the axle truss, lower control arm skids, inner C gussets and track bar bracket
- Welding required, including to the cast center section
SKU: G/268-2051 -
Axle Truss
G2 Dana 44 Front Axle Top Truss – 68-2051-1
- Front Dana 44 top truss for the Jeep Wrangler JK, 2007-2018
- Heavy-duty steel with 1/4-inch main components and 1/8-inch reinforcement plates
- Welding required, including to the cast center section
- Two-door and four-door JK models for US-spec vehicles
- Part number 68-2051-1, UPC 631410121209
SKU: G/268-2051-1 -
Axle Truss
G2 Dana 30 Front Axle Top Truss – 68-2050-1
- Top truss for the Dana 30 front axle on 2007-2018 Jeep Wrangler JK
- Heavy-duty steel: 1/4 inch main components, 1/8 inch reinforcement plates
- Unpainted; welding required, including to the cast center section
- Fits 2-door and 4-door models; includes top truss only
SKU: G/268-2050-1 -
Axle Truss
G2 Rear Dana 44 Truss – 68-2052-1
- G2 rear Dana 44 axle truss, part 68-2052-1, for the Jeep JK
- Heavy-duty steel, 1/4 inch components and 1/8 inch plates
- Intended for JKs with at least some lift; check clearance on lower-lift vehicles
- Welding required; upper link mount sold separately
SKU: G/268-2052-1 -
-
Parts for fabricators
These parts are building blocks for suspension and axle work. They are meant for welding or bolting into a project by people who understand the loads involved, such as when building a link suspension, swapping an axle or strengthening a weak point. Many are weld-on, so treat them as structural components.
What the subcategories cover
- Axle trusses: a steel brace that welds along the axle tube to resist bending, popular on Dana 30 and Dana 44 axles under larger tires.
- Axle brackets: link, track bar and Panhard mounts that weld to the axle housing.
- Ball gussets: reinforce the area around the steering knuckle ball joint.
- Shock and coilover mounts: locate shocks at the axle or frame.
- Spring perches and control arm mounts: hold leaf springs or arms in position.
- Tabs: laser-cut steel pieces for building custom mounts.
How to choose
First identify the axle or frame that the part must fit, such as Dana 30, Dana 44, Dana 60 or another axle, and whether it is a front or rear application. Tube diameter, bracket thickness and bolt hole size must match your project. Many mounts are listed as universal but still require careful measuring. Truss kits are often vehicle specific and may include axle swap hardware, so check what is included.
Look at the material and thickness, as thicker plate adds strength and weight. Check that the part is made from weldable steel and whether it arrives bare or coated. Coatings must be removed at weld areas.
Welding and installation
Axle and suspension welds carry safety-critical loads. Proper preparation, correct filler material, penetration and heat control matter, and a poor weld can fail without warning. If you do not have welding experience, hire a qualified fabricator. Measure geometry carefully, including pinion angle, link angles, track bar level and axle centering, before final welding. Avoid overheating axle tubes, since that can warp the housing.
Fitment and checks
After installation, inspect welds and bolts regularly, especially after hard trail use. Confirm fitment for your exact vehicle and axle, and follow the manufacturer's specifications and instructions. Alignment and driveline checks are recommended after changes.
Planning before you cut or weld
Good fabrication starts with measurement and a plan. Sketch the suspension geometry, including link lengths, angles and instant center, before locating any bracket. Use jack stands, a level surface and tools such as a straightedge, a tape measure and an angle finder to verify axle position. Tack weld parts first and recheck everything before final welds, because it is much easier to move a tack than a finished weld. Clean paint and coatings from the weld area, wear proper eye and respiratory protection, and keep a fire extinguisher nearby. Consider stress risers too: avoid abrupt ends on gussets, round the corners and keep welds away from high-flex areas. When the work is complete, inspect the welds, paint the bare metal to prevent rust and recheck bolts after the first trail run.
Common mistakes include welding without measuring first, using the wrong filler for the base steel, and trusting a bracket's appearance rather than its thickness. Check that the plate thickness suits the load, and avoid placing welds on the tension side of thin tubing without reinforcement.
Popular Brackets, Gussets & Tabs brands
- Artec Industries (33)
- Rubicon Express (15)
- G2 Axle and Gear (10)
- Trail Gear (6)
- TeraFlex (5)
- Blue Torch Fabworks (3)
- Rock Krawler (2)
- Low Range Offroad (1)
- Crown Automotive (1)
- Mountain Off Road Enterprises (1)
- Rugged Ridge (1)
- RT Off-Road (1)
Shop Brackets, Gussets & Tabs by type
- Axle Truss (43)
- Control Arm Mount (15)
- Axle Bracket (11)
- Axle Bracket Kits (5)
- Axle Ball Gussets (1)
- Shock Mount Brackets (1)
Brackets, Gussets & Tabs FAQ
What does an axle truss do?
A truss is a steel brace welded along the axle tube to resist bending and keep the housing straight. It is common on larger-tire builds. Fit depends on the axle model, so confirm the compatible axle on the product page.
Do I need to weld these brackets?
Many brackets and gussets are weld-on, while some mounts and kits bolt in. Check the product description. For safety-critical axle and suspension welds, use an experienced welder or professional fabricator.
What is a ball gusset?
A ball gusset is a reinforcing piece around the steering knuckle ball joint area on some axles. It helps strengthen the area, particularly with large tires or hard use. It must match your axle type.
What are laser-cut tabs used for?
Tabs are precision-cut steel pieces that fabricators use to make custom mounts, such as for links, shocks or brackets. Check the material thickness and the hole sizes and make sure they suit the load.
