Artec Industries Triangulated TJ GM 14 Bolt Swap Kit with Truss – TJ1413

Artec Industries

Shop Jeep Wrangler TJ Axle Truss on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1997-2006 Jeep Wrangler (TJ) rear axles
  • 14 bolt triangulated rear truss kit in 1/4 inch mild steel
  • Triangulated upper control arms eliminate the track bar
  • 2.0 inch high clearance, with a High-Clearance option available
  • Includes brackets for control arms, shocks, anti-sway bar and coil springs

Description

Overview

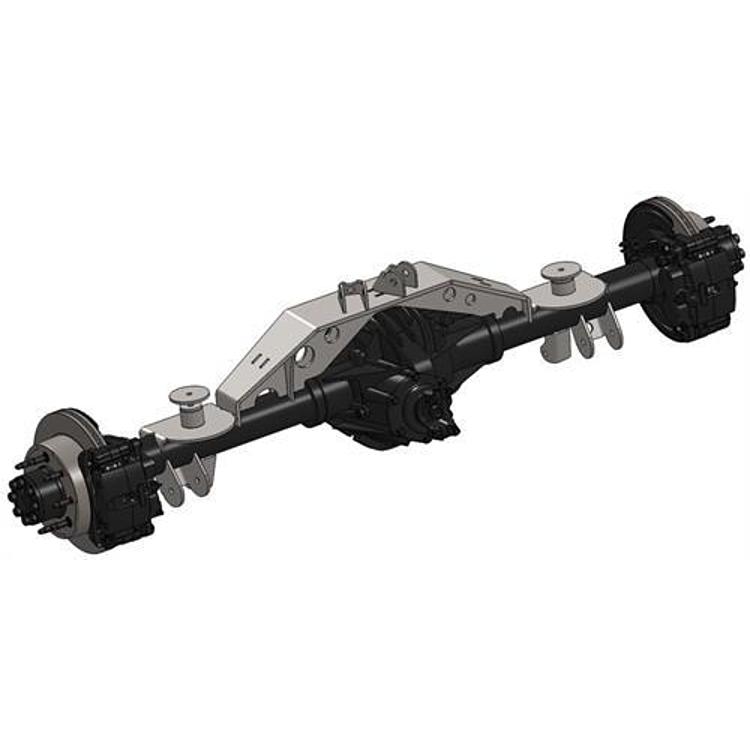

The Artec Industries TJ1413 is a 14 bolt axle swap kit with truss for the 1997–2006 Jeep Wrangler (TJ). It combines a 1/4 inch mild steel truss with brackets that mount the factory coil, anti-sway bar, lower control arm and shock locations, and it triangulates the upper control arms so a track bar, also called a Panhard bar, is not needed.

The kit suits owners rebuilding a Wrangler TJ rear axle who want a reinforced housing and a cleaner upper link layout. Artec Industries also offers a High-Clearance version, which raises the lower control arm and shock brackets above the bottom of the axle tube and places the shock bolts perpendicular to the axle tube for more rotation without binding.

Key features

  • Triangulated upper control arm layout that removes the need for a track bar
  • 1/4 inch mild steel truss and brackets, precision CNC cut and bent for fitment
  • Truss reinforced with interlocked 1/4 inch gussets for strength and simpler assembly
  • Low-profile design listed at 2.0 inch high clearance
  • High-Clearance option with flat lower control arm brackets and shock mounts to reduce rock damage
  • High-Clearance shock mounts flip to sit perpendicular to the axle tube
  • Brackets for upper and lower control arms, shock mounts, anti-sway bar mounts and coil spring mounts

Dry fit and welding order

A triangulated rear swap is mostly a fit-up job. Set the axle under the vehicle, position the truss and brackets, and check each control arm and shock mount against the frame before any weld is made. Small errors at this stage become large alignment problems later, so take the time to dry fit everything first and confirm clearances at full suspension travel.

Welding near the axle housing heats the tubes and can damage nearby lines, so protect or relocate brake lines and any other lines first. Work in short passes and let the axle cool between them. After the swap, re-check the brackets and welds after the first few trail runs, because new loads often reveal a bracket that needs more support.

  • Dry fit the full assembly before welding
  • Protect brake and fuel lines
  • Recheck welds after early trail runs

Specifications

Brand Artec Industries
Part number TJ1413
UPC 816791026385
Axle type 14 bolt
Axle location Rear axle
Truss and bracket material 1/4 inch mild steel
Gusset thickness 1/4 inch, interlocked
Clearance 2.0 inch high clearance
Upper control arm layout Triangulated, replaces track bar
Fitment type Direct fit

Vehicle fitment

It fits the 1997-2006 Jeep Wrangler (TJ), including the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims. It is a rear axle kit, not a front axle kit.

It is not made for the 2007-2018 Wrangler JK, the 2018-2022 Wrangler JL or the 2004-2006 Wrangler Unlimited (LJ), and it is not made for Cherokee or Grand Cherokee axles. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The kit requires welding and fabrication skills, so it is not a bolt-on install. Dry fit the truss and brackets on the axle before final welding, and protect or relocate brake lines and other nearby lines before welding near the axle housing.

What’s included

The kit includes the triangulated 14 bolt truss and all brackets needed for a complete axle swap: upper and lower control arm mounts, shock mounts, anti-sway bar mounts and coil spring mounts.

Not included: the axle assembly, control arms, shock absorbers, coil springs and anti-sway bar, which must be sourced separately.

SKU: A/ITJ1413 Category:

Specification

Shipping weight 45.00 lbs
Package dimensions 32.00 × 8.00 × 8.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Artec TJ1413 fit a 1997–2006 Jeep Wrangler TJ?

Yes. It fits the 1997-2006 Jeep Wrangler (TJ), including the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims. It is a rear axle kit. Confirm your vehicle's year, model and trim before ordering.

What is the part number and brand of this axle truss kit?

The part number is TJ1413 from Artec Industries, with UPC 816791026385. It is a 14 bolt triangulated axle truss kit with brackets, made of 1/4 inch mild steel, for the rear axle of a Wrangler TJ.

Does the TJ1413 remove the need for a track bar?

Yes. The triangulated upper control arms eliminate the track bar, also called a Panhard bar, so the kit's upper control arm mounts are designed for that layout instead of a track bar mount.

What comes with the TJ1413 kit?

The kit includes the truss and all brackets needed for a complete 14 bolt axle swap, including upper and lower control arm mounts, shock mounts, anti-sway bar mounts and coil spring mounts. The axle, control arms, shocks and springs are not included.

Should brake lines be moved before welding?

Protect or relocate brake lines and other nearby lines before welding near the axle housing. Heat and weld spatter can damage lines, so plan that work before final welding.
