Artec Dana 44 Front Axle Truss – JK4401

Artec Industries

Shop Jeep Wrangler JK Axle Truss on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Artec Industries JK4401 front axle truss for the Dana 44 on 2 and 4-door Jeep Wrangler JK models
  • Fits 2007–2018 Jeep Wrangler JK with a front Dana 44 axle
  • 1/4 inch mild steel truss top with 10Ga. gusseting for both axle tubes
  • Designed for vehicles with at least minor lifts; check clearances if unlifted
  • Installation requires welding to the cast center section

Description

Overview

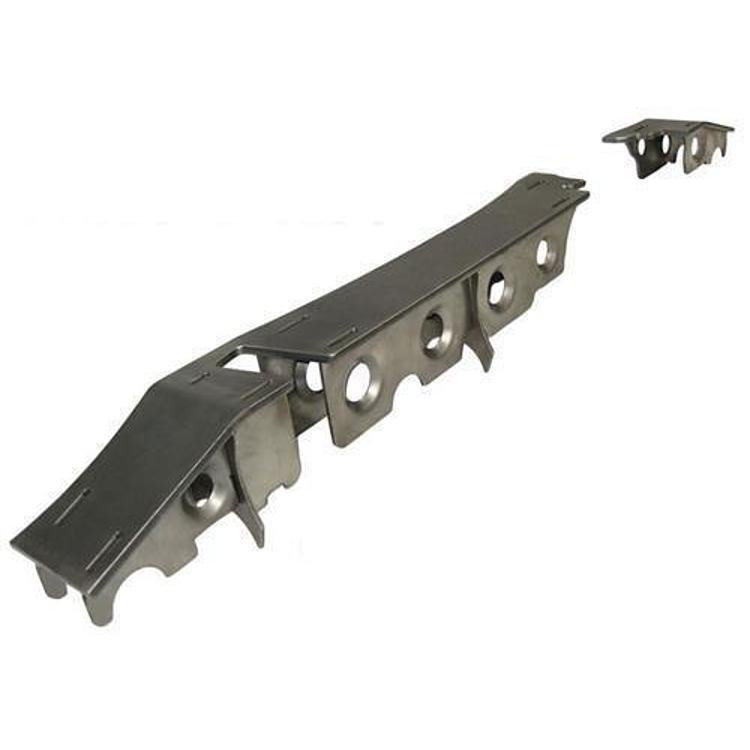

The Artec Industries JK4401 is a Dana 44 front axle truss for 2-door and 4-door Jeep Wrangler JK models. It is designed to reinforce the front axle housing and is built from heavy duty, lightweight truss components.

Its 1/4 inch thick truss top and 10Ga. gussets are designed to brace both axle tubes, not just the long tube. The kit suits vehicles with at least minor lifts. On an unlifted vehicle, check clearances before installing. It has not been tested on non-US JKs with diesel engines or right hand drive axles.

Key features

  • Braces both front axle tubes rather than only the long tube.
  • Truss spans the long side and the short side of the axle.
  • Precision cut and formed components, which the brand says make installation straightforward.
  • Mild steel construction with a 1/4 inch top and 10Ga. gusseting.
  • Designed for vehicles with at least minor lifts.
  • Built for 2 and 4-door JK models with a Dana 44 front axle.

Before you weld

Good results start with an axle that is sound before any bracing goes on. Inspect the housing for cracks, bent tubes and old weld repairs, and check the center section for damage. A truss cannot correct a bent axle, so any problem found at this stage should be addressed first.

Set the truss in place and confirm clearance to brake lines, the differential cover and the steering components before welding. Keep heat away from the cast center section where possible, and let the assembly cool before checking alignment. Recheck the fit after cooling, since welds can shift the position slightly.

  • Inspect the axle housing for cracks before fitting
  • Confirm brake line and steering clearance first
  • Let the assembly cool before final alignment checks

Specifications

Brand Artec Industries
Part number JK4401
UPC 816791021694
Axle type Dana 44
Axle location Front axle
Fitment type Direct fit
Steering ram mount Without steering ram mount
Material Mild steel
Truss top thickness 1/4 inch
Gusset gauge 10Ga.
Models 2 and 4-door

Vehicle fitment

It is a direct fit for the 2007–2018 Jeep Wrangler JK with a front Dana 44 axle on 2-door and 4-door models. It does not include a steering ram mount.

Not covered: Dana 44 rear axles, and non-US JKs with diesel engines or right hand drive axles, which the brand has not tested. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires welding to the cast center section, so general welding and fabrication skills are needed. The precision cut and formed components help the fit, but a poorly made weld on the cast center section can compromise the truss. An experienced fabricator should do that work.

What’s included

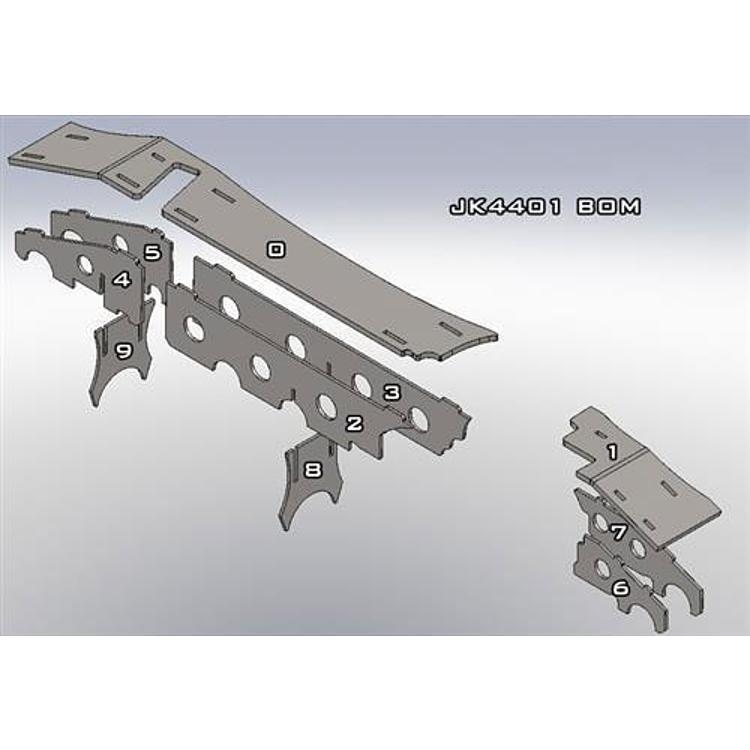

The kit is the front axle truss and armor, made from cut and formed components.

Not included: steering ram mount.

SKU: A/IJK4401 Category:

Specification

Shipping weight 12.00 lbs
Package dimensions 18.00 × 6.00 × 6.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Artec JK4401 fit a Jeep Wrangler JK with a Dana 44 front axle?

Yes, for the front Dana 44 axle on 2-door and 4-door Wrangler JK models. It is a direct fit, but it has not been tested on non-US JKs with diesel engines or right hand drive axles, so check those cases before buying.

What is the Artec JK4401 made from?

It is made from mild steel, with a 1/4 inch truss top and 10Ga. gusseting. The truss spans the long and short sides of the axle and braces both axle tubes.

Is the Artec JK4401 a bolt-on install?

No. Installation requires welding to the cast center section, so general welding and fabrication skills are needed. The precision cut and formed parts help the fit, but welding is part of the job.

What are the part number and UPC for the Artec Dana 44 front truss?

The part number is JK4401 and the UPC is 816791021694. The kit is made by Artec Industries and comes without a steering ram mount.

How do I check a truss is square before welding?

Set the axle on level stands and measure from fixed points on both tubes before tacking anything. Clamp the truss in place and confirm it clears the differential, brakes and steering parts. Only then weld, working in short passes to limit heat.

Does a truss replace the need for stronger gears or axle shafts?

No. A truss braces the housing but does not change gearing, axle shafts or bearings. Inspect those parts when the truss is installed, since added strength can show weakness elsewhere in the drivetrain.
