G2 Rear Dana 44 Coil Buckets – 68-2052-3

G2 Axle and Gear

Shop Jeep Wrangler JK Axle Truss on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 rear Dana 44 coil buckets, part 68-2052-3
  • Heavy-duty steel, 1/4 inch main components and 1/8 inch reinforcement
  • Designed for the G2 rear axle truss and armor system
  • Welding required; unpainted

Description

Overview

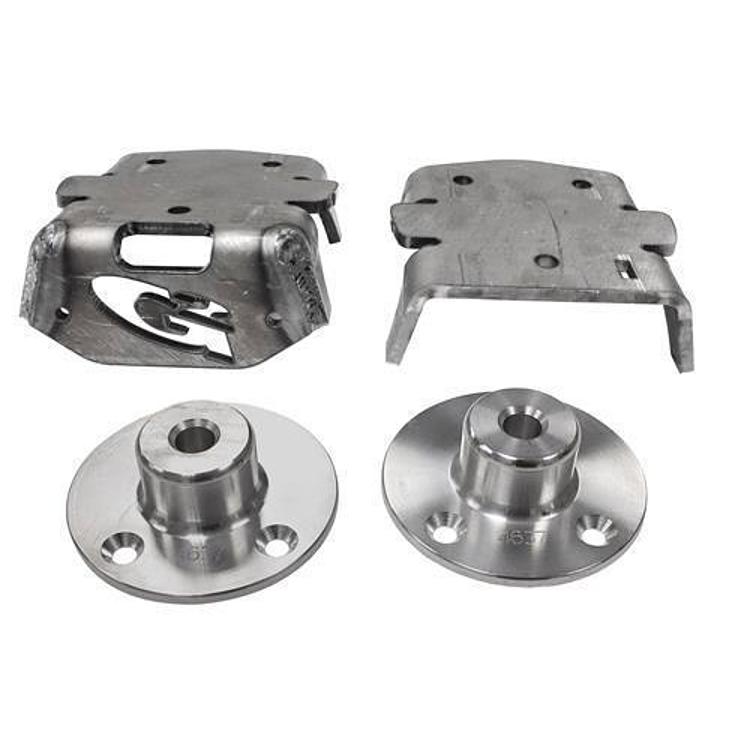

The G2 Rear Dana 44 Coil Buckets, part 68-2052-3, are heavy-duty steel coil buckets for the rear Dana 44 on a JK Wrangler. G2 says they are designed to be used with its rear axle truss and armor system.

The buckets are made from 1/4 inch thick main components and 1/8 inch thick reinforcement plates, and each part is laser cut for installation. Welding is required, and the manufacturer strongly recommends professional welding skills.

Key features

  • Heavy-duty steel construction
  • 1/4 inch main components and 1/8 inch reinforcement plates
  • Laser cut for installation
  • Unpainted
  • Designed for the G2 rear axle truss system

Choosing the right setup

Coil buckets are the points where the springs sit, so their placement affects ride height, spring alignment and how the axle moves. They work as part of a system with the truss and armor, so the buckets should be matched to the truss they are welded to rather than chosen on their own. Buckets set at the wrong angle put side load on the spring, which can wear coils and mounts faster than expected.

Before ordering, confirm the truss, upper link mount and any steering parts you plan to run, since the buckets are sold without them. Plan the weld sequence with the truss in place, and keep heat away from the armor to limit warp. Coat the steel after welding, because the buckets ship unpainted.

  • Match the buckets to the truss they will be welded to
  • Plan the weld sequence before cutting
  • Check spring seat height at ride height after fitting
  • Coat the steel after welding

Specifications

Brand G2 Axle and Gear
Part number 68-2052-3
UPC 631410123036
Axle Rear Dana 44
Fitment Direct fit; without steering ram mount
Finish Unpainted
Used with G2 rear axle truss, part 68-2052-1

Vehicle fitment

These coil buckets fit the Jeep Wrangler JK, 2007 to 2018, with a rear Dana 44 axle, in two-door and four-door models.

The Wrangler JL, the TJ and LJ generations, and the Gladiator are not covered for this part.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Welding is required, and the buckets are meant to be welded as part of the truss install, so plan the weld sequence before cutting.

What’s included

The coil buckets.

Not included: the axle truss assembly and the upper link mount, which are sold separately.

SKU: G/268-2052-3 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 9.00 × 9.00 × 5.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Do the G2 68-2052-3 coil buckets fit a JK Wrangler?

Yes. They fit the Jeep Wrangler JK, 2007 to 2018, with a rear Dana 44 axle, in two-door and four-door models, and they work with the G2 rear axle truss.

Do these buckets need welding?

Yes. Welding is required, and professional welding skills are recommended for installing these heavy-duty steel coil buckets on the rear axle.

Are the coil buckets sold with the truss?

No. The axle truss assembly is sold separately, so the buckets alone do not complete the system, and the upper link mount is also a separate purchase.

What should I check before welding the buckets?

Confirm the buckets sit square to the truss, mark their position, and check the spring seat height at ride height. Tack weld first, recheck alignment, then weld the full seams, since heat from thick steel can pull the parts out of line.

Do the buckets need a protective coating?

Yes, they ship unpainted, so prime and paint the steel after welding and before installing the springs. Grind weld spatter and clean the surfaces first so the coating bonds well and does not peel at the seams.
