Artec Front Axle Truss for Rock Krawler 3 Link – JK3002

Artec Industries

Shop Jeep Wrangler JK Axle Truss on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Artec front axle truss for Rock Krawler 3-link, part JK3002
  • Fits 2007-2016 Jeep Wrangler JK models
  • 1/4 inch and 10 gauge mild steel, CNC cut
  • Spans the entire length of the axle
  • Built for 2- and 4-door models

Description

Overview

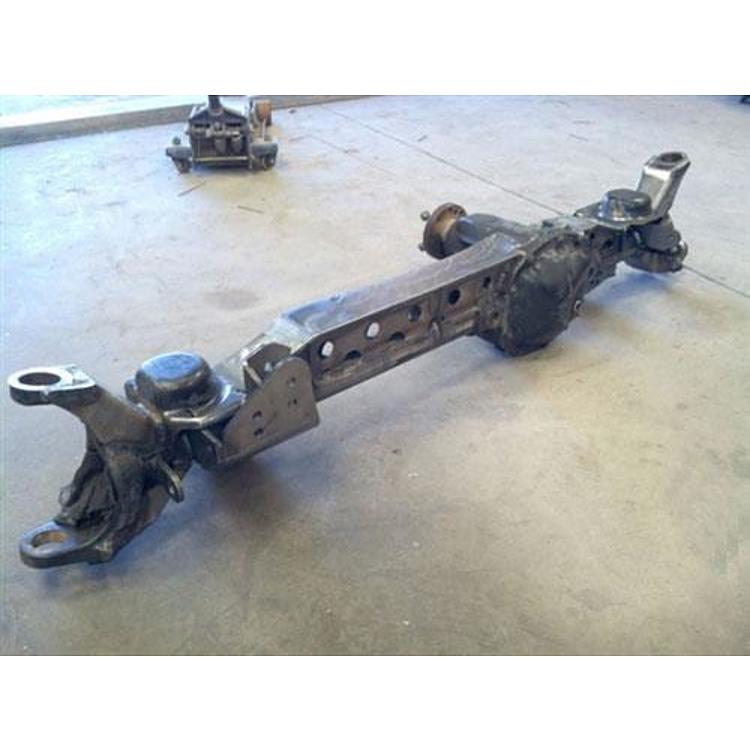

The Artec Front Axle Truss for Rock Krawler 3 Link, part JK3002, reinforces the front axle of a 2007-2016 Jeep Wrangler JK. It is built for a front Dana 30 or 44 JK axle.

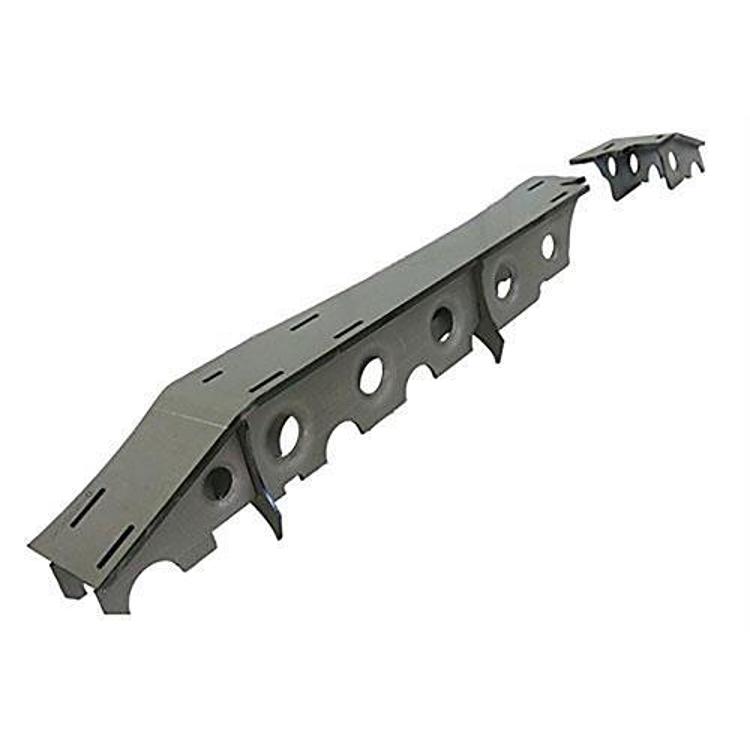

The truss is a heavy duty, light weight system with a 1/4-inch thick top and 10Ga. gusseting. The gusseting strengthens both axle tubes, not just the long tube, and the parts are CNC cut so the truss spans the entire length of the axle.

Key features

  • 1/4 inch and 10 gauge mild steel construction
  • Truss top with 10Ga. gusseting for both axle tubes
  • CNC cut to span the entire length of the axle
  • Designed for 2- and 4-door models
  • Functions as a truss system and armor for the front axle
  • Precision cut and formed components

Welding and fabrication notes

A truss only works as well as its welds. Plan the fit-up so the top and gusseting sit tight against the axle tubes, and clamp the parts before tacking. Stitch the welds in short sections to limit heat distortion, then check the housing for distortion before moving on.

Front axles carry a lot of load through the steering and drivetrain, so mounting points need careful layout. Position the truss so it does not interfere with the differential cover, brake lines or axle breather. Measure clearances at full steering lock and full suspension travel before the final welds.

Post-weld inspection is worth the time. Look for cracks at the ends of each weld, especially where the truss meets the tubes, and recheck the work after the first few trail runs. Keep a record of torque values and weld locations so future repairs are straightforward.

Specifications

Brand Artec Industries
Part number JK3002
UPC 816791021663
Axle type Dana 30 or Dana 44 JK front axle
Axle location Front axle
Material 1/4 inch and 10 gauge mild steel
Steering ram mount Without steering ram mount
Body style 2- and 4-door models
Fitment Direct fit

Vehicle fitment

Fits the 2007-2016 Jeep Wrangler (JK), in trims including 70th Anniversary, Rubicon, Sahara, Sport, Sport S, X, and the Unlimited versions of those trims.

Close models such as the 2018-2022 Wrangler JL and the earlier TJ and LJ are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The truss requires general welding and fabrication to fit. This version is without a steering ram mount, so plan the steering setup around that.

What’s included

Check the package contents against your installation before starting, including bushings, joints and fasteners.

Not included: Confirm joints, bushings and hardware for your build before starting.

SKU: A/IJK3002 Category:

Specification

Shipping weight 12.00 lbs
Package dimensions 18.00 × 6.00 × 6.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201670th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JK3002 fit a 2010 Jeep Wrangler?

The listed fitment is the 2007-2016 Jeep Wrangler JK, so a 2010 JK falls within that range. Only the JK generation is listed, so JL and earlier TJ or LJ models are not covered by this fitment.

Is this a Dana 30 or Dana 44 truss?

It is a Dana 30 truss, and it is also built for a Dana 44 JK front axle. Check your axle housing before installing to confirm which axle you run.

Does the truss include a steering ram mount?

No. This version is without a steering ram mount. If your build needs one, plan that part separately, since this truss does not come with one.

What steel is it made of?

It is made of 1/4 inch and 10 gauge mild steel, CNC cut to span the entire length of the axle. It works as a truss system and armor for the front axle.

Does the truss need to be welded in place?

Yes. General welding and fabrication are needed to fit the truss, so plan for a qualified welder or prepared fabrication work. Check alignment with the axle before final welds and recheck the gusseted joints after the first trail runs.

How should the steering setup be planned?

Plan the steering around the lack of a ram mount. Measure your steering linkage and tie rod positions before welding, and check clearance around the axle and truss through full steering travel.
