Artec Dana 44 Rear Axle Truss – JK4420

Artec Industries

Shop Jeep Wrangler JK Axle Truss on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Artec Industries JK4420 rear axle truss for the Dana 44 on the 2007–2016 Jeep Wrangler JK
  • Spans about 26.5 inches between spring buckets, with a 3 link mounting surface
  • 1/4 inch top plate with .10Ga. mild steel construction
  • Truss only; mounting components are sourced separately

Description

Overview

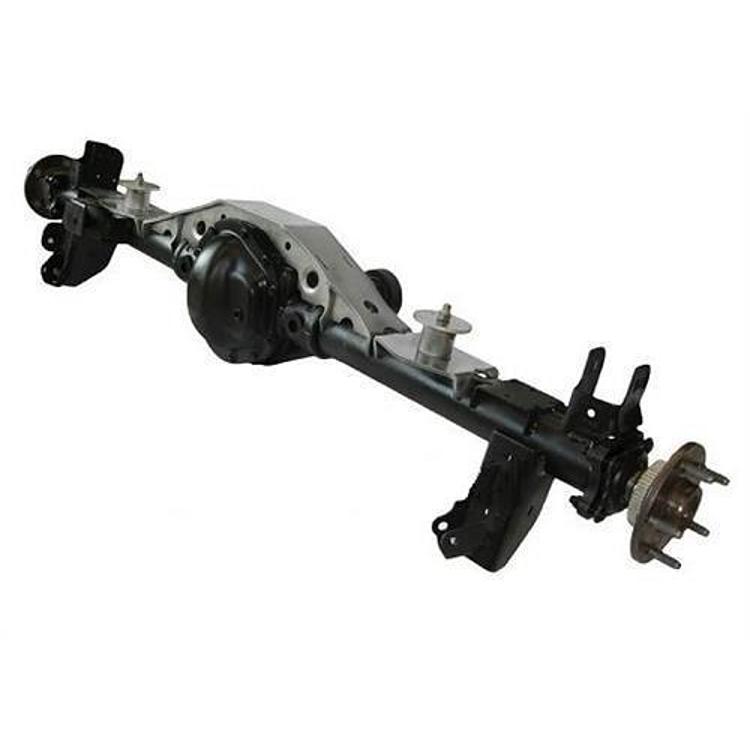

The Artec Industries JK4420 is a rear Dana 44 axle truss for the 2007–2016 Jeep Wrangler JK. It reinforces the rear axle and provides a low profile mounting surface for a 3 link suspension. It is designed specifically for the JK 44 rear axle and spans about 26.5 inches across the center of the axle, between the spring buckets.

The truss has a 1/4 inch top plate and .10Ga. mild steel construction. It is a heavy duty, lightweight design, and the top plate strengthens the axle while providing the link mounting surface. It is the truss only, so other mounting components must be sourced separately.

Key features

  • Designed specifically for the Dana 44 rear axle on the JK.
  • Low profile link mounting surface for a 3 link suspension.
  • Truss top spans about 26.5 inches across the center of the axle.
  • 1/4 inch top plate with .10Ga. mild steel construction.
  • Reinforces the axle and the link mounts together.
  • Truss only; no other parts are included.

Link geometry and setup

A truss that carries link mounts changes how the rear axle sits under the frame. Link angles, pinion angle and axle position all interact, so plan the layout before welding anything. Mark the intended mounting points, then check that the links can move freely through their full travel without hitting the truss or the spring area.

Once the truss is in place, verify the geometry with the links connected and the axle under load. Small changes at the mounts can alter pinion angle and axle wrap, which affects vibration and wear. Recheck the driveline after the first few drives, since settling can shift the setup slightly.

  • Mark link mounting points before welding
  • Check link movement through full travel
  • Recheck driveline angles after the first drives

Specifications

Brand Artec Industries
Part number JK4420
UPC 816791021786
Axle type Dana 44
Axle location Rear axle
Fitment type Direct fit
Steering ram mount Without steering ram mount
Material Mild steel
Top plate thickness 1/4 inch
Gauge .10Ga.
Span between spring buckets 26.5 inch
Centered differential housing approx. 16. 375 inches
Axle tube diameter 3.25 inches

Vehicle fitment

The manufacturer fitment list covers the 2007–2016 Jeep Wrangler (JK) in 2-door trims 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X, and in Unlimited 4-door versions of those trims.

The list ends at 2016, so 2017–2018 Wrangler JK models are not shown. Other centered rear Dana 44 axles need trimming, so this truss is not a direct match for them. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Other centered rear Dana 44 axles need trimming, so measure the centered differential housing (16. 375 inches) and the axle tube diameter (3.25 inches) before ordering or cutting. The kit calls for general welding and fabrication skills, so plan time for welding and fitting.

What’s included

The rear axle truss only. Artec Industries lists no other components in the kit.

Not included: other suspension parts and mounting hardware.

SKU: A/IJK4420 Category:

Specification

Shipping weight 20.00 lbs
Package dimensions 18.00 × 6.00 × 6.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201670th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Artec JK4420 fit a 2007 to 2016 Jeep Wrangler JK?

Yes, the manufacturer fitment list includes the 2007–2016 Jeep Wrangler JK in several 2-door trims and Unlimited versions, including Rubicon, Sahara, Sport and X. Check your trim before ordering, since the list does not cover 2017 or 2018 models.

Does this rear truss work with a 3 link suspension?

Yes, it provides a link mounting surface for a 3 link suspension, with a low profile surface built into the truss. It spans about 26.5 inches across the center of the axle between the spring buckets.

Can the JK4420 be used on other Dana 44 rear axles?

Only with trimming. The JK4420 is designed specifically for the JK 44 axle, and other centered rear Dana 44 axles need trimming. Measure the centered housing and axle tube before ordering or cutting.

What are the part number and UPC for the Artec Dana 44 rear truss?

The part number is JK4420 and the UPC is 816791021786. The product is the truss only, with no steering ram mount included.

How do I know if the rear axle needs bracing?

Look for flex in the housing under load, cracks or fatigue at weld points, and a sagging or bent axle tube after hard use. A truss supports the housing but does not repair damage, so inspect the axle first.

Do I need a driveline check after adding link mounts?

Usually yes. Changing link mounting points can alter pinion angle and axle position. Have the driveline angle checked once the links and truss are in place, since the change can affect vibration and wear.
