Overview

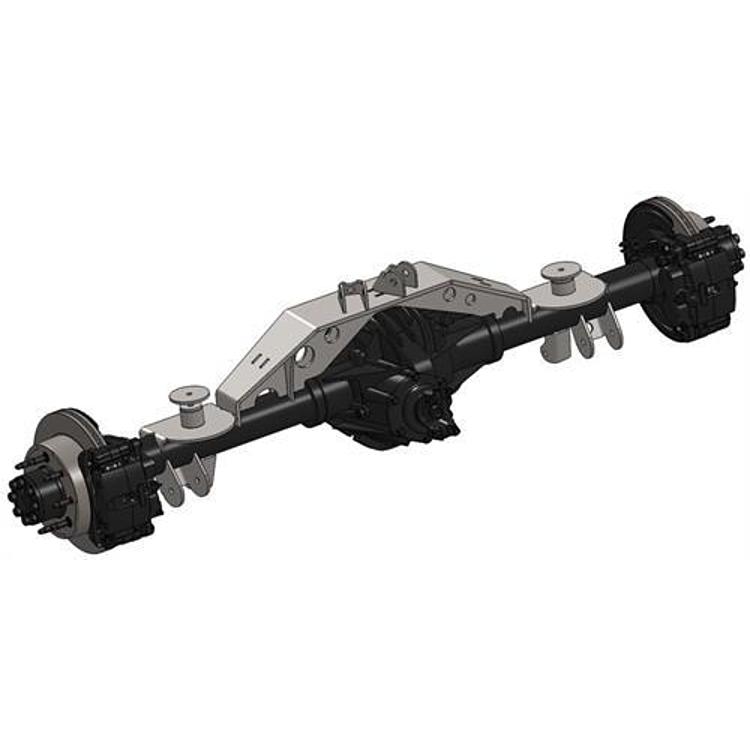

The Artec Industries 14-Bolt 1-Ton Swap Kit with Truss, part number TJ1410, is a triangulated axle swap kit for a GM 14-bolt 1-ton rear axle. It fits the Jeep Wrangler LJ and TJ, and it provides the OEM coil, lower control arm and shock locations on the axle.
The 3/8″ thick truss top and 1/4″ thick truss gussets are designed to take serious abuse and reinforce the entire axle. The upper control arms are triangulated, which eliminates the need for a trackbar. Artec also offers a high clearance version that raises the lower control arm and shock brackets above the bottom of the axle tube.
Key features
- Triangulated upper control arm mounts eliminate the trackbar
- High clearance shock mounts flip bolt orientation to perpendicular to the axle tube, giving more rotation without binding
- Includes upper and lower control arm mounts, shock mounts and coil spring mounts
- The truss offers strength beyond the factory bracket.
- Low profile design that is less likely to interfere with vehicle components
- Optional high clearance version raises the lower control arm and shock brackets
Upper control arm geometry
With the trackbar removed, the upper control arms carry the lateral load that a trackbar would normally hold. Triangulated arms spread that load across two mounting points on the axle, which keeps the axle centered under the body. Because the geometry changes, check the pinion angle and ride height once the swap is finished, and adjust the control arm length if the axle sits off center.
The high clearance option raises the lower control arm and shock brackets above the bottom of the axle tube. That lift can clear rocks and let the shock rotate more freely, but it also changes the leverage on the coil. Plan the spring and shock setup together, and inspect the welds and brackets after rough trail use.
- Verify pinion angle after the swap
- Check axle centering under the body
- Inspect welds after early trail use
Specifications
| Brand | Artec Industries |
|---|---|
| Part number | TJ1410 |
| UPC | 816791026354 |
| Axle type | GM 14-bolt 1-ton |
| Axle location | Rear axle |
| Truss top thickness | 3/8″ thick |
| Truss gusset thickness | 1/4″ thick |
| Bracket thickness | 1/4″ thick |
| Steering ram mount | Without steering ram mount |
| Fitment type | Direct fit |
Vehicle fitment
The manufacturer fitment list covers the 2004–2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon, and the 1997–2006 Jeep Wrangler (TJ) 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X. Other Wrangler generations are not covered by this list.
It fits the 2004-2006 Jeep Wrangler (LJ) Unlimited and Unlimited Rubicon, and the 1997-2006 Jeep Wrangler (TJ) 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X. Other Wrangler generations are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This kit is not for use with OEM control arms, so triangulated upper control arms must be used with it. Because the kit removes the trackbar, plan the upper control arm geometry before you start. Choose the high clearance option if the lower control arm and shock brackets need to sit above the bottom of the axle tube. Welded truss work and suspension geometry changes call for experienced fabrication.
What’s included
The kit includes the truss and all the brackets necessary for a complete axle swap, including upper and lower control arm mounts, shock mounts and coil spring mounts.
Not included: The steering ram mount and triangulated upper control arms are not included.
