D-Ring Isolators are the polyurethane sleeves and washers that stop a D-ring shackle rattling against a bumper: snap-on isolators and pin washers for 3/4 and 7/8 inch shackles from Daystar and Rugged Ridge, locking isolator kits with a lanyard that keeps the pin from backing out, and color options from black and red to fluorescent green, purple and white.Match the kit to your shackle size and compare the products below.

Showing 1–12 of 43 resultsSorted by popularity

What a D-ring isolator does

A shackle left in a bumper tab is a loose piece of forged steel. It swings, clinks over every bump, and the pin and bow slowly grind the powder coat off the tab until the bare steel underneath rusts. An isolator is a molded polyurethane sleeve that snaps around the bow of the shackle and fills the gap between it and the tab, while a pair of urethane washers sit on either side of the tab under the pin and the shackle ear. The shackle sits still and quiet, and the bumper finish stays intact. Isolators also make a visible splash of color on a black bumper, which is why they are sold in a dozen shades.

Sizing

Isolators are sized by shackle, not by bumper. A 3/4 inch shackle has a 7/8 inch pin and is the common size on Jeep and light truck bumpers; a 7/8 inch shackle has a 1 inch pin and is found on heavier bumpers-bumpers-tire-carriers-winch-mounts-2 and winch plates. The isolator must match the bow diameter and the washers must match the pin diameter, so a 3/4 inch kit will not work on a 7/8 inch shackle. If you are not sure which shackle you have, measure the thickness of the bow with a caliper or ruler: about 3/4 inch or about 7/8 inch. Kits come as a single pair of isolators with washers for one shackle, or as two complete sets for a pair of shackles; count the pieces in the listing.

Locking isolators

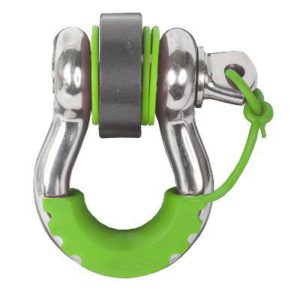

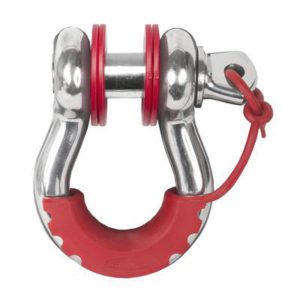

The Daystar locking kits add a short lanyard molded into the isolator that loops through the eye of the shackle pin. Once the pin is threaded in and the lanyard is attached, vibration cannot back the pin out and a casual thief cannot simply unscrew the shackle, since the lanyard has to be released first. It is not a lock in the sense of a key, but it stops the two most common ways to lose a shackle. Kits typically include two locking isolators and either two locking washers plus six standard washers, or eight standard washers. Standard kits without the lanyard are fine for shackles that are checked regularly.

Installation

  • Remove the shackle and clean the bumper tab. If the finish is already worn through, touch it up and let it dry.
  • Stretch the isolator over the bow of the shackle. Warm polyurethane stretches more easily; a few minutes in the sun or warm water helps on a cold day.
  • Slip a washer onto the pin on each side of the tab so the shackle ears never touch steel, then thread the pin fully and back it off a quarter turn.
  • On a locking kit, loop the lanyard through the pin eye and seat it.
  • Check that the shackle still has room to rotate slightly in the tab under load; the isolator should not force the bow sideways.

During a recovery

Isolators are made for parked shackles, not for load. Polyurethane is tough, but a strap pulling through the bow at an angle will chew it and can push the isolator into the strap loop. Most manufacturers accept leaving the isolator in place during a straight pull, since the strap rides on the bow where the isolator is thinnest, but remove the washers if they prevent the shackle from aligning with the pull. Inspect the isolator afterward and replace it if it is torn. Keep a spare set in the recovery bag; they weigh almost nothing.

Colors and durability

Pigmented polyurethane keeps its color well but will fade over several years of sun, with fluorescent shades fading first. Black lasts longest. Mud and road salt do not hurt urethane, and a quick wash restores the color. Expect a set to outlast several bumper touch-ups.

Popular D-Ring Isolators brands

D-Ring Isolators FAQ

Do I need isolators for 3/4 inch or 7/8 inch shackles?

Measure the bow of your shackle. Most Jeep and light truck bumpers use 3/4 inch shackles with a 7/8 inch pin, which take the 3/4 inch kits. Heavier bumpers and winch plates often run 7/8 inch shackles with a 1 inch pin, which need the 7/8 inch kits.

Can I leave D-ring isolators on during a recovery?

For a straight pull most makers allow it, since the strap rides on the bow where the isolator sits. Remove the pin washers if they keep the shackle from lining up with the pull, and inspect the isolator afterward. Replace anything torn before the next trip.

What is a locking D-ring isolator?

It is an isolator with a molded lanyard that loops through the eye of the shackle pin after the pin is threaded in. The lanyard stops the pin backing out from vibration and prevents a quick unscrew by a passerby. It is a deterrent, not a keyed lock.

How many pieces come in a kit?

It varies. Some kits cover one shackle with two isolators and a set of washers; others include two complete sets, four isolators and eight washers, for a pair of shackles. Washer-only sets of eight are also sold. Check the contents line on the listing.
