Bump Stops

What a bump stop does

A bump stop is a cushion that stops suspension compression before the axle hits the frame, a body part or the tire hits a fender. On a stock vehicle, factory foam or rubber stops handle that job. When you lift a vehicle or add longer-travel shocks, the factory stops often no longer sit in the right place, so aftermarket stops are used to protect the shocks and chassis.

Types you will see

• Urethane or rubber bump stops: simple, inexpensive and common for mild lifts. They firm up as they compress.
• Microcellular progressive stops: closed-cell polyurethane units that squeeze gradually, absorbing energy while increasing resistance. Many are designed to pop into factory locations.

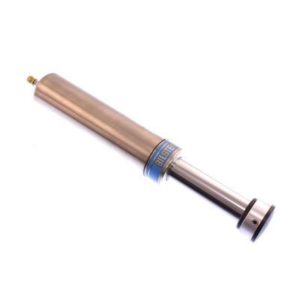

• Hydraulic bump stops: use fluid damping to slow the last part of travel, and they are used where large hits at speed are expected.
• Air bump stops and sleeves: designed for shock-integrated bump stops, with mounting sleeves to position them on the shock shaft.
• Stackable pucks and strike pads: let you tune the stop height in increments, and the strike pad gives the stop a flat surface to land on.

Choosing the right one

Match the stop to the axle and lift height. Listings often state the lift range, such as 0 to 4.5 inches, and the stroke length. Think about use: slow rock crawling needs less energy absorption than desert or high-speed driving. Make sure the stop is mounted so it contacts before the shock bottoms out and before the tire reaches the body or the driveshaft hits something. Check whether a mounting sleeve, bracket or strike pad is included.

Installation notes

Measure available travel with the suspension cycled, since stops that are too tall limit flex and ones that are too short allow damage. Use proper jack stands, follow torque specifications and have the vehicle inspected after the first drive. Suspension work is safety related, so use a professional installer if you are not confident.

Bump stop placement and travel are tied to other suspension choices. Shocks are designed with a specific amount of travel, and a bump stop that lets the shock fully collapse risks internal damage. Likewise, extended brake lines, sway bar links and driveshafts need to accommodate the full range of motion. When tuning stop height, measure from the axle to the stop contact point with the suspension fully compressed and leave a small safety margin before the tire contacts the fender or frame.

Different materials suit different uses. Basic urethane is fine for light trail use, while microcellular and hydraulic designs are made for repeated big hits and high speeds. Check for cracks, tears or flattening during regular inspections, since a worn bump stop no longer protects the suspension. Make sure mounting cups, brackets and sleeves are secure and free of rust. If your lifted vehicle bottoms out often, revisit the springs, shock length and stop position together rather than just adding more cushion.

Fitment

Many stops are vehicle specific, others are universal. Confirm your exact year, make, model and lift height, and read the manufacturer's specifications before choosing a product below.
