Bump Stops
Showing 25–36 of 169 resultsSorted by popularity
-
Bump Stops
Icon Suspension Rear Hydraulic Air Bumpstop System – 56104
- Bolt-in hydraulic bump stop kit for rear suspension
- Fits 2010–2023 Lexus GX460 and 2003–2023 Toyota 4Runner
- Also fits 2003–2009 Lexus GX470 and 2007–2014 FJ Cruiser
- Velocity sensitive, absorbs more energy when engaged faster
- Installs inside the coil and can be rebuilt
SKU: ICO56104 -
Bump Stops

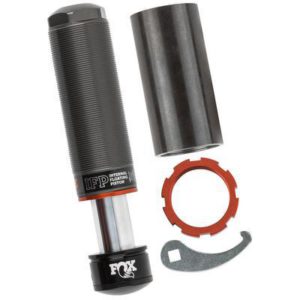

FOX Factory Race Series Gen2 IFP 2.0 Bump Stop (Short) – 983-02-170
- FOX Factory Race Series Gen2 IFP 2.0 short air bump stop
- Fits 2007–2018 Jeep Wrangler JK
- Threaded body adjusts when the stop engages on up travel
- Internal floating piston separates oil and nitrogen
- Replaceable strike pad protects the FOX air valve
SKU: FOX983-02-170 -
Bump Stops

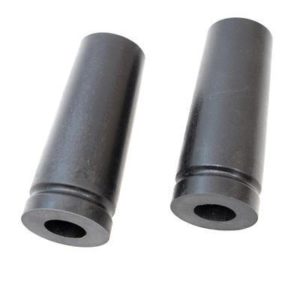

Fishbone Offroad Extended Bump Stops – FB47164
- Extended bump stops, sold as a pair, in high density polyurethane
- Front or rear on Wrangler TJ and LJ; front only on Cherokee XJ, Comanche and Grand Cherokee ZJ
- Fits Jeep models from 1984 to 2006
- Helps prevent shock damage
- Limited lifetime warranty, made in the USA
SKU: FISFB47164 -
-
-
What a bump stop does
A bump stop is a cushion that stops suspension compression before the axle hits the frame, a body part or the tire hits a fender. On a stock vehicle, factory foam or rubber stops handle that job. When you lift a vehicle or add longer-travel shocks, the factory stops often no longer sit in the right place, so aftermarket stops are used to protect the shocks and chassis.
Types you will see
- Urethane or rubber bump stops: simple, inexpensive and common for mild lifts. They firm up as they compress.
- Microcellular progressive stops: closed-cell polyurethane units that squeeze gradually, absorbing energy while increasing resistance. Many are designed to pop into factory locations.
- Hydraulic bump stops: use fluid damping to slow the last part of travel, and they are used where large hits at speed are expected.
- Air bump stops and sleeves: designed for shock-integrated bump stops, with mounting sleeves to position them on the shock shaft.
- Stackable pucks and strike pads: let you tune the stop height in increments, and the strike pad gives the stop a flat surface to land on.
Choosing the right one
Match the stop to the axle and lift height. Listings often state the lift range, such as 0 to 4.5 inches, and the stroke length. Think about use: slow rock crawling needs less energy absorption than desert or high-speed driving. Make sure the stop is mounted so it contacts before the shock bottoms out and before the tire reaches the body or the driveshaft hits something. Check whether a mounting sleeve, bracket or strike pad is included.
Installation notes
Measure available travel with the suspension cycled, since stops that are too tall limit flex and ones that are too short allow damage. Use proper jack stands, follow torque specifications and have the vehicle inspected after the first drive. Suspension work is safety related, so use a professional installer if you are not confident.
Bump stop placement and travel are tied to other suspension choices. Shocks are designed with a specific amount of travel, and a bump stop that lets the shock fully collapse risks internal damage. Likewise, extended brake lines, sway bar links and driveshafts need to accommodate the full range of motion. When tuning stop height, measure from the axle to the stop contact point with the suspension fully compressed and leave a small safety margin before the tire contacts the fender or frame.
Different materials suit different uses. Basic urethane is fine for light trail use, while microcellular and hydraulic designs are made for repeated big hits and high speeds. Check for cracks, tears or flattening during regular inspections, since a worn bump stop no longer protects the suspension. Make sure mounting cups, brackets and sleeves are secure and free of rust. If your lifted vehicle bottoms out often, revisit the springs, shock length and stop position together rather than just adding more cushion.
Fitment
Many stops are vehicle specific, others are universal. Confirm your exact year, make, model and lift height, and read the manufacturer's specifications before choosing a product below.
Related guides
- Shock Boots: Why Every Lifted Shock Needs One
- Jeep JK Lift Heights: 2.5 vs 3.5 vs 4.5 Inch Compared
Jeep JK lift heights compared: the tires 2.5, 3.5 and 4.5-inch lifts clear, the track bars, arms, lines and driveshafts each needs, and which…
Popular Bump Stops brands
- Energy Suspension (28)
- TeraFlex (21)
- Crown Automotive (20)
- Daystar (17)
- Rubicon Express (14)
- Fox Racing Shox (9)
- King Shocks (9)
- Omix-Ada (7)
- Pro Comp Suspension (7)
- Timbren (5)
- Rock Krawler (5)
- Currie (4)
Bump Stops FAQ
Do I need new bump stops after a lift?
Often yes. A lift changes where the axle sits relative to the frame, so factory stops may no longer prevent bottoming out. Longer stops or extensions, sized for your lift height, restore protection for shocks, axle and body.
What is a progressive bump stop?
A progressive bump stop compresses gradually, with resistance rising as it squeezes, rather than stopping suddenly. Microcellular polyurethane designs are common and absorb large impacts better than a simple solid rubber block.
What is the difference between a bump stop and a shock?
A shock controls the speed of suspension movement through damping, while a bump stop limits how far the suspension can compress. They work together, and a bump stop can prevent a shock from bottoming out.
How tall should my bump stops be?
They should contact before the shock fully compresses and before the tire or axle hits anything, while still allowing the travel you want. Measure with the suspension cycled and follow the maker's lift-height guidance for your vehicle.
