Timbren SES Suspension Enhancement System – Rear – TORTUN4

Timbren

$267.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 7:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Timbren T/ITORTUN4 rear SES Suspension Enhancement System for Toyota Tacoma, Tundra and Nissan Titan pickups
  • Rated at 6000 lbs capacity
  • Fitment list gives specific years and trims for each model
  • Replaces the jounce stop on the frame and the Tundra bumpstops

Description

Overview

The Timbren SES Suspension Enhancement System for the rear, part number T/ITORTUN4, is a rubber spring upgrade for Toyota Tundra, Toyota Tacoma and Nissan Titan pickup trucks. The listed fitment covers specific model years and trims, which are shown in the fitment section below.

Hollow rubber springs add resistance as weight pushes down on them, which helps resist rear end sag when a trailer is towed or the bed is heavily loaded. Each laser cut steel piece is welded and powder-coated for a fitted finish. The kit replaces the jounce stop on the frame and is rated at 6000 lbs capacity. The upgraded spring rate does not change the GVWR, so the factory limit still governs maximum loads. Ride quality is good both loaded and unloaded when the spring gap is correct.

Key features

  • Replaces the jounce stop on the frame and the Tundra bumpstops
  • Rated at 6000 lbs capacity
  • Laser cut steel pieces, welded and then powder-coated

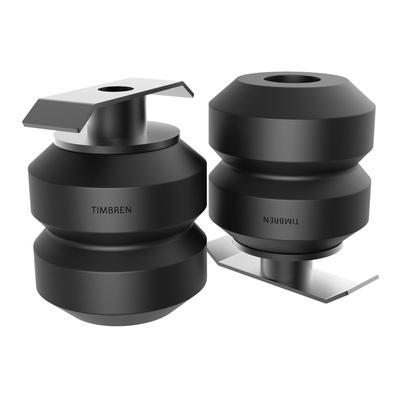

  • Hollow rubber springs that resist rear end sag under heavier loads
  • Spring gap of 1/2″ to 1-1/2″ between rubber spring and frame for unloaded ride

Spring gap and rear travel

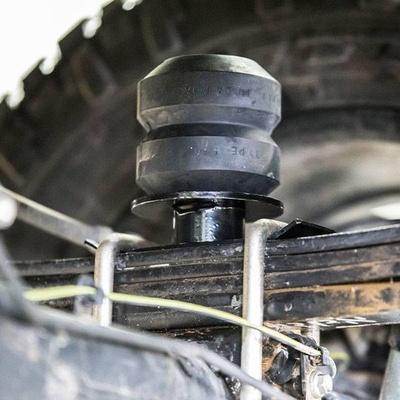

The rubber springs sit between the axle and the frame, and the gap between them sets how quickly they begin to work as the rear compresses. Too tight a gap can make the ride harsh when the truck is unloaded, while too wide a gap lets the axle travel farther before the spring engages. Measuring the gap after fitting and again after any change in load keeps the setup consistent.

Pickups used for towing see repeated loading and unloading, so the rear end experiences more stress than a truck used only for daily driving. Check shock absorbers, rear tires and mounting hardware periodically, since these parts work with the springs to control motion. Replace any cracked rubber promptly, and keep trailer tongue weight within the hitch rating.

  • Measure the spring gap after fitting and after load changes
  • Inspect the rubber for cracks or splits
  • Check shock absorbers for leaks
  • Re-tighten mounting hardware after the first trips

Specifications

Brand Timbren
Part number T/ITORTUN4
Application Rear
System type Rubber spring
Fitment category Direct Fit
Rated capacity 6000 lbs
Material Laser cut steel, welded, powder-coated
Spring gap 1/2″ to 1-1/2″ between rubber spring and frame

Vehicle fitment

It fits 2008–2015 and 2017–2024 Nissan Titan in PRO-4X and S trims, 2005–2015 Toyota Tacoma in Base, TRD Pro and X-Runner trims, and the 2020 Toyota Tundra in the TRD Pro trim. Titan applications are 2WD only.

Toyota Tundra coverage is limited to the 2020 TRD Pro trim, so other Tundra years and trims are not covered. Titan trims other than PRO-4X and S are not covered. Confirm fit for your vehicle’s year, model and trim before ordering.

Installation notes

The jounce stop and, on Tundra models, the bumpstops are replaced, so they come off during fitting. Hold the gap between rubber spring and frame at 1/2″ to 1-1/2″ for unloaded ride quality. Titan applications are 2WD only, so confirm drive type before fitting. Raise the truck and support it on stands before working at the rear.

What’s included

Laser cut steel pieces and hollow rubber springs are the named components, with no separate hardware list given.

Fitment

VehicleYearsTrims
Nissan Titan2008–2015, 2017–2024PRO-4X, S
Toyota Tacoma2005–2015Base, TRD Pro, X-Runner
Toyota Tundra2020TRD Pro

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which years does the Timbren T/ITORTUN4 fit?

The manufacturer list shows 2005–2015 Toyota Tacoma (Base, TRD Pro, X-Runner), 2008–2015 and 2017–2024 Nissan Titan (PRO-4X, S), and 2020 Toyota Tundra (TRD Pro). Other years and trims are not on that list.

What is the rated capacity of the TORTUN4 kit?

The kit is rated at 6000 lbs capacity, with no other load figure given. Keep trailer and bed loads within your truck's GVWR.

Is the TORTUN4 the same kit as the TORTUN4L?

No, they are separate part numbers. The TORTUN4 list covers Tacoma, Tundra and Titan, while the TORTUN4L description names the Tacoma with OEM 3 leaf rear springs plus Nissan Titan and Frontier.

Does the Tundra fit cover every year from 2000 to 2021?

No. Tundra coverage is limited to the 2020 TRD Pro trim, so other years and trims are not covered. Confirm your exact year and trim before ordering.

Why does the spring gap matter?

The gap sets how the rubber spring engages as the rear compresses. Too tight a gap can make the ride harsh when unloaded, and too wide a gap lets the axle travel farther before the spring works. Measure it after fitting.

Should the frame and axle be checked after installing a jounce stop kit?

Yes. Look for contact marks, loose brackets and uneven rear height after the first loaded trip. Confirm the rubber springs are seated properly and the gap is still within range.
