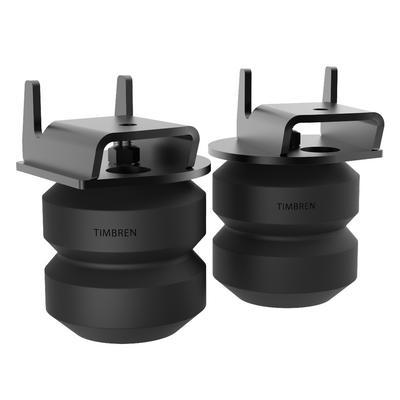

Timbren Rear Axle SES Suspension Upgrade – FR1504R

Timbren

$269.36In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 1:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear SES suspension upgrade named for the Ford F-150 SVT Raptor 4×4 pickup
  • Hollow rubber springs with a progressive spring rate
  • Laser cut steel pieces, precision bent and powder-coated
  • Replaces the jounce stop on the frame
  • Confirm model years before ordering

Description

Overview

The Timbren Rear Axle SES Suspension Upgrade, part FR1504R, is a rear suspension upgrade for the Ford F-150 SVT Raptor 4×4 pickup truck. It replaces the jounce stop on the frame and adds hollow rubber springs in its place.

Timbren describes each laser cut piece of steel as precision bent and powder-coated to ensure a quality fit. The hollow rubber springs have a progressive spring rate, so as weight presses down on them they push back harder, which Timbren says prevents rear end sag.

The springs adjust automatically to keep the truck level when pulling a trailer or carrying a heavy load in the bed. The design is intended to ride well loaded or unloaded, with a 1/2 inch to 1-1/2 inch gap between the rubber spring and axle for unloaded ride.

Key features

  • Hollow rubber springs with a progressive spring rate
  • Adjusts automatically to keep the truck level under trailer or bed loads.
  • Replaces the jounce stop on the frame
  • Laser cut steel pieces, precision bent and powder-coated
  • Rear application with a rubber spring system
  • Calls for a 1/2 in to 1-1/2 in gap between rubber spring and axle for unloaded ride quality

Jounce stop and rear ride height

The jounce stop on the frame limits how far the rear axle can travel up under compression. Replacing it with a rubber spring changes that travel, so the rear suspension behaves differently at the top of its range. Trucks that carry heavy loads often show rear sag first, which is why a rising spring rate is part of this design.

Before fitting, check the shock absorbers, bump stops and leaf or coil springs for wear. Worn shocks let the axle move more than intended and can make the new spring feel uneven. After installation, drive the truck loaded and empty and recheck ride height and the gap at the axle.

  • Rear ride height before and after fitting
  • Shock absorber condition
  • Gap measured with the truck empty

Specifications

Brand Timbren
Part number FR1504R
Position Rear
System type Rubber spring
Spring rate Progressive
Construction Laser cut steel, precision bent and powder-coated
Unloaded gap 1/2 in to 1-1/2 in between rubber spring and axle
Replaces Jounce stop on the frame

Vehicle fitment

The kit is named for the Ford F-150 SVT Raptor 4×4 pickup truck. Confirm your vehicle’s year, model and trim before ordering, since the years it covers need to match your truck.

The SVT Raptor name does not identify a year range, so it does not show which F-150 generation applies. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Measure the gap between the rubber spring and the axle with the truck empty, aiming for 1/2 inch to 1-1/2 inch. Replacing the jounce stop affects how the rear suspension compresses, so recheck ride height after installation. Keep the truck safely supported on stands while working underneath.

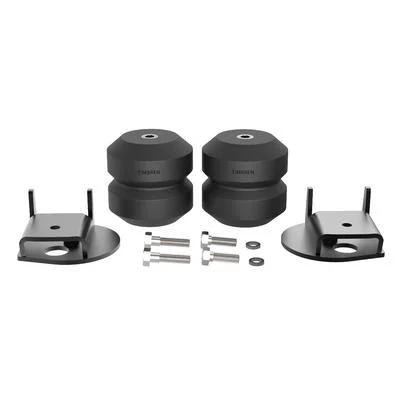

What’s included

The kit covers one rear SES suspension upgrade. Check the package contents against your installation before starting.

Questions & Answers

Will the FR1504R fit a Ford F-150 SVT Raptor?

Confirm fit for your year and trim before ordering. The FR1504R is made for the rear suspension of the Ford F-150 SVT Raptor 4x4 pickup truck.

Is this a front or rear part?

It is a rear suspension part for the Ford F-150 SVT Raptor 4x4, so it is not a front-axle component.

What does the hollow rubber spring do?

The springs have a progressive spring rate, so they resist more as the load increases, which Timbren says prevents rear end sag. The springs also adjust automatically to keep the truck level when towing or hauling a load.

Do rear jounce stops need replacing with other parts?

Often the shocks and bump stops are inspected at the same time. Worn shocks allow more axle travel than intended, so checking them helps the new spring work as designed.

How often should the rear gap be checked?

Check it at installation and again after the first few drives. Look for changes in ride height, uneven tire wear or noise from the rear, and recheck the gap if any appear.
