Overview
The Timbren SES Suspension Enhancement System, rear, part number T/IGMRCK15S, is a rubber spring upgrade for the rear suspension of Chevrolet Silverado 1500 and GMC Sierra 1500 pickup trucks. Its hollow rubber springs are meant to resist rear end sag when a trailer is towed or a heavy load is carried in the bed.
Each steel piece is precision bent and powder-coated for a close fit. The design aims for ride quality that works both loaded and unloaded. The springs add resistance as weight pushes down on them, and the kit is rated at 8600 lbs capacity. A stiffer rate does not change the GVWR, so keep loads within it.
Key features
- Hollow rubber springs with a progressive rate, so resistance builds with load
- Precision bent steel pieces, powder-coated
- Rated at 8600 lbs capacity
- Designed to keep the rear level when towing or hauling
- Gap of 1/2″ to 1-1/2″ between rubber spring and axle for unloaded ride quality
Checking the rear after installation
Rubber spring kits for half-ton pickups change how the rear suspension responds, so it helps to think about the whole truck. The springs add resistance as load increases, which can reduce rear sag when towing or hauling. Setting the gap correctly and keeping shocks in good condition work together to keep the rear level.
After installation, drive the truck unloaded, then with a typical load, and listen for rubbing or knocks. Recheck the gap after the first few trips, since settling can shift the setting. Look for cracks in the rubber and loose hardware, and keep the rear of the truck supported while working on it.
- Recheck the gap after early drives
- Test ride unloaded and with a load
- Inspect the rubber for cracks
Specifications
| Brand | Timbren |
|---|---|
| Part number | T/IGMRCK15S |
| Application | Rear |
| System type | Rubber spring |
| Fitment category | Direct Fit |
| Material | Precision bent steel, powder-coated |
| Rated capacity | 8600 lbs |
| Spring gap | 1/2″ to 1-1/2″ between rubber spring and axle |
Vehicle fitment
The manufacturer list gives 2003–2005, 2007, 2010–2013 and 2019 Chevrolet Silverado 1500 with trims Custom, Custom Trail Boss, High Country, LS, LT, LT Trail Boss, LTZ, RST, SS, SSV, WT and XFE. It also gives 2001–2007, 2010–2013 and 2019 GMC Sierra 1500 with trims AT4, Base, C3, Denali, Elevation, SL, SLE, SLT and XFE.
Only 1500 models appear on the list. Years that fall between the listed ranges are not included. Match your year and trim before ordering.
Installation notes
Leave a gap of 1/2 inch to 1-1/2 inch between each rubber spring and the axle, and recheck it once installation is complete. Keep trailer and bed loads inside the GVWR for your truck. Lift the truck onto a stable stand before working under the rear.
What’s included

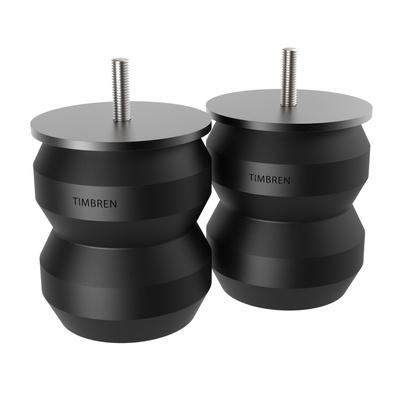

Precision bent steel pieces and hollow rubber springs make up the kit.
