Timbren Rear Axle SES Suspension Upgrade – GMRCCA

Timbren

$269.36In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 4:40 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

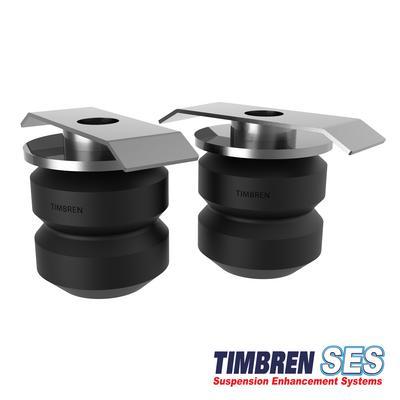

  • Timbren T/IGMRCCA rear SES Suspension Upgrade for Chevrolet Colorado and GMC Canyon pickups
  • Fitment field reads Universal Fit, and no model years are given
  • Hollow rubber springs with a rate that rises under towing and bed loads
  • Laser cut steel pieces, powder-coated; replaces the jounce stop on the frame

Description

Overview

The Timbren SES Suspension Upgrade, part number T/IGMRCCA, is a rear rubber spring kit for Chevrolet Colorado and GMC Canyon pickups. It is designed to keep the rear end from sagging when a trailer is hitched or a heavy load sits in the bed. Auxiliary rubber springs of this type are often called load leveling springs, and the Timbren design uses hollow rubber springs that stiffen as more weight pushes down on them.

Each kit is made from laser cut steel pieces that are powder-coated for a precise fit. The springs mount at the rear frame, where the kit replaces the jounce stop, so the rear end has support when the truck is loaded. The springs adjust as weight changes and help keep the vehicle level. The ride stays comfortable loaded and empty when the spring gap is set correctly.

Key features

  • Hollow rubber springs that stiffen as the load rises
  • Takes the place of the jounce stop on the frame
  • Helps hold the rear level for towing and heavy bed loads
  • Laser cut steel pieces, powder-coated
  • Gap of 1/2″ to 1-1/2″ between rubber spring and frame for unloaded ride quality

Setting the gap correctly

Hollow rubber springs work by compressing as weight increases, so the gap between the spring and the frame controls when they begin to take load. A gap that is too small can make the ride harsh when the truck is unloaded, while a gap that is too large can reduce support under a trailer. Setting the gap carefully is the main adjustment for this type of kit.

Rubber springs can crack or flatten over time, especially in hot climates or with frequent heavy loads. After the first few drives, recheck the gap and the mounting hardware, since settling can change the setting. Keep the rear of the truck supported while measuring.

  • Measure the gap on both sides
  • Recheck the setting after the first drives
  • Inspect rubber for cracking or flattening

Specifications

Brand Timbren
Part number T/IGMRCCA
Application Rear
System type Rubber spring
Fitment category Universal Fit
Material Laser cut steel, powder-coated
Spring gap 1/2″ to 1-1/2″ between rubber spring and frame

Vehicle fitment

This kit is Universal Fit and is intended for the rear suspension of Chevrolet Colorado and GMC Canyon pickups. Confirm your vehicle’s year, model and trim before ordering.

Other Colorado or Canyon generations and other GM midsize pickups need a year and model check. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Set the gap between each rubber spring and the frame at 1/2″ to 1-1/2″ so the truck rides properly when unloaded. Because the kit replaces the jounce stop, that stop is removed during fitting. Work with the rear of the truck securely supported on stands while the springs are fitted and checked.

What’s included

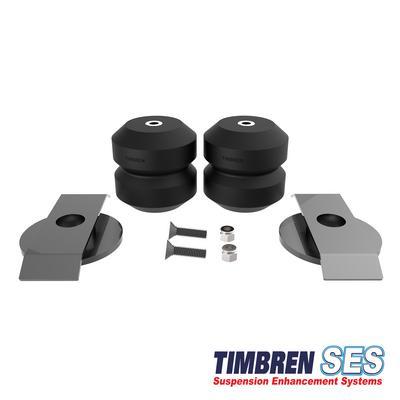

The kit’s parts are the laser cut steel pieces and hollow rubber springs. Confirm the contents against your installation steps before starting.

Questions & Answers

Does the Timbren T/IGMRCCA fit my Chevrolet Colorado or GMC Canyon?

The kit is intended for the rear suspension of Chevrolet Colorado and GMC Canyon pickups and is Universal Fit. Confirm your vehicle's year, model and trim before ordering, since the kit is aimed at those two models.

What is part number T/IGMRCCA?

T/IGMRCCA is the Timbren part number for the rear SES Suspension Upgrade. It uses hollow rubber springs to resist rear end sag under load, and the kit is made of laser cut steel pieces.

What gap should the rubber springs have?

Set a gap of 1/2 inch to 1-1/2 inch between each rubber spring and the frame. This setting supports a comfortable ride when the truck is unloaded, so check it during installation.

Is a load rating given for this kit?

Keep trailer and bed loads within the GVWR for your specific truck. Check the rubber spring gap after the first loaded trip, since the springs stiffen as weight increases and the setting affects ride quality.

How do I know the rubber springs are wearing out?

Look for cracking, splitting or flattening on the hollow rubber springs. Watch for the rear end sagging again under load or a harsher ride when empty. Recheck the gap and mounting hardware at the same time.
