Overview
The Timbren DR1500DQ is a rear SES Suspension Enhancement System that uses hollow rubber springs to replace the bumpstops on the rear suspension of RAM 1500 pickups. It is designed for 2009–2021 RAM 1500 2WD and 4WD crew cab and quad cab pickups. Match your year and trim to the trims covered before ordering.
The springs work harder as weight pushes down on them, which limits rear end sag when towing a trailer or carrying a heavy bed load. The kit is rated at 8600 lbs capacity and leaves the GVWR unchanged, so keep loads within the GVWR for your truck. It is not compatible with Auto-Air levelling and is designed for good ride quality loaded and unloaded.
Key features

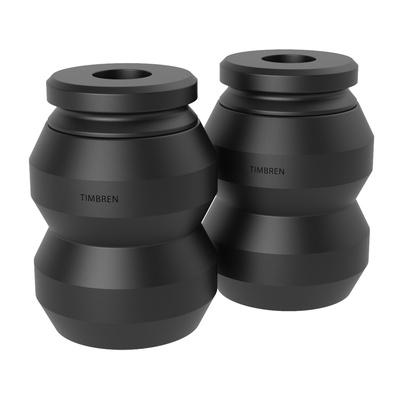

- Hollow rubber springs that resist rear end sag more as the load increases
- Replaces the bumpstops on the rear suspension
- Rated at 8600 lbs capacity
- Gap of 1/2″ to 1-1/2″ between the rubber spring and axle for unloaded ride quality
- Not compatible with Auto-Air levelling
Bumpstop replacement and ride
The bumpstops on a rear suspension limit how far the axle can travel before the frame takes the impact. Replacing them with hollow rubber springs changes that limit and gives the rear a progressive response as weight increases. Because the bumpstops are part of the travel system, removing them is a step that should be done carefully.
Auto-Air levelling is a separate system, and a truck running it needs its leveling compatibility confirmed before adding rear springs. Rubber springs work best with a clean, correct gap, so check the setting after fitting and again after the first loaded trip. Look at the axle area for rubbing or loose hardware.
- Remove the old bumpstops fully
- Set the gap on both sides
- Check for rubbing after loaded trips
Specifications
| Brand | Timbren |
|---|---|
| Part number | T/IDR1500DQ |
| Application | Rear |
| System type | Rubber spring |
| Fitment category | Direct Fit |
| Rated capacity | 8600 lbs |
| Spring gap | 1/2″ to 1-1/2″ between rubber spring and axle |
| Auto-Air levelling | Not compatible |
Vehicle fitment
The manufacturer fitment list shows 2012 and 2017–2021 Ram 1500 in the Big Horn, Express, HFE, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Longhorn, Special Service, TRX, TRX Launch Edition, Tradesman and Tradesman HD trims. It also lists 2019–2024 Ram 1500 Classic in the Big Horn, Express, Laramie, Lone Star, SLT, Special Service, Tradesman and Warlock trims.
Ram 2500 and 3500 trucks are not covered. Confirm your year and trim fall within the years and trims shown for your model before ordering, since the broader range does not mean every year is covered.
Installation notes
The bumpstops are replaced, so remove the originals before fitting the new springs. Set the gap between each rubber spring and the axle to 1/2″ to 1-1/2″ for unloaded ride quality. Do not install this kit on a truck equipped with Auto-Air levelling, as the kit is not compatible with it.

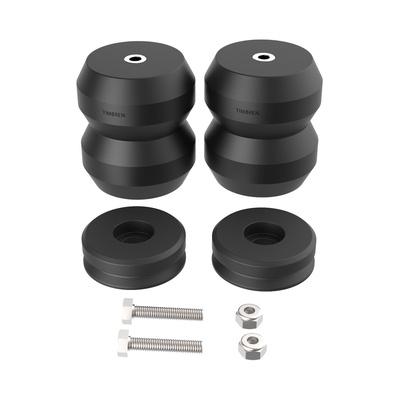

What’s included
The kit includes the hollow rubber springs and replaces the bumpstops, with the 8600 lbs rating. Confirm the hardware in your kit against the installation steps before you begin.
