Timbren Rear Axle SES Suspension Upgrade – TORTTNL

Timbren

$269.36In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 1:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Timbren Rear Axle SES Suspension Upgrade, part number T/ITORTTNL
  • Rear rubber spring kit for the Toyota Tacoma pickup truck
  • Rated at 5000 lbs capacity; GVWR is not increased
  • Replaces the jounce stop on the frame
  • No model years listed, so confirm fit for your truck

Description

Overview

The Timbren Rear Axle SES Suspension Upgrade, part number T/ITORTTNL, is a rear rubber spring kit for the Toyota Tacoma pickup truck. It targets rear end sag with a progressive rubber spring that works harder as weight increases. The kit is rated at 5000 lbs capacity, and the higher spring rate leaves the GVWR (Gross Vehicle Weight Rating) unchanged.

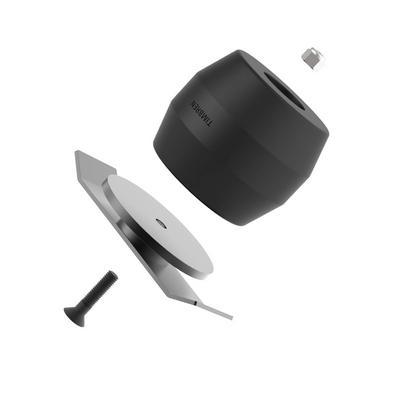

The hollow rubber springs adjust automatically to keep the truck level, whether it is pulling a trailer or carrying a heavy load in the bed. Each laser cut steel piece is precision bent and powder-coated for a quality fit. The kit replaces the jounce stop on the frame, and Timbren describes its design as delivering superb ride quality loaded or unloaded.

Timbren recommends Severe Service kits for slide-in campers, salt spreaders, and any application that needs maximum stability to reduce roll and sway. Compare that use with what this kit is intended for before you decide.

Key features

  • Progressive rubber spring rate that stiffens as added weight pushes down.
  • Automatic leveling for trailers and heavy bed loads.
  • Rated at 5000 lbs capacity.
  • Replaces the jounce stop on the frame.
  • Laser cut steel, precision bent and powder-coated.
  • Rear application with a rubber spring system type.

Severe service and towing use

Some rear suspension upgrades are chosen for heavier-duty use, such as slide-in campers, salt spreaders, or any setup that needs extra stability. In those cases, roll and sway matter more than ride comfort alone. Think about how the truck will be used most of the time before choosing a rear kit, since a setup suited to one job may not suit another.

A rear rubber spring kit works best as part of a complete rear end. Shocks, bushings and tires all affect how the truck settles under load. Keep the rear level, check the setting after installation, and keep loads inside the rating for your truck.

  • Match the kit to typical loads
  • Check shocks and bushings during installation
  • Keep loads within the GVWR for your truck

Specifications

Brand Timbren
Part number T/ITORTTNL
Application Rear
System type Rubber spring
Construction Laser cut steel, precision bent, powder-coated
Replaces Jounce stop on the frame
Rubber spring to axle gap 1/2 to 1 1/2 inch
Rated capacity 5000 lbs

Vehicle fitment

It is aimed at the rear suspension of a Toyota Tacoma pickup truck. Confirm fit for your Tacoma’s year and generation before ordering.

Other Toyota models and other makes are outside the intended application. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Timbren’s gap figure for this kit is 1/2 to 1 1/2 inch between the rubber spring and the axle, and that is the setting to check for unloaded ride quality. Keep the load under the GVWR set by the manufacturer, since the upgrade leaves that rating unchanged.

What’s included

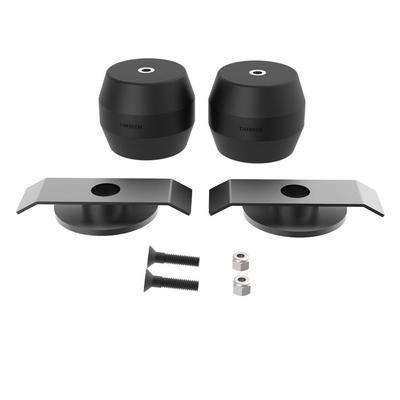

The kit includes the hollow rubber springs and laser cut steel pieces. Check the package contents against your installation before starting.

Questions & Answers

Is part number T/ITORTTNL a Toyota Tacoma kit?

Yes, it is aimed at the rear suspension of a Toyota Tacoma pickup truck. Confirm fit for your Tacoma's year and generation before ordering, and check the rubber spring gap during installation.

What is the rated capacity of the Timbren T/ITORTTNL?

This kit is rated at 5000 lbs capacity. The higher spring rate leaves the GVWR (Gross Vehicle Weight Rating) unchanged, so the vehicle's own rating still limits how much load it can carry.

Does the upgrade increase the vehicle's GVWR?

No. The higher spring rate leaves the GVWR unchanged, so loads must stay within the GVWR set for your truck. Keep trailer and bed loads inside that rating when hauling.

When does Timbren recommend a Severe Service kit?

Timbren recommends Severe Service kits for slide-in campers, salt spreaders, and any application that requires maximum stability, reducing roll and sway. Compare that use with this kit before you decide.

What should I check after installing rubber spring kits?

Check the gap between each rubber spring and the axle, and confirm the jounce stop has been removed as the kit requires. Recheck mounting hardware after the first few drives, and look for rubbing against the frame when the suspension moves.
