Overview

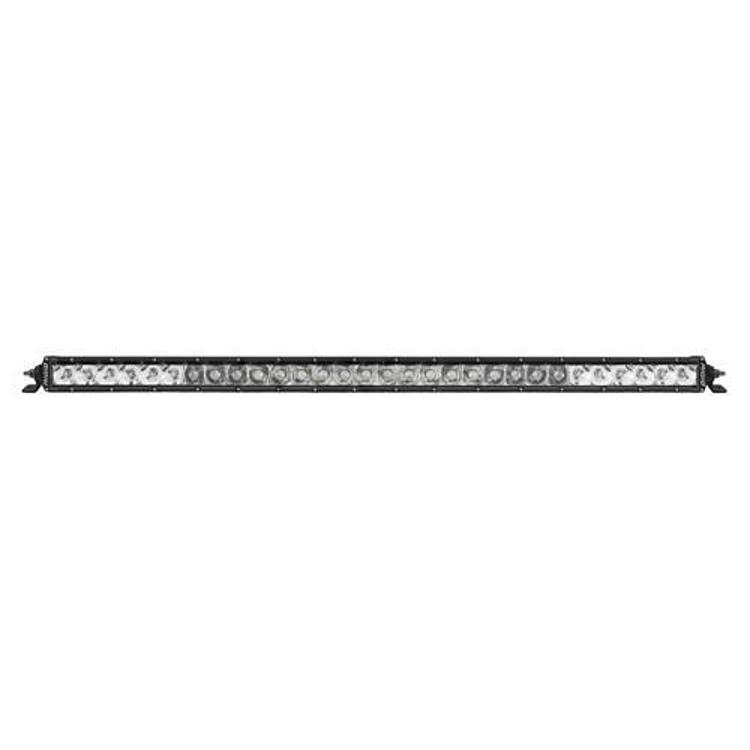

Part number 930314 is a 30 inch light bar in a spot/flood combo pattern. It has 30 LEDs, 160 watts, an 11.43 amp draw and 18810 raw lumens, with a beam distance of 545 m. It is a universal light bar, not built for one vehicle.
The bar uses a single row of LEDs with hybrid optics that cover a range of beam patterns. It is designed for spaces where depth is limited, and it projects light a long way while using little power. The housing is extruded aluminum with a black powder coated finish.
A spot/flood combo pairs a focused spot for distance with a wider flood for the ground close to the vehicle. Instant on and off means full output without warm-up. The bar suits off road vehicles and also industrial, agricultural and marine applications.
Key features
- Spot/flood combo beam
- Single row of 30 LEDs
- Patented hybrid optics
- Instant on and off, with no warm up
- Lifespan of 50,000+ hours, per Rigid
- Blacked-out circuit boards and updated branding
Mounting and wiring care
Hybrid optics combine a focused pattern and a wider flood in one housing, so aim matters more than it does on a single pattern bar. Set the bar level, then check the spot and flood areas on a wall or the ground at night, and adjust the bracket until the hot spot lands where you need it. Keep the lens clean, because a film of dust or water spots scatters light and makes the pattern look uneven.
If the bar moves between vehicles, keep spare hardware and good connectors on hand. Inspect the wiring at the bracket, where flexing wears insulation first. A bar that switches on slowly, dims or cuts out usually points to a connection problem rather than the LEDs, so check the fuse, relay and ground before replacing anything.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 930314 |
| UPC | 849774031502 |
| Series | SR-Series Pro 30 inch light bar |
| Size | 30 inch |
| Beam pattern | Spot/flood combo |
| Watts | 160 |
| Amp draw | 11.43 |
| LEDs | 30 |
| Raw lumens | 18810 |
| Beam distance | 545 m |
| Optics | Hybrid |
| Lens | Clear, polycarbonate |
| Finish | Black |
Vehicle fitment
Because the bar is single row and low profile, it suits mounting spots with limited depth. Check the mounting spot on your vehicle before ordering, and confirm the bracket fits that location.
Confirm your vehicle’s year, model and trim before ordering any bracket.
Installation notes
The 11.43 amp draw calls for a fused circuit with a relay. Light bars are subject to local road-use rules, so check them before the bar is driven with the lights on.
What’s included
One 30 inch SR-Series Pro spot/flood combo light bar in black.
