Overview

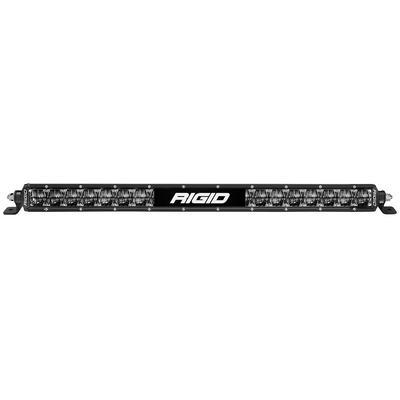

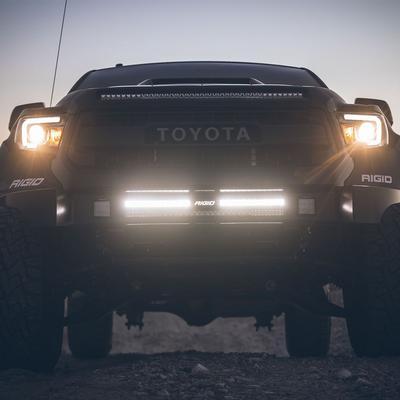

The Rigid Industries SR-Series 20 Inch Dual Function Auxiliary High Beam Driving Light Bar (part 920413) is a black, 20 inch bar with a driving beam pattern. Rigid says its SAE compliant fog lights and auxiliary high beam driving lights can be used on the road as well as off-road, so the bar is built for lawful use on public roads where local rules allow auxiliary lighting.
The optics use the patented Clarilux system, which sets the output spread and height of the beam. The LEDs produce pure daylight color for clarity on the road at night. The low-profile high-grade aluminum alloy housing has an oversized heat sink and a polycarbonate lens, which keeps the bar compact on the vehicle. The lights draw very little power for the light they project, and the back-lit branding plate can run alone or with the forward LEDs.
Key features
- SAE compliant for on-road use
- Patented Clarilux optic system
- Driving beam pattern
- Up to 50,000 useful hours

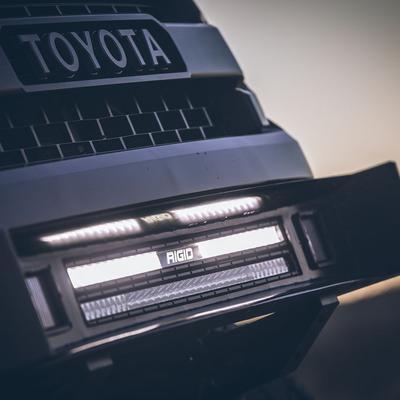

- Back-lit RIGID branding plate
- Backlight can run alone or with the forward LEDs
- Low profile high-grade aluminum alloy housing
- Oversized heat sink and polycarbonate lens
Aiming auxiliary driving lights
Aim is set by the mounting angle as well as the optic. Start with the bar level and centred on the vehicle, then adjust the tilt so the beam lands ahead of the hood rather than at the road surface. Aim should be rechecked after any change to the mounting bracket or after the vehicle has taken a hard impact.
Auxiliary driving lights are often used alongside factory headlights, so they should be set so they do not dazzle oncoming drivers. Where the bar is used on public roads, the rules for auxiliary lighting vary, and the owner is responsible for following them. Clean the lens regularly, because road grime cuts light output more than most owners expect.
- Level the bar before adjusting tilt
- Recheck aim after bracket changes
- Clean the lens with a soft cloth
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 920413 |
| Light type | LED driving light bar |

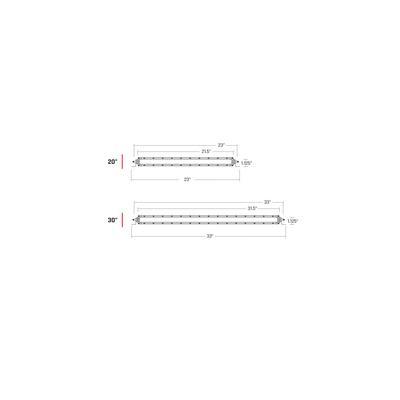

| Size | 20 inch housing |
| Beam pattern | Driving |
| Lens color | Clear |
| Finish | Black |
| Mounting | Bracket |
| Compliance | SAE compliant |
| LED life | Up to 50,000 useful hours |
| Sold as | Single |
Vehicle fitment
This bar is universal fit and is not built for one vehicle. The SAE rating concerns the bar’s lighting, not the vehicle. Check the mounting location and clearance for the 20 inch housing before drilling.
Installation notes
Connect the forward LEDs and the back-lit branding plate through a fused feed. Check local rules for SAE compliant lights on public roads before use.
What’s included
One 20 inch SR-Series dual function driving light bar with its bracket. It is sold as a single unit.
