Overview

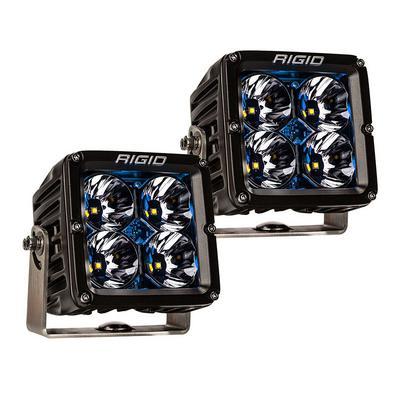

The Rigid Industries Radiance Pod XL in blue, part number RIG32202, is a set of two 4-by-4-inch LED pods with Broad Spot optics and a blue backlight. The pods belong to the Radiance lighting family and use the same LED technology and Broad Spot optics as the Radiance light bars.
Rigid rates each pod at 2992 lumens and 50 watts, with a 15-degree horizontal beam angle. The Broad Spot pattern mixes spot and flood characteristics. The pods mount on a surface, and Rigid offers the backlight in white, amber, blue and red, so the blue version is one of four choices.
The pod is sized and shaped like the D-XL PRO, and its black exposed circuit board is part of the design. The pair has a maximum voltage of 15 volts, and the set produces 500 lux at 10 meters at its rated input.
Key features
- Broad Spot optics that blend spot and flood patterns
- 2992 lumens and 50 watts per pod
- Blue backlight
- Forward projecting optics that direct the LED output
- Black exposed printed circuit board
- Multi-Trigger Harness with separate backlit rocker switches
Backlighting and accent use
Accent lighting and forward light do different jobs, and it helps to plan for both. Forward light is for seeing the trail or the work area, while a backlight sets the look of the vehicle or lights up a camp at a distance. Keeping the two on separate switches means the bright light stays off when you only want the accent. Consider how the blue glow will look against the surface it sits on, since a dark panel shows the backlight more clearly than a bright one.

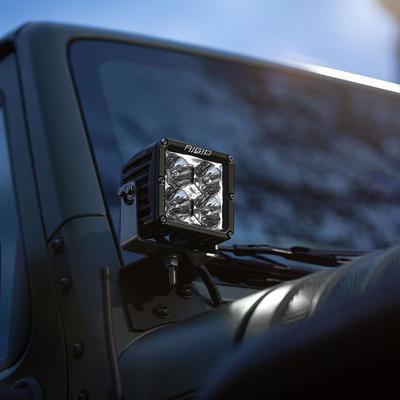

Surface-mount pods add a few choices. The cable often runs through a grommet or along a frame rail, so pick a route that keeps the wire away from rocks and standing water. Surface mounts that sit proud of the body are more exposed to branches and trail debris, so use a guard that suits the pod. Before drilling, make sure the back of the mount clears any panel, brace or wiring already under the surface.
- Keep the harness connectors dry and above the splash line
- Check that the rocker switches seat fully after installation
- Clean the lens after dust or mud exposure
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | RIG32202 |
| Series | Radiance Pod XL |
| Quantity | Set of 2 |
| Light shape | Square |
| Size | 4 inch x 4 inch |
| Backlight color | Blue |
| Beam pattern | Broad Spot |
| Horizontal beam angle | 15 degrees |
| Lumens | 2992 |
| Watts | 50 |
| Lux at 10 m | 500 |
| Maximum voltage | 15 V |
| Mounting | Surface |
Vehicle fitment
The Radiance Pod XL is a universal fit and is not made for one vehicle. Its surface mount leaves placement to the owner, so choose a spot where the blue backlight and forward light serve the job you intend.
Installation notes
Use the Multi-Trigger Harness to run the forward light and the blue backlight from separate switches. Route the cable clear of rocks and water, and wire the pods through a fused circuit. Check local rules on colored accent lighting before using them on a road vehicle.
What’s included
The set includes two pods and a Multi-Trigger Harness with backlit rocker switches.
