Rigid Industries Radiance Amber Back-Light Pods (Black) – 20204

Rigid Industries

Out of stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 9:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rigid Industries Radiance Amber back-light pod, black, part number 20204
  • Amber back-light controlled separately, 15 watts, 900 raw lumens
  • 3 inch square housing, IP68, surface mount
  • Sold as a pair, brackets included, harness sold separately

Description

Overview

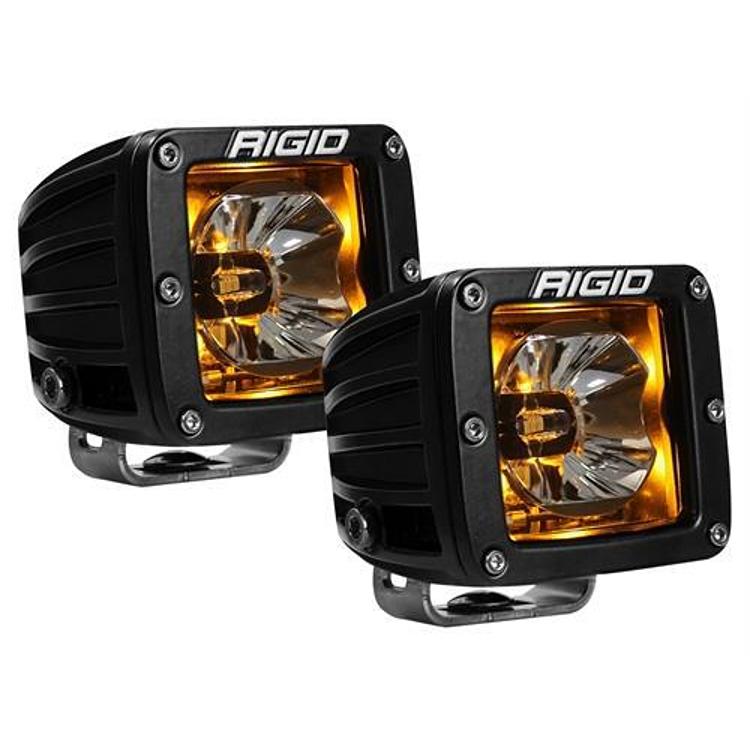

The Radiance Amber Back-Light Pod, part number 20204, is a 3 inch square black pod with an amber back-light that can be controlled on its own. It is a universal pod with no vehicle named for it. The housing uses the same high-grade aluminum alloy as the D-Series lights.

The pod has forward projecting optics for its main light and an amber back-light. It is rated at 15 watts and 900 raw lumens, draws 1 amp and has three LEDs. It is IP68 rated, with an alloy housing and heatsink, and it is sold as a pair with mounting brackets. The same design is also available with white, green, blue and red back-lights.

Key features

  • Amber back-light, independently controlled
  • Forward projecting optics
  • Black exposed printed circuit board
  • Alloy housing and heatsink
  • IP68 compliant with a high impact polycarbonate lens

Planning the power supply

Amber pods run on a low voltage DC supply, so the power source deserves attention before mounting. Tap a fused circuit that switches with the ignition or a dedicated switch, and check that the supply stays within the pod’s range when the engine is running. A voltage drop caused by thin wire or a long run can make the LEDs look dim or uneven, so keep the run short and use wire sized for the load.

Because the harness is a separate purchase, plan the cable route and connector type before ordering. Run the wire through a grommet where it passes metal, and keep it clear of hot components. Amber light is a common choice for work lighting, but check local rules on amber lighting before using the pods on public roads, since those rules vary by area.

Specifications

Brand Rigid Industries
Part number 20204
UPC 815711013368
Series Radiance Pod
Back-light Amber, independently controlled
Housing 3 inch square, black
Mounting Surface, brackets included
Voltage 9-15 V DC
Watts 15
Amp draw 1
LEDs 3
Raw lumens 900
Waterproof rating IP68
Beam Fog

Vehicle fitment

This universal pod has no year, make or model listed. Its surface mount and brackets set the fit, so choose a flat spot that suits the 3 inch square housing.

Confirm your vehicle’s year, model and trim before ordering any bracket.

Installation notes

The pod runs on 9 to 15 volts DC and needs a matching fused supply. The wiring harness is sold separately, so budget for it when planning the install, and check local rules on amber lighting before road use.

What’s included

Two Radiance Amber back-light pods with mounting brackets.

Not included: the wiring harness, which is sold separately.

SKU: RIG20204 Category:

Specification

Shipping weight 4.00 lbs
Package dimensions 9.00 × 7.00 × 7.00 in
brands

Questions & Answers

Does the Radiance Amber 20204 need a separate harness?

Yes. The wiring harness is sold separately, so buy one with the pod for a plug-in setup. The pod comes with mounting brackets.

What is the amber back-light on the 20204?

The amber back-light is controlled independently of the main light. The same pod is also available with white, green, blue and red back-lights.

What are the power specs of the 20204 pod?

The pod runs on 9 to 15 volts DC and is rated 15 watts with an amp draw of 1. It has three LEDs and 900 raw lumens, and it is IP68 rated.

How do I tell whether a back-light pod is getting enough power?

Check the voltage at the pod with the engine running and confirm it stays within the 9 to 15 volt DC range. A dim or flickering pod usually points to thin wire, a loose connector or a weak ground rather than the LEDs.
