Overview

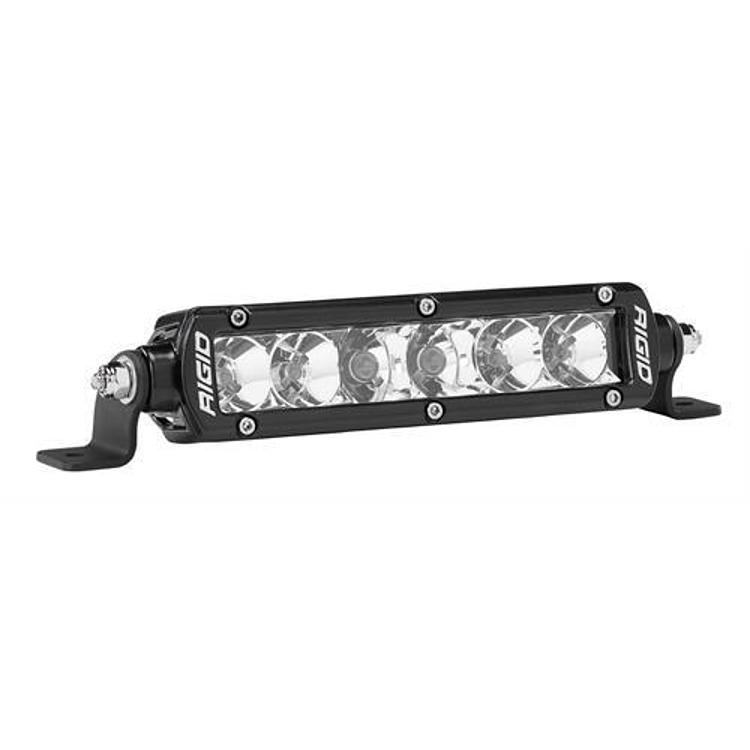

The SR-Series single row bar is a 6-inch light with a combination beam. The hybrid optics produce a 10-degree spot and a 20-degree flood, so the bar lights both the distance and the area close to the vehicle.
The bar runs on a 7 to 36 VDC input and uses low power. It has a 50,000-hour rated life, compared with about 1,000 hours for halogen and 5,000 hours for xenon, and it starts instantly with no hot spots or bouncing beams. The kit includes a plug-and-play wiring harness, a switch and a cast bracket.
Key features
- 10-degree spot and 20-degree flood combo beam
- Patented hybrid optics
- 6-inch single-row bar
- Input from 7 to 36 VDC
- IP68 rating
- Plug-and-play wiring harness, switch and cast bracket
Choosing a combo beam setup
A combo beam covers two jobs with one bar. The 10-degree spot carries light down the trail for speed and visibility at distance, while the 20-degree flood fills the near area around the front tires and the edges of the path. Consider how you drive at night before choosing a combo, since a single bar with both patterns can serve both needs but will not match a dedicated spot and a dedicated flood side by side.
Wire the bar through a fused circuit that matches the load, and mount the bracket where the harness reaches without strain. Dust-tight sealing helps with rain and washing, but any seal can be damaged by a cracked lens or a loose cover, so inspect them after rough runs. Clean the lens with mild soap and water to keep the output even over time.
Specifications
| Brand | Rigid Industries |
|---|---|
| UPC | 849774029745 |
| Series | SR-Series Single Row |
| Light type | LED light bar, sold as a 2-piece kit |
| Size | 6 inch |
| LED count | 6 white LEDs |
| Beam pattern | Combo: 10-degree spot, 20-degree flood |
| Input voltage | 7 to 36 VDC |
| Rated life | 50,000 hours |
| Ingress rating | IP68 |
| Mounting | Bracket |
| Finish | Black, polyester powder coat |
Vehicle fitment
It is a universal fit rather than a bar built for one vehicle. The cast bracket and plug-and-play harness let the owner set the 6-inch bar where it suits the vehicle.
Installation notes
Secure the cast bracket before wiring, and use the included harness and switch. Keep the cable clear of moving parts and heat, and check local rules on driving lights before using the bar on a road vehicle.
What’s included
The 2-piece kit includes the 6-inch bar, the plug-and-play wiring harness and switch, and the cast bracket.
