Overview

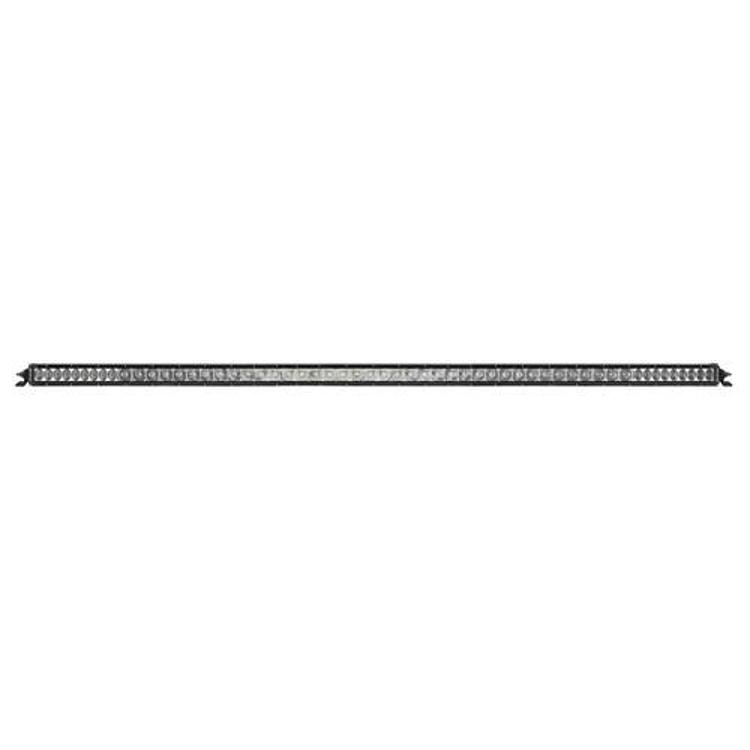

The Rigid Industries SR-Series Pro 50 Inch Light Bar in a driving/spot combo, part number 951314, is a single row LED light bar. Rigid rates it at 334 watts, with 56 LEDs, a 23.86 amp draw and 35112 raw lumens. It is a universal light bar and no vehicle is named for it.
The SR-Series PRO is a sleek, low profile bar under 2 inches tall, with up to 111% more raw lumens than earlier versions. It uses a single row of LEDs with a choice of hybrid or patented Specter optics, and it has a beam distance of 767 m. The bars come in black or white powder coated finishes, and this one is black.
The combo pattern pairs a broad driving beam with a narrow spot, covering the trail near the vehicle and the distance ahead. The bar comes up to full brightness as soon as it is switched on. It is designed to project light at long distances while using very little power, and it is assembled in the USA.
Key features
- Driving/spot combo beam
- Single row of 56 LEDs
- Under 2 inches tall
- Patented Specter optics
- Instant on and off with no warm up
- Durable polycarbonate lens
Wiring a high-draw bar
A bar with this draw needs a heavy-duty fused circuit, and the wire gauge should match the length of the run as well as the current. Keep the power feed short, mount the relay near the battery, and use a clean ground to the frame or a dedicated ground point. Voltage drop at the bar shows up as dimmer, uneven light, so a poor ground is often behind a complaint about output rather than the LEDs themselves.
Long bars and combo patterns are often chosen for trail and desert driving, where the spot reaches far ahead and the driving beam lights the trail close in. Those uses also mean repeated shock and dust, so inspect the seal and lens after each trip, clean the lens gently and look for moisture inside the housing. Keeping the wiring clipped and away from bracket edges prevents chafing over time.
Specifications
| Brand | Rigid Industries |
|---|---|
| Part number | 951314 |
| UPC | 849774031571 |
| Series | SR-Series Pro 50 inch light bar |
| Size | 50 inch |
| Beam pattern | Driving/spot combo |
| Watts | 334 |
| Amp draw | 23.86 |
| LEDs | 56 |
| Raw lumens | 35112 |
| Beam distance | 767 m |
| Lifespan | 50,000+ hours |
| Lens | Clear, durable polycarbonate |
| Finish | Black |
Vehicle fitment
No year, make or model is named for this universal light bar. A 50 inch bar needs a long mounting surface with enough room for the bracket, so check that before ordering.
Confirm your vehicle’s year, model and trim before ordering any bracket.
Installation notes
The 23.86 amp draw means the bar needs a heavy-duty fused circuit and a relay. Local road-use rules should also be checked before the bar is driven with the lights on.
What’s included
One 50 inch SR-Series Pro driving/spot combo light bar in black.
