Overview
The Artec Industries JK6031 is a front Dana 60 swap kit for 2007–2016 Jeep Wrangler (JK) 2-door and 4-door models. The design is drawn around Ford 3/4 and 1 ton Dana 60s from model years 85–97, and Superduty kits are still in development.

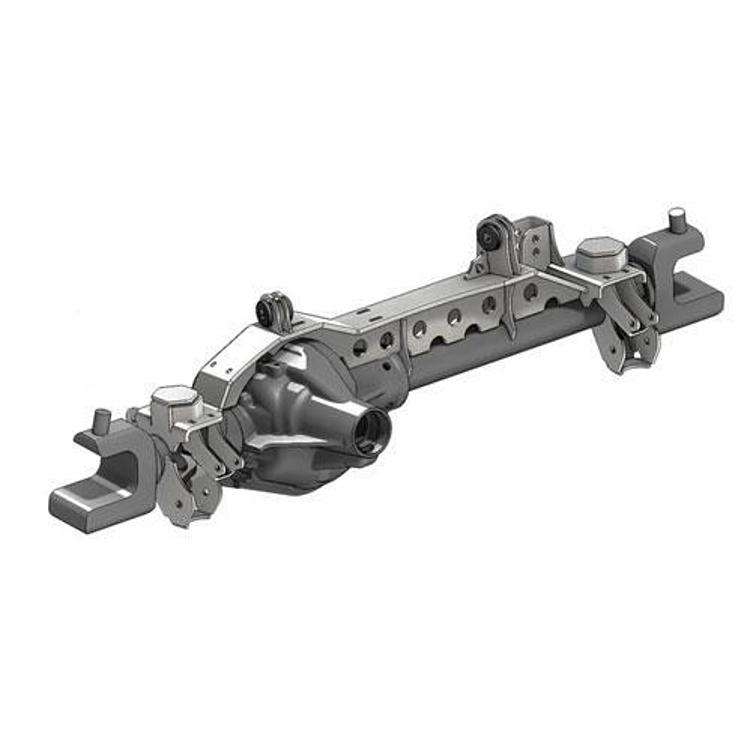

The kit is a 1/4 in. thick mild steel truss and bracket system with interlocked 1/4 in. gussets. Its brackets are jigged into the truss so they set the upper and lower control arm, shock, anti-sway bar, track bar and coil spring positions when the truss is assembled.
Key features
- 1/4 in. thick mild steel truss and brackets
- Interlocked 1/4 in. gussets for truss strength
- Brackets for upper and lower control arms, shocks, anti-sway bar and coil springs
- Track bar mount with four locations for aftermarket lifts
- Design can be updated for future link geometry changes
Planning a Dana 60 front conversion
A front axle swap changes many parts at once. Control arm mounts, the track bar, steering and brakes all depend on axle geometry, so the swap is a full suspension job rather than a single bracket install. Plan the brake lines, steering linkage and wheel offset before cutting anything, and confirm the axle works with your tire plan.
Dana 60 front axles are heavy, so the truss and mounts carry more load than stock. Check the truss welds and bolted joints after the first drives, and look for cracks near gussets or mount points. Driveline angles also change, so inspect the driveshaft and the transfer case output after the swap.
- Plan brake line and steering linkage changes
- Check track bar length and bumpstop clearance
- Confirm wheel offset and tire clearance
- Inspect truss welds and mount points regularly
Specifications
| Brand | Artec Industries |
|---|---|
| Part number | JK6031 |
| UPC | 816791021885 |
| Axle | Front Dana 60 |
| Axle named in title | Superduty, 1999–2004 |
| Truss and brackets | 1/4 in. thick mild steel |
| Axle tube check | 3.0 in. driver side, 24.5 in. passenger side |
| Wheel bolt pattern | Dana 60 does not match the JK 5-lug pattern |
Vehicle fitment
The fitment covers the 2007–2016 Jeep Wrangler (JK) in 2-door and 4-door models, including the 70th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims and their Unlimited versions.
Ford Dana 60 axles from model years 85–91.5 (kingpin) and 92–97 (ball joint) fit this kit’s design. Confirm the axle year before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the axle before buying the kit: it should be a Dana 60, with 3.0 in. of driver side axle tube and 24.5 in. of passenger side axle tube.
Dana 60 axles do not match the factory JK 5-lug wheel bolt pattern, so new wheels will be needed.
The lower control arm brackets are wider than factory because of the larger Dana 60 casting, so the lower control arms may need modification. The upper control arm brackets sit slightly higher than stock, so adjustable arms may be needed.
The steering on a Dana 60 differs from the factory axle, so bumpstop extensions and a new track bar will likely be needed, and a kingpin axle allows high steer arms to be used.
What’s included
The truss, the brackets for the control arms, shocks, anti-sway bar, track bar and coil springs, and their mounts. The title also names Daystar bushings.
Not included: Brake and steering components, and new wheels for the Dana 60 bolt pattern.
