Overview

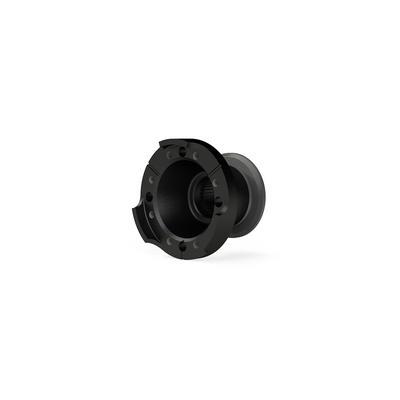

This is the rear axle pinion yoke for the TeraFlex High-Angle Rzeppa CV drive shaft conversion. It is one of the parts that make up that conversion at the rear end.
It is intended for vehicles with a 3 to 6 inch lift, and the dust shield is included.
Key features
- Rear axle pinion yoke for the high-angle CV drive shaft conversion
- Dust shield included
- Designed for models with a 3-6 inch lift
Pinion yoke and conversion parts
The pinion yoke is the link between the rear axle and the driveshaft, so its fit and condition affect vibration, U-joint life and the seal at the axle. When a lift changes the pinion angle, the yoke and the driveshaft need to be checked together. Small changes in angle can show up as vibration that seems to come from the driveshaft itself.
The pinion nut and seal should be inspected when the yoke is installed, and the nut should be torqued to the value given in the vehicle’s service information. A dust shield keeps road debris out of the seal area, so it should be checked for damage and proper seating during each service.
- Check the pinion seal for weeping after the install
- Inspect the dust shield for bends or cracks
- Recheck driveline angles after any lift change
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | TER1959310 |
| Position | Rear axle |
| Use | High-Angle Rzeppa CV drive shaft conversion |
| Dust shield | Included |
Vehicle fitment
It fits 2007–2018 Jeep Wrangler (JK) two-door and four-door models, 2004–2006 Wrangler (LJ) Unlimited and 1997–2006 Wrangler (TJ) models.
Confirm fit for your vehicle’s year, model and trim before ordering, especially for Wrangler YJ, Cherokee and Gladiator vehicles.
What’s included
The rear pinion yoke with its dust shield.
