TeraFlex Front Axle Pinion Yoke for High-Angle CV Drive Shaft – 1959210

TeraFlex

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • TeraFlex front axle pinion yoke for a high-angle CV drive shaft conversion
  • Needed with the TeraFlex High-Angle Rzeppa CV drive shaft conversion
  • For 2007–2018 Jeep Wrangler JK, 2-door and 4-door, with a 3-6 inch lift
  • Dust shield included

Description

Overview

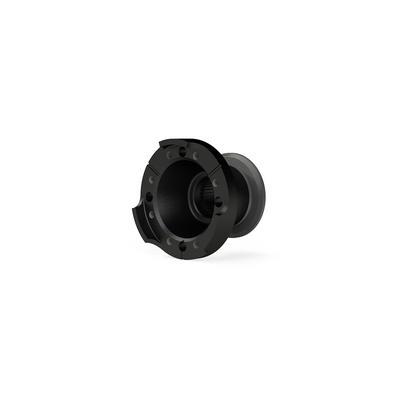

The TeraFlex 1959210 is a front axle pinion yoke for the TeraFlex High-Angle Rzeppa CV drive shaft conversion. It fits 2007–2018 Jeep Wrangler (JK) models, both 2-door and 4-door, and 1997–2006 Jeep Wrangler (TJ) and 2004–2006 Jeep Wrangler (LJ) models with the conversion.

The yoke is required for the high-angle CV conversion and is meant for models with a 3 to 6 inch lift. A dust shield comes with the yoke.

Key features

  • Front axle pinion yoke for the high-angle CV drive shaft conversion
  • Dust shield included
  • Designed for models with a 3-6 inch lift

Axle angles and CV conversions

A high-angle CV conversion changes the driveline geometry at the front axle. Lifting the vehicle raises the angle between the transfer case and the axle, and a conventional u-joint at that angle can vibrate, bind or wear quickly. A CV joint handles higher angles with a smoother rotation, which is why the pinion yoke and drive shaft are usually changed together rather than mixed with stock parts.

Check the full driveline after installation. Measure shaft length and clearance at full suspension travel and full steering lock, since a longer or shorter shaft can bottom out or pull apart. The dust shield protects the joint from grit, so keep it in place and inspect the boot and seal during regular service. Lubricate the joint at the interval the conversion requires.

Tire size and gearing also affect how the driveline works, so a change in either calls for a fresh look at the setup.

  • Install the yoke with the matching CV drive shaft
  • Check driveline angle after each lift change
  • Inspect the dust shield for tears or missing hardware
  • Recheck driveline fasteners after the first drives

Specifications

Brand TeraFlex
Part number TER1959210
Position Front axle
Use High-Angle Rzeppa CV drive shaft conversion
Dust shield Included

Vehicle fitment

It fits 2007–2018 Jeep Wrangler (JK) in 2-door and 4-door versions, 2004–2006 Jeep Wrangler (LJ) Unlimited models, and 1997–2006 Jeep Wrangler (TJ) models.

Check your year, model and trim against the Wrangler models named above before ordering, since the yoke is intended for those vehicles.

What’s included

The pinion yoke with its dust shield.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–2006Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the TeraFlex 1959210 fit a 2015 Jeep Wrangler JK?

Yes. It fits 2007–2018 Jeep Wrangler (JK) models in 2-door and 4-door versions, so a 2015 JK is covered. It is meant for the high-angle CV drive shaft conversion on models with a 3 to 6 inch lift.

Does the yoke include a dust shield?

Yes. The dust shield is included with the TeraFlex 1959210 pinion yoke, which is used with the high-angle Rzeppa CV drive shaft conversion.

What lift height is this yoke for?

It is meant for models with a 3 to 6 inch lift that use the TeraFlex High-Angle Rzeppa CV drive shaft conversion. Confirm the lift height on your vehicle before installing the yoke.

Can the yoke be used without the CV drive shaft?

The yoke is used with the high-angle Rzeppa CV drive shaft conversion, so it is intended to work as part of that setup. Mixing it with a standard drive shaft can leave the joints at angles they were not designed for, so confirm the parts match before installing.
