TeraFlex High-Angle Rzeppa CV Rear Drive Shaft – 4612362

TeraFlex

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • High-angle Rzeppa CV rear driveshaft for 2012–2018 Jeep Wrangler JK two-door
  • Carbon steel tube, laser welded at 2-3/8 inch diameter
  • Built for lifts of 3 inches or more
  • Extended length, direct fit
  • Part number TER4612362

Description

Overview

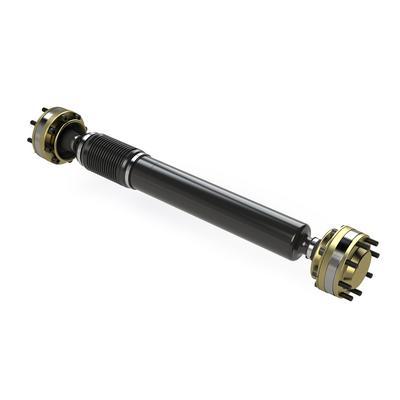

The TeraFlex High-Angle Rzeppa CV Rear Drive Shaft, part TER4612362, is a rear driveshaft for the 2012–2018 Jeep Wrangler JK two-door. It combines a CV joint’s smooth torque transfer with the angle tolerance of a U-joint style shaft, and TeraFlex built it for the extreme angles that come with larger lifts.

The shaft uses a Rzeppa CV joint with a high-angle boot and laser-welded carbon steel tubing. Each shaft is zeroed out at assembly for a centric fit, so the tube runs true at speed without added balance weights.

The joint is the part of the shaft that changes most when a lift raises the driveline angles. A Rzeppa CV joint is designed to keep the rotation smooth through those angles, which is why TeraFlex chose it for lifted JK builds with a lift of 3 inches or more. The fitment entry covers two-door JK models for 2012 through 2018, and the shaft is built for the rear position on those vehicles.

Key features

  • Rzeppa CV joint with a high-angle boot
  • Laser-welded carbon steel tube at 2-3/8 inches
  • Assembled to run without balance weights
  • Designed to reduce harmonic vibration.
  • Extended length, direct fit

Driveline angles and lifts

A rear driveshaft transfers power from the transmission and transfer case to the axle, and its joints must handle changing angles as the suspension moves. A lift raises the axle and increases those angles, which is why the joint design matters on lifted vehicles. CV joints run smoothly through angles, while U-joints can vibrate when angles get steep.

After installing a lift, check the angle at the transmission and axle ends while the vehicle is at ride height and under load. Look for vibration at speed, clunks when shifting, or grease leaking from the boot, since these can signal wear. Inspect the boot regularly and replace it if it tears, because dirt in a CV joint can shorten its life.

Specifications

Brand TeraFlex
Part number TER4612362
Position Rear
Length Extended
Joint type CV, Rzeppa with high-angle boot
Tubing Laser-welded carbon steel, 2-3/8 inch
Balance Zeroed out, no balance weights needed
Slip yoke eliminator Not required
Fitment type Direct fit

Vehicle fitment

It fits the 2012–2018 Jeep Wrangler (JK) two-door models in the rear position.

Four-door Wrangler Unlimited models are not covered, and the JL and JT generations are not covered. Confirm fit for your year, model and trim before choosing this part.

Installation notes

The high-angle design matters most on JK models with a lift of 3 inches or more. Check joint angles after installing a lift, since this shaft is made to handle them.

What’s included

One rear driveshaft assembly with its CV joint and boot.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2012–201875th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is the TER4612362 the same shaft as the TER4612302?

The TER4612362 uses a Rzeppa CV joint with a high-angle boot. Compare the part number exactly against your parts catalog, since similar numbers can differ in design.

Does this shaft fit a four-door JK Unlimited?

No. The fit covers two-door JK models from 2012 to 2018, and four-door Unlimited models are not covered. Confirm the body style before choosing this part.

Will this rear shaft need a slip yoke eliminator?

No. This shaft does not need a slip yoke eliminator, so the transmission end connects without one. Check the transmission end against the shaft before installing.

How often should a CV driveshaft boot be inspected?

Inspect the boot during routine checks and after rough trail use, looking for tears, cracks or grease leaks. Replace a damaged boot promptly, since dirt entering the joint can shorten its service life and cause vibration.
