Overview
The Dana Spicer 706017-10X is a Dana 44 ring and pinion kit with a 4.27 gear ratio. It is for front or rear axle location, and the gears match the design used in Dana 44 axles from the factory.
The 4.27 ratio is one choice among several available in this gear line. The kit fits a wide range of trucks, vans and Jeep models from the 1970s through the 2000s.
Key features
- Dana 44 ring and pinion, 4.27 gear ratio
- Front or rear axle location
- Matches the factory gear design for Dana 44 axles
Gear setup and speedometer
A ring and pinion set changes how the axle turns the wheels for every revolution of the driveshaft, so the gears should be set up with backlash and tooth contact checked. Good contact patterns keep the gears quiet and help them last. The new ratio also changes how fast the wheels spin at a given engine speed, so it can affect the speedometer reading and the feel of the vehicle at highway speed.
Tire size changes the effect of the ratio, so a taller or shorter tire moves the same gears in a different way. Many owners pair a new ratio with a matching speedometer gear or an electronic calibration, and they check the drive gear after the first road test. Use the gear oil the axle requires, and expect a break-in period while the new gears settle.
- Check backlash and tooth contact before installation
- Match the speedometer drive gear to the new ratio
- Recheck the fasteners after the first road test
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 706017-10X |
| Axle type | Dana 44 |
| Axle location | Rear or front |
| Position | Front |
| Gear ratio | 4.27 |
Vehicle fitment
It fits 1973–1980 Chevrolet and GMC K-series and C-series pickups and Suburbans, 1975–1980 Chevrolet K5 Blazers, Dodge W-series pickups from 1973 to 1993, Dodge Ram 1500 and 2500 models from 1994 to 2002, 1973–1977 Ford F-100 and F-250 trucks, and Ford E-series vans. Jeep models include the 1974–1983 CJ5, the 1986–1993 Cherokee XJ, the 1997–2006 Wrangler TJ and the 2004–2006 Wrangler LJ. Confirm fit for your vehicle’s year, model and trim before ordering.
The Wrangler YJ and JK are not in this list, so check the year and model before ordering.
Installation notes
A ring and pinion should be set up by a professional, including backlash and tooth contact checks, and a new gear ratio changes the speedometer reading, so the speedometer drive gear may need matching.

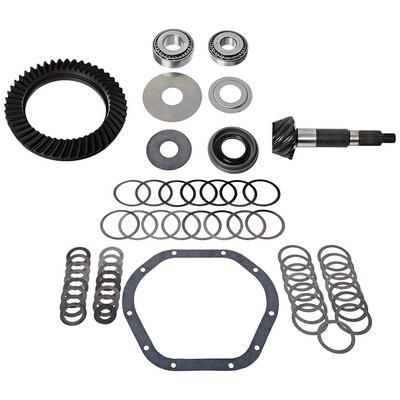

What’s included
The ring and pinion kit. Check the package contents against your installation before starting.
