Overview

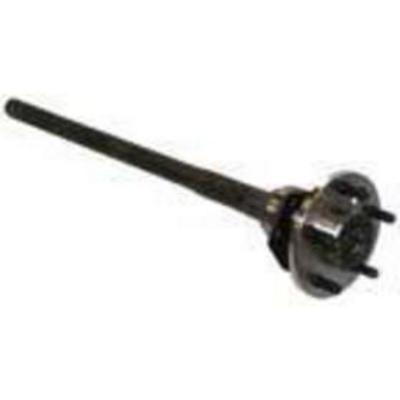

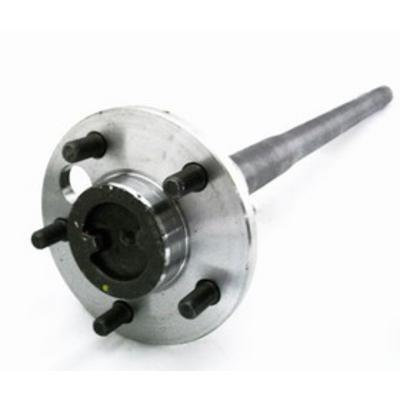

The Dana Spicer 75786-2X is a rear left driver side Dana 44 axle shaft with 30 splines. It fits 2000–2001 Jeep Cherokee (XJ) in Classic, Limited, SE and Sport trim, and 1997–2002 Jeep Wrangler (TJ) in SE, Sahara, Sport and X trim.
Dana Spicer describes these as O.E replacement shafts for popular factory applications, so the design follows the shaft that came with the vehicle.
Key features
- Rear left driver side position
- Dana 44 axle type
- 30 splines
- O.E replacement design
Replacing a rear axle shaft
A rear axle shaft transfers drive torque from the differential to the wheel, and on many Dana 44 setups it also carries the wheel bearing load. Wear commonly shows up as clicking on turns, vibration under acceleration, or a wheel bearing that whines or gets warm. A shaft with worn splines can slip under load, so check the spline fit before driving.
When replacing a rear shaft, inspect the axle seal, bearing and retainer while the shaft is out. A seal that has started to leak can let contamination reach the bearing, so it is often replaced at the same time. Clean the splines and flange, and confirm the shaft seats fully before reassembly. Keep the rear differential fluid at the proper level after the work is finished.
- Inspect the splines for twisting or wear
- Check the bearing for heat or whine
- Replace the seal while the shaft is out
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 75786-2X |
| Axle maker | Dana |
| Axle location | Rear |
| Axle shaft location | Driver side |
| Position | Rear left |
| Axle type | Dana 44 |
| Axle spline | 30 splines |
Vehicle fitment
It fits 2000–2001 Jeep Cherokee (XJ) in Classic, Limited, SE and Sport trim, and 1997–2002 Jeep Wrangler (TJ) in SE, Sahara, Sport and X trim. Compare the spline count and rear left position with the axle being replaced before fitting. Confirm fit for your vehicle’s year, model and trim before ordering.
Compare the spline count and rear left position with the axle being replaced before fitting.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear left driver side axle shaft.
