Overview

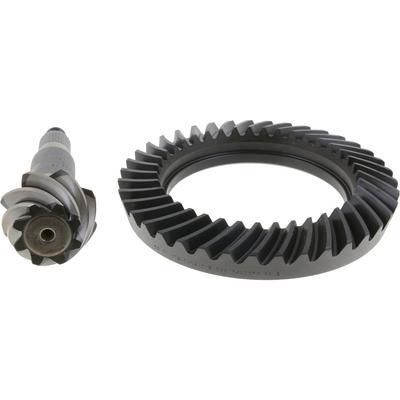

The Dana Spicer 25334X is a Dana 60 ring and pinion kit with a 4.88 gear ratio. It fits the rear position, with an axle location that can be front or rear, and it is genuine Spicer gearing.
Dana Spicer genuine parts are designed, engineered, tested and manufactured to work together, which gives the kit a matched fit with other Dana parts. It fits vans and trucks from the 1970s through the 2000s, along with the 1975–1976 Jeep Wagoneer.
Key features
- Dana 60 ring and pinion kit
- 4.88 gear ratio
- Rear position, with a front or rear axle location
- Genuine Spicer design, engineering and testing
Setup and break-in
A new ring and pinion needs careful setup before it runs quietly. Gear mesh, backlash and bearing preload all affect how the set wears in, and the pinion depth is usually checked before the carrier is closed. Gears installed with poor contact tend to whine or wear quickly, so the tooth pattern should be checked with marking compound before the axle goes back in service.
Ring and pinion work is often done with new carrier bearings, a pinion seal and fresh gear oil, since these parts age along with the gearset. Use the gear oil type recommended for the axle and follow the break-in guidance for the new set. Driving gently in the first miles lets the teeth seat properly, and the setup should be rechecked if noise appears.
- Check pinion depth and backlash before final assembly
- Replace carrier bearings and pinion seal with the gearset
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 25334X |
| Axle | Dana 60 |
| Position | Rear |
| Axle location | Front or rear |
| Gear ratio | 4.88 |
Vehicle fitment
It fits Dodge B-, D- and W-series vans and trucks from 1974 to 1998, Dodge Ram 1500, 2500 and 3500 models from 1994 to 2006, Ford E-series vans from 1975 to 2014, Ford F-250 and F-350 trucks from 1974 to 1986, GMC G-series and K-series vans and trucks from 1975 to 1991, Savana 2500 vans from 2003 to 2013, Chevrolet Express 2500 vans from 2003 to 2009, and the 1975–1976 Jeep Wagoneer (SJ). Confirm your vehicle’s year, model and trim before ordering.
Wrangler and Cherokee models are not in this list, apart from the Wagoneer.
Installation notes
Dana 60 gearing should be installed and set up by a professional, with backlash and tooth contact checked. A ratio change also alters the speedometer reading.
What’s included
The ring and pinion kit. Check the package contents against your installation before starting.
