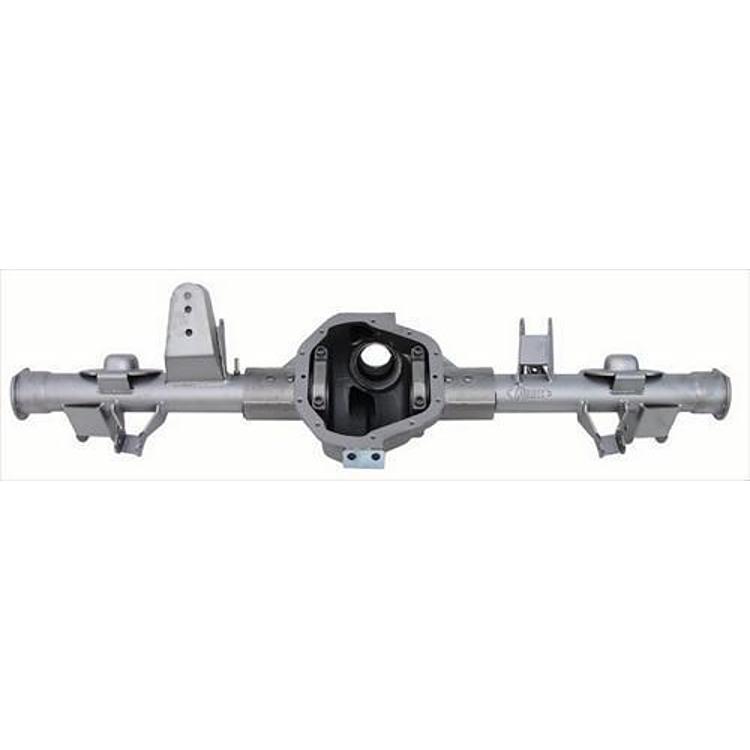

Currie Jeep TJ RockJock Dana 60 III Rear End Housing – TJ-RJIIIR4

Currie

Shop Jeep Wrangler TJ Axle Housing on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Currie RockJock Dana 60 III rear housing for Jeep TJ, part TJ-RJIIIR4
  • Welded brackets, meant to bolt in place of the factory housing
  • Dana 60 housing type, rear position
  • Jeep TJ (1997-2006) taken from the product name

Description

Overview

The Currie TJ-RJIIIR4 is a RockJock Dana 60 III rear axle housing, part number TJ-RJIIIR4, for the Jeep TJ. It is a heavy duty housing with brackets welded in place and is designed to bolt in where the factory housing sits.

The housing is a base for a custom axle build, so you fit the internal components you choose. It is designed to take your own gears, shafts and bearings.

Key features

  • Heavy duty housing.
  • Brackets welded in place
  • Designed to bolt in place of the factory housing
  • Room to build the axle with your own internal parts

Building the axle around the housing

A bare Dana 60 housing gives you a solid starting point. The gears, carrier, pinion, bearings and seals are fitted by you, so the finished axle is only as good as the parts chosen and the way they are assembled. Ring and pinion backlash and contact pattern are the first checks before the housing is closed up.

Once the housing is in the vehicle, the pinion angle and driveline geometry need attention, because a housing swap changes both. Check the axle shaft ends, brake hardware and parking brake routing as well. Keep the brackets clear of stress when you tighten the housing bolts, and recheck the fasteners after the first drives.

  • Gear set matched to the carrier
  • Bearings and seals sized for this housing
  • Pinion angle set after installation
  • Brake lines routed clear of the axle

Specifications

Brand Currie
Part number TJ-RJIIIR4
UPC 700000489461
Position Rear
Housing type Dana 60
Product line RockJock Dana 60 III
Fitment field Universal fit, per brand

Vehicle fitment

It is intended for the 1997-2006 Jeep Wrangler (TJ). It is universal fit, so confirm the match with your axle setup before ordering.

Jeep JK and JL Wrangler models are a different chassis and are not covered by the TJ name. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Have mounting bolts and tools ready before starting, since they are not included. Support the housing on stands, not on the brackets, while it is positioned.

What’s included

The housing ships with its welded brackets. Gears, shafts, bearings and hardware are not included.

Not included: Internal axle components and bolts are needed as separate parts.

SKU: CURTJ-RJIIIR4 Category:

Specification

Shipping weight 117.00 lbs
Package dimensions 55.50 × 19.00 × 11.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Currie TJ-RJIIIR4 fit a Jeep TJ?

Yes. It is intended for the 1997-2006 Jeep Wrangler (TJ). Its fitment is universal, so confirm the match with your axle setup and your vehicle's year, model and trim before ordering.

Is this housing a Dana 60?

Yes. It is a Dana 60 housing in the rear position, built as the RockJock Dana 60 III. It is heavy duty, with brackets welded in place.

Does it come with axle gears and shafts?

No. Gears, shafts, bearings and hardware are not included with the housing. It is a bare housing with welded brackets, ready to bolt in place of the factory housing, and you add your own internal parts.

What should I check when building the axle internals?

Match the gear set to the carrier and pinion you select, and use bearings and seals sized for this housing. Check ring and pinion backlash and contact pattern before final assembly. Set pinion angle after the housing is in the vehicle, since a bolt-in swap changes driveline geometry.
