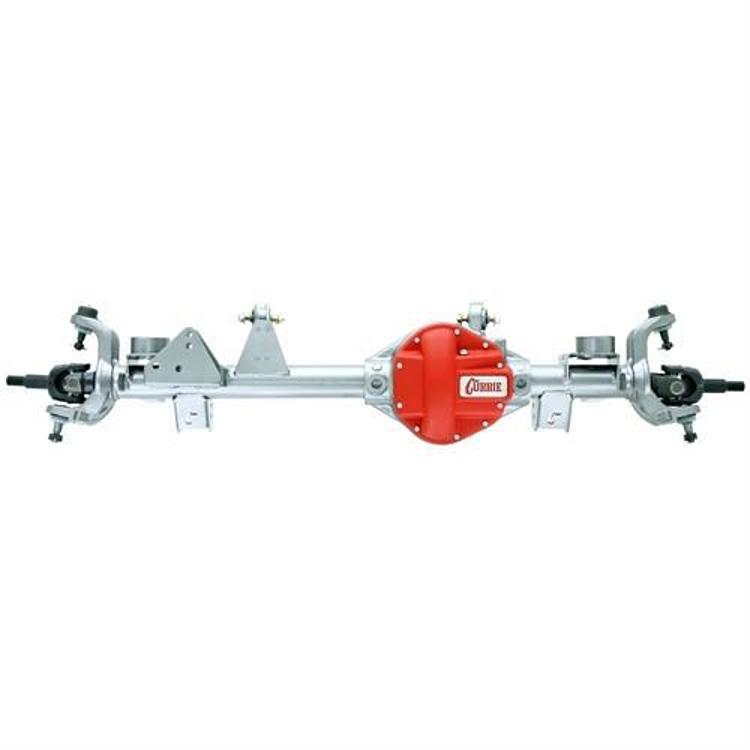

Currie RockJock 44 Front Axle Housing (Eaton Elocker – 5.13) – CE-KF4401E51

Currie

Shop Jeep Wrangler JK Axle Housing on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 44 front crate axle for the 2007-2017 Jeep Wrangler (JK)
  • Eaton Elocker, 5.13 ratio, 8.8 inch ring and pinion
  • 65.375 inch WMS, 5×5 bolt pattern, 4340 chromoly axles
  • Direct bolt-in; recommended maximum tire size 37 inch

Description

Overview

The Currie CE-KF4401E51 is a RockJock 44 front crate axle for the 2007-2017 Jeep Wrangler (JK), supplied as a complete housing with an Eaton Elocker and a 5.13 gear ratio. It has a 65.375 inch wheel mounting surface (WMS) width and a 5×5 bolt pattern with 1/2 inch studs.

The RockJock 44 front axle has a reinforced center section, large-diameter tubes and forged knuckles, designed to address the common failure points of the stock JK front axle. The nodular-iron differential cover resists rock strikes, the upper control arm mounts use rebuildable Johnny Joints for articulation, and the one-piece lower control arm mounts have integrated skid plates.

It is a direct bolt-in axle that keeps the complete stock outer knuckle assemblies, including brakes and hubs, and the stock wheel bolt pattern. Keep the maximum tire size at 37 inches, since the stock brakes, wheel bearings and axle u-joints set that limit.

Key features

  • Eaton Elocker with a 5.13 ratio
  • 4340 chromoly inner and outer axles
  • High-pinion nodular-iron center section with thicker walls and webbing
  • 8.8 inch late model JK ring and pinion set with a 1350 u-joint
  • Red nodular-iron differential cover with a gasketed fill plug and dipstick
  • 3 inch diameter, .375 wall DOM tube
  • Heavy duty forged inner knuckles with ball joints installed
  • Heavy gauge 3/16 inch laser cut steel brackets, including upper and lower control arm mounts
  • Direct bolt-in application; recommended maximum tire size 37 inch

Gearing and tire choice

A front axle with a locker and a numerically higher ratio changes how the vehicle pulls, idles and cruises. Gearing should be matched to the tire diameter and how the vehicle is used. Larger tires increase load on the brakes, wheel bearings and u-joints, so the maximum tire size recommendation should be treated as a limit.

After installation, check the cover gasket and fill plug for leaks after the first trail runs. Keep the fluid at the level called for by the axle, and inspect the axle shafts and u-joints for play at regular service intervals.

  • Match gearing to tire diameter and use
  • Keep tires within the recommended maximum
  • Check the cover gasket and fill plug for leaks
  • Inspect u-joints for play at service

Specifications

Brand Currie
Part number CE-KF4401E51
UPC 817783008310
Product type Front crate axle housing
Housing type RockJock 44
Position Front
Locker Eaton Elocker
Gear ratio 5.13
Ring and pinion 8.8 inch late model JK
Wheel mounting surface width 65.375 inch
Bolt pattern 5×5 with 1/2 inch studs
Axles 4340 chromoly inner and outer
Axle tube 3 inch diameter, .375 wall DOM
U-joint 1350
Differential cover Nodular iron, red, gasketed fill plug with dipstick
Brackets 3/16 inch laser cut steel
Maximum tire size 37 inch (recommended)
Fitment type Direct bolt-in

Vehicle fitment

The stored manufacturer fitment list for the Currie CE-KF4401E51 covers the 2007-2017 Jeep Wrangler (JK) in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X and X trims.

Only the 2007-2017 Wrangler (JK) is listed. The 2018 Wrangler JK, and other Wrangler generations such as the TJ and the JL, are not included in this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The axle swap affects brakes, driveshaft angles, steering and gearing, so professional installation is recommended. Torque every fastener to the correct specification for the application. Have the alignment, brake function and driveline angles checked afterward.

  • Support the vehicle on rated jack stands on level ground; never work under a vehicle held only by a jack.
  • Inspect nearby bushings, mounts and hardware while the area is open, and replace anything worn.
  • Re-check fastener torque after the first miles of driving, and again at regular service intervals.
  • Have the alignment checked after any suspension or steering work.
  • Confirm tire, brake line and wiring clearance through the full range of suspension travel before driving normally.

What’s included

A complete front axle housing with the Eaton Elocker, 5.13 ratio ring and pinion, inner and outer axles, forged inner knuckles with ball joints installed, differential cover, and upper and lower control arm mounts.

Not included: Outer knuckle assemblies, brakes and hubs, which are retained from the stock axle.

SKU: CURCE-KF4401E51 Category:

Specification

Shipping weight 430.00 lbs
Package dimensions 82.00 × 26.00 × 21.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201770th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What Jeep does the Currie CE-KF4401E51 axle fit?

The manufacturer list shows the 2007-2017 Jeep Wrangler (JK), including the Rubicon, Sahara, Sport and Unlimited trims. It is a direct bolt-in front crate axle for those years.

What gear ratio and locker does the CE-KF4401E51 have?

It has a 5.13 ratio and an Eaton Elocker. The ring and pinion is an 8.8 inch late model JK set with a 1350 u-joint.

What is the largest tire for the Currie RockJock 44?

Currie recommends a maximum tire size of 37 inches, due to the inherent limits of the stock brakes, wheel bearings and axle u-joints that are retained.

Do I keep my stock brakes and hubs with the CE-KF4401E51?

Yes. It is a direct bolt-in axle, so the complete stock outer knuckle assemblies, including brakes and hubs, stay in use with the stock wheel bolt pattern.

How often should the axle fluid be checked?

Check the fluid level and condition after the first trail runs, then at regular service intervals. Look for leaks at the cover gasket and fill plug, and replace the fluid if it smells burnt or shows metal particles.
