Currie RockJock 60 Rear Axle Housing (Eaton Elocker – 5.13) – CE-KR6301E51

Currie

Shop Jeep Wrangler JK Axle Housing on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear RockJock 60 axle housing, part CE-KR6301E51, with 5.13 gearing
  • Eaton E-locker and 40-spline semi-floating axles
  • AR400 hardened steel skid plate and radius-bottom center section
  • Complete rear axle assembly for 2007–2017 Jeep JK Wrangler

Description

Overview

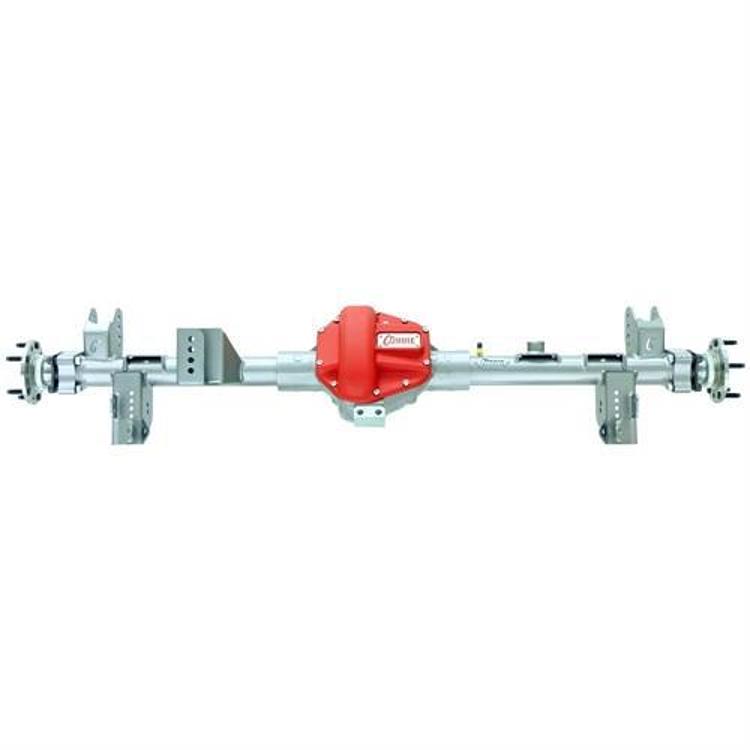

The Currie RockJock 60, part number CE-KR6301E51, is a complete high-pinion rear axle assembly for the Jeep Wrangler JK. It is built around a radius-bottom center section and comes with an Eaton E-locker and a 5.13 ratio gear set.

The RockJock 60 has a rounded bottom that slides over obstacles, a thick reinforced center section and large diameter tubes.

Key features

  • Stage-1 nodular iron high-pinion radius-bottom center section with thicker walls and webbing
  • Integrated AR400 hardened steel skid plate
  • Eaton E-locker with a 5.13 ratio
  • Semi-floating 40-spline axles, 1.7 inches in diameter
  • Standard Dana 60 gear set, compatible with super 60 reverse cut gears
  • High volume flow-thru recirculating oil system for the pinion bearings
  • Large diameter front pinion bearing matched to the rear bearing
  • JK tone rings installed for ABS and ESP retention

Gear choice and trail use

A high-pinion rear axle changes how the driveline sits under the body, so the pinion angle and driveshaft length are worth checking when a housing is swapped. Gearing decides how the vehicle pulls at low speed. A numerically higher ratio helps with crawling and climbing, but it also raises engine speed on the highway, so tire size and transmission choice shape how the setup feels day to day.

A locker works differently from an open differential. When one wheel loses grip, a locker sends power to the other side, which helps on rocks and loose surfaces. On pavement, lockers can make turns feel stiff, so many owners use them mainly off road. Fresh fluid after the break-in miles helps the gears and locker last.

Specifications

Brand Currie
Part number CE-KR6301E51
UPC 817783008518
Position Rear
Housing type RockJock 60, high pinion
Gear ratio 5.13
Locker Eaton E-locker
Axle shafts Semi-floating, 40-spline, 1.7 inches in diameter, 1350 U-joint
Tube diameter 3 inches, 0.375 wall DOM tube
Wheel mounting surface 68.750-inch WMS
Bolt pattern Dual 5×5 studs installed, holes drilled for 5×5.5
Bearings 80 tapered roller bearings
Differential cover Nodular iron with gasketed fill plug and dipstick, red
Recommended maximum tire size 37-inch

Vehicle fitment

The RockJock 60 rear housing fits the 2007–2017 Jeep Wrangler (JK), including the 70th and 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X versions, and the Unlimited versions of each.

Wrangler models from outside 2007 to 2017, including the JL and the earlier TJ, are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The package is a complete rear axle assembly that reuses the stock JK rotors, calipers and ABS wheel sensors, so the brake and sensor parts do not need to be bought separately. The recommended maximum tire size is 37 inches, and larger tires are outside the stated configuration.

What’s included

A complete rear axle assembly with the RockJock 60 housing, Eaton E-locker, 5.13 gearing and mounting brackets. The stock JK rotors, calipers and ABS wheel sensors are reused.

SKU: CURCE-KR6301E51 Category:

Specification

Shipping weight 355.00 lbs
Package dimensions 82.00 × 26.00 × 21.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201770th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RockJock 60 CE-KR6301E51 fit a 2012 Jeep Wrangler JK?

Yes. The Wrangler JK from 2007 to 2017 is covered, so a 2012 model fits. The complete assembly includes the Eaton E-locker and 5.13 gearing, and it reuses the stock JK rotors, calipers and ABS wheel sensors.

What gear ratio and locker does it have?

It has a 5.13 ratio and an Eaton E-locker. It also has 40-spline semi-floating axles and a 68.750-inch wheel mounting surface, along with the AR400 skid plate.

What is the largest tire size for this axle?

The recommended maximum tire size is 37 inches. Larger tires fall outside the set configuration, so confirm tire size before ordering.

How often should the rear axle fluid be checked?

Check the fluid level and condition at regular intervals, and more often after deep water crossings or hard off-road use. Look for metal flakes or a burnt smell, which point to wear inside the housing.
