FOX Factory Race Series Gen2 IFP 2.0 Bump Stop (Short) – 983-02-170

FOX

Shop Jeep Wrangler JK Bump Stops on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FOX Factory Race Series Gen2 IFP 2.0 short air bump stop
  • Fits 2007–2018 Jeep Wrangler JK
  • Threaded body adjusts when the stop engages on up travel
  • Internal floating piston separates oil and nitrogen
  • Replaceable strike pad protects the FOX air valve

Description

Overview

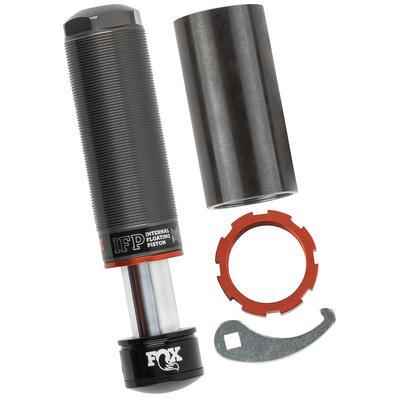

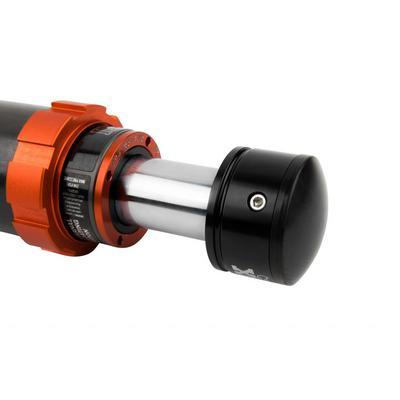

The FOX Factory Race Series Gen2 IFP 2.0 983-02-170 is a short air bump stop for the 2007–2018 Jeep Wrangler JK. It is built to control bottoming out in the last few inches of suspension travel, and it is based on FOX’s off-road racing bump stops.

The Gen2 design combines damping performance with bottom out control. The threaded body sets the height at which the stop engages on up travel, and an internal floating piston keeps the oil and nitrogen separated.

Key features

  • Threaded body for fine-tuning when the stop engages during up travel
  • Internal floating piston separates oil and nitrogen to prevent cavitation
  • Negative coil spring softens initial impacts and harsh top-outs

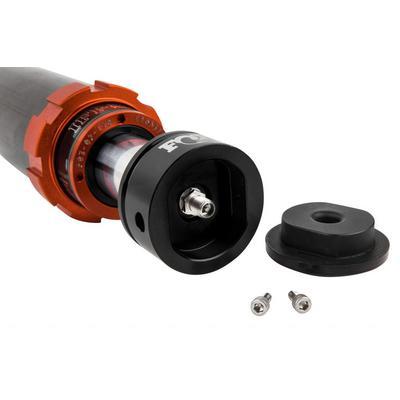

  • FOX air valve located at the bottom of the shaft for easy access
  • Replaceable strike pad protects the air valve

Setting up the stop

An air bump stop works in the last part of suspension travel, where it adds increasing resistance to prevent harsh bottoming out. The engagement point depends on the mounting height, so the threaded body is used to set when the stop begins to work. Setting it correctly is what determines how the stop feels on the trail.

Because the air valve is at the bottom of the shaft, its strike pad takes impacts and should be inspected for wear and damage. Keep the valve capped and clean, and check the stop’s behavior after long periods of use. Shock tuning and spring rate affect how often the stop engages, so review the setup with the rest of the suspension in mind.

  • Set the mounting height before the first drive
  • Inspect the strike pad for wear
  • Keep the air valve clean and capped
  • Check how often the stop engages on trail runs

Specifications

Brand FOX
Part number FOX983-02-170
Type Air bump stop
Length Short
Adjustment Threaded body for mounting height
Air valve FOX AIR VALVE, bottom of shaft, with replaceable strike pad
Fitment Direct fit

Vehicle fitment

It fits the 2007–2018 Jeep Wrangler JK in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, in both 2-door and 4-door bodies.

Wrangler JL and earlier Wrangler TJ and LJ models are not on the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The threaded body sets the height at which the stop engages on up travel, so the mounting height should be set for the desired engagement point. Because the air valve sits at the bottom of the shaft, the strike pad protects it and should be checked for wear.

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary (2-Door), 75th Anniversary (2-Door), Rubicon (2-Door), Sahara (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited 70th Anniversary (4-Door), Unlimited 75th Anniversary (4-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door), Unlimited X (4-Door), X (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 983-02-170 fit a 2016 Wrangler JK Unlimited?

Yes. It fits the 2007–2018 Wrangler JK, including the Unlimited trims in 4-door form, so 2016 is covered. Confirm fit for your vehicle's trim before ordering.

What does the threaded body do?

It lets the mounting height be changed so the stop engages at the chosen point during up travel, which helps prevent harsh bottom outs.

What is the internal floating piston for?

The internal floating piston separates the oil and nitrogen to prevent cavitation and bucking while the stop is working. Keeping those two separated helps the stop work consistently under load.

Can a bump stop be used with a lift or other suspension upgrades?

Yes, but the engagement point may need to be set again when the suspension height or spring rate changes. Recheck the stop after any upgrade so it engages where intended and does not strike the frame or axle.
