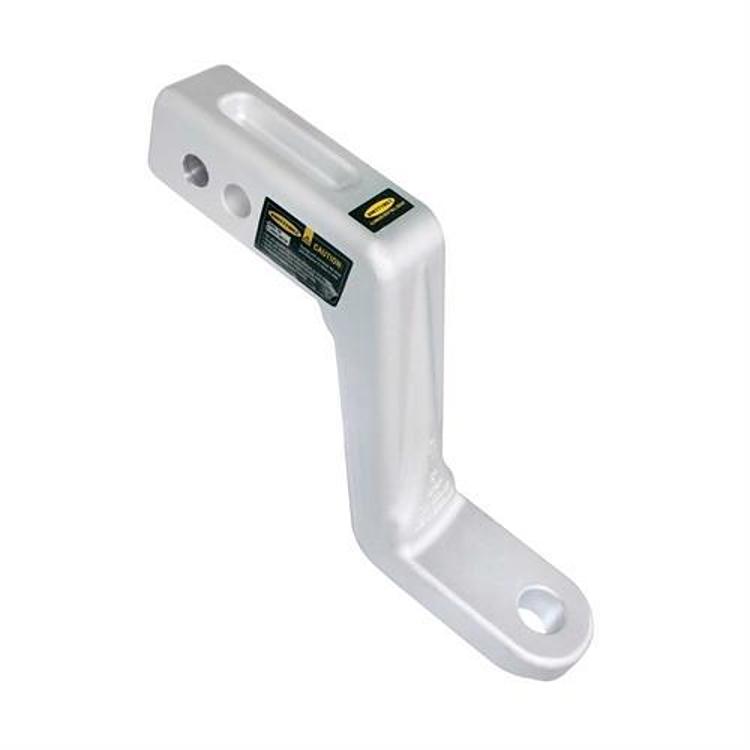

Smittybilt Aluminum 6 Inch Drop Ball Mount (Satin) – 2936

Smittybilt

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Smittybilt 6 inch drop aluminum ball mount in satin finish
  • Class 4 rated: 8,000 lbs gross trailer weight, 800 lbs tongue weight
  • 6061 aluminum, hard anodized
  • 1 inch shank hole

Description

Overview

The Smittybilt 6 inch drop aluminum ball mount in satin finish is a Class 4 ball mount for trailers up to 8,000 lbs gross trailer weight, with a tongue weight of 800 lbs. The 6 inch drop suits trailers that sit a little below the receiver height.

The mount is made from hard anodized 6061 aluminum for weather resistance and finish retention. It is forged for strength and is lighter than a steel mount.

Key features

  • 6 inch drop
  • Class 4 rating
  • Hard anodized 6061 aluminum
  • Forged construction
  • Satin finish

Choosing a drop height

The right drop depends on how far the trailer coupler sits below the receiver. Too little drop leaves the trailer nose high, while too much can leave the tongue dragging on steep dips or let the trailer sway. Measure the coupler height with the trailer parked on level ground, then compare the result with the drop before you tow.

Hitch wear usually shows first at the pin holes and where the drop meets the receiver. Check for play at the ball and clean grit from the receiver tube before inserting the shank. A light coat of grease on the shank can ease insertion, though it should not be added to the ball surface.

  • Measure coupler height on level ground
  • Clean the receiver tube before inserting
  • Check pin holes for elongation
  • Replace a mount that shows bending or cracks

Specifications

Brand Smittybilt
UPC 631410111989
Product type Drop ball mount
Material 6061 aluminum, hard anodized
Finish Satin
Drop 6 inch
Hitch class Class 4
Gross trailer weight 8,000 lbs
Tongue weight 800 lbs
Shank size 2 inches x 2 inches
Shank hole 1 inch

Vehicle fitment

This mount is not tied to a specific vehicle, and no model years are listed. It is sized for a 2 inch receiver, so confirm the receiver on your vehicle before ordering.

Confirm the receiver size and weight rating against your vehicle and trailer before ordering.

Installation notes

Measure the height of your trailer coupler against the receiver before choosing between this 6 inch drop and a longer drop. Keep the trailer within the Class 4 limits of 8,000 lbs gross trailer weight and 800 lbs tongue weight.

SKU: S/B2936 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 17.00 × 6.00 × 3.00 in
brands

Questions & Answers

What drop height does this mount have?

The drop is 6 inches. Check the drop height against your trailer's coupler and the receiver before ordering, since the drop sets how high the ball sits when towing.

What weight can it tow?

It is Class 4 rated to 8,000 lbs gross trailer weight, with an 800 lb tongue weight. Keep the trailer and tongue loads within those limits.

Does it fit a 2 inch receiver?

Yes. The shank size is 2 inches by 2 inches, which is the receiver size the mount is designed for. Measure your receiver to confirm the match.

How do you tell if the hitch is worn?

Look for cracks around welds, bends in the drop, loose pins, and play at the ball. Replace a mount showing any of these, since aluminum fatigue damage can be hard to see and grows under load.
