Overview

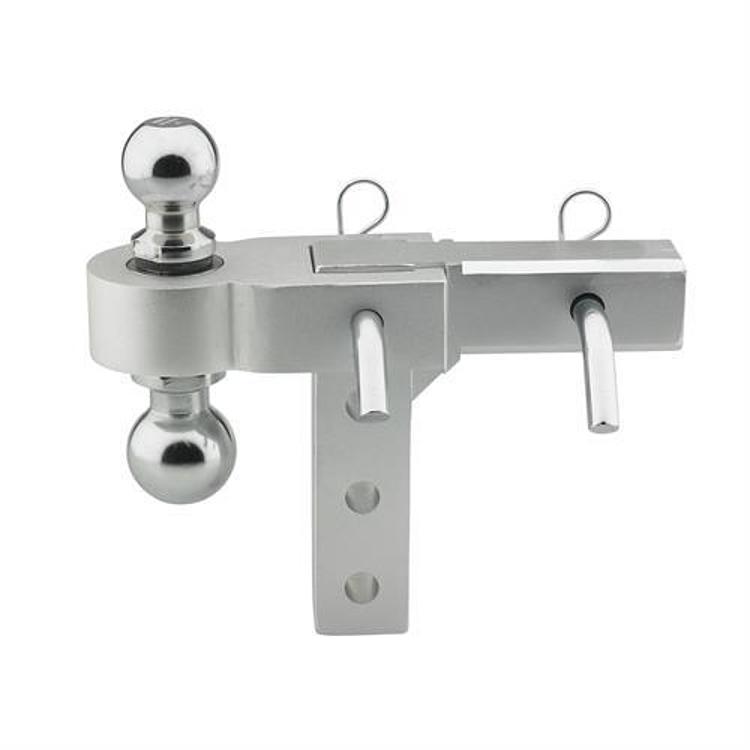

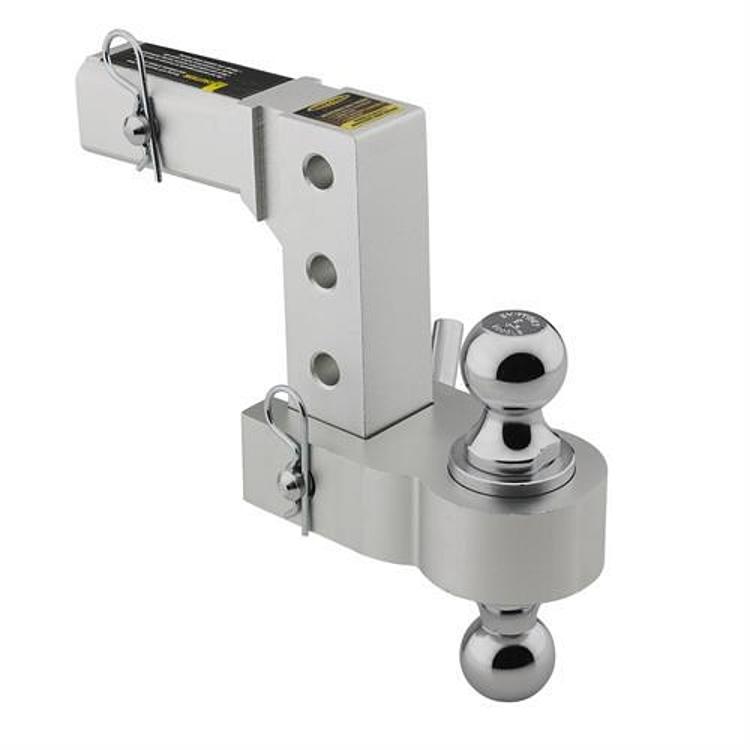

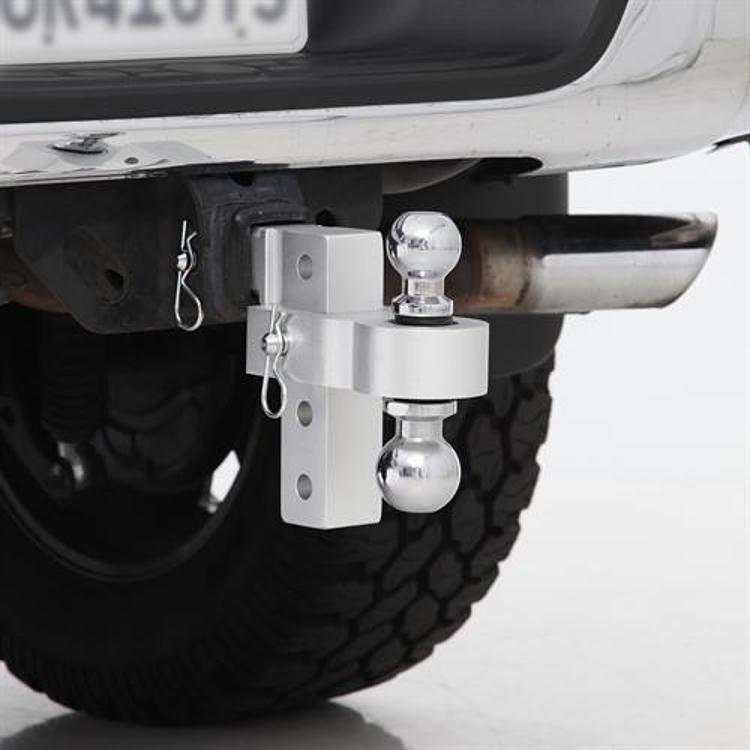

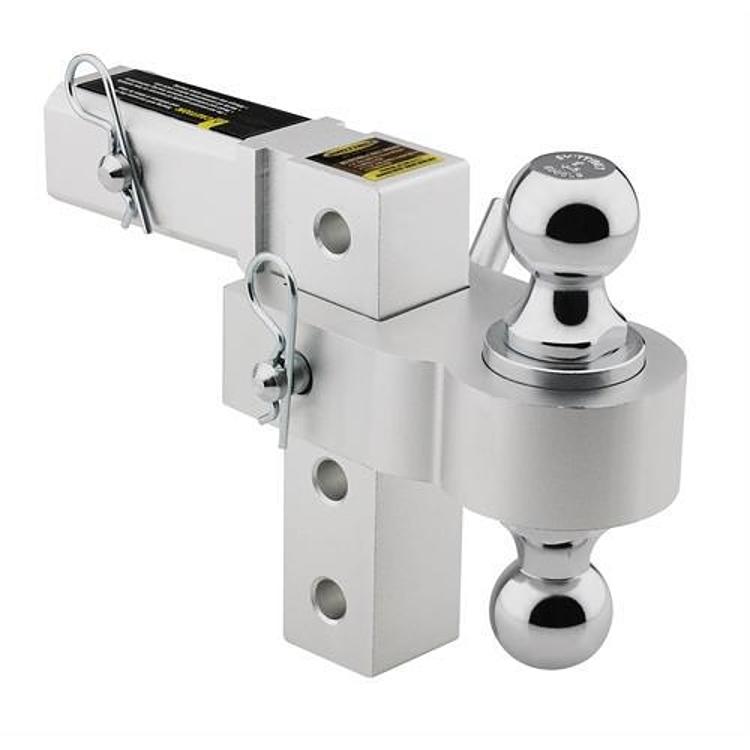

The Smittybilt adjustable aluminum ball mount in satin finish is a 2 inch receiver hitch with a 6 inch adjustable drop. It takes 2 inch and 1-7/8 inch balls and carries a 6000 lbs rating with a 600 lbs tongue weight rating.
The adjustable design lets one ball mount work with several trailers, so separate fixed mounts are not needed. The mount is made from 6061 aluminum and has a 1 inch shank hole.
Key features
- 6 inch adjustable drop
- Takes 2 inch and 1-7/8 inch balls
- Fits 2 inch receivers
- Made from 6061 aluminum
- Satin finish
Adjustable drops and tongue weight
An adjustable drop lets you set the ball height to match the trailer, which helps keep the trailer level when towing. Measure the height from the ground to the coupler and to the ball, and adjust the drop so the trailer sits level with the tow vehicle. A level trailer handles more predictably, and the mount carries the load more evenly.
Set the drop before every trip rather than leaving it in place, since a trailer with a different load may need a different height. Check the locking pin and hardware each time, and inspect the aluminum for cracks around the shank and the drop bar. Keep the satin finish clean, and remove road salt promptly, because it can dull the surface and encourage corrosion on the fasteners. A worn or cracked mount should be replaced before use.
Specifications
| Brand | Smittybilt |
|---|---|
| UPC | 631410112313 |
| Product type | Adjustable drop ball mount |
| Material | 6061 aluminum |
| Finish | Satin |
| Drop | 6 inch, adjustable |
| Receiver size | 2 inches x 2 inches |
| Ball sizes | 2 inch and 1-7/8 inch |
| Shank hole | 1 inch |
| Load rating | 6000 lbs |
| Tongue weight rating | 600 lbs |
Vehicle fitment
No vehicle or model years are named for this mount. It fits 2 inch receivers, so measure your vehicle’s receiver before ordering.
Confirm the receiver size and the 600 lb tongue weight rating against your trailer before ordering.
Installation notes
Set the drop to the height your trailer needs before towing, and keep the trailer weight within the 6000 lbs load rating and the 600 lbs tongue weight rating.
