Overview

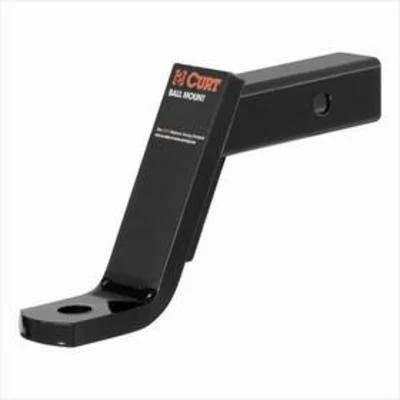

The Curt Class III ball mount in black, part number CRT45070, is a steel mount with a 6 Inch drop for receivers that take a 2 Inches X 2 Inches shank.
It has a 1 Inch ball hole and a black finish. The 6 Inch drop sets the ball well below the receiver, so measure the height your trailer needs before you install it.
Key features
- 6 Inch drop height
- 2 Inches X 2 Inches shank
- 1 Inch ball hole
- Black steel construction
- Class III hitch rating
Checking trailer height
A large drop lowers the trailer ball well below the receiver, which can change how the trailer rides and how much clearance remains under the rear of the tow vehicle. Before buying a drop of this size, measure the trailer coupler height with the trailer hitched and level, and check that the tow vehicle has room for the ball to sit low.
Long drops also add leverage on the shank and receiver under load. Inspect the shank for cracks and confirm the mount is fully pinned each time you hook up. If the trailer sways or the rear end squats more than before, recheck the drop and the load distribution.
- Trailer coupler height measured level
- Tow vehicle clearance checked
- Shank inspected for cracks
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT45070 |
| Drop | 6 Inch Drop |
| Shank size | 2 Inches X 2 Inches |
| Ball hole size | 1 Inch |
| Finish | Black |
| Material | Steel |
| Hitch class | Class III |
Vehicle fitment
Fit depends on your receiver and the trailer you tow. Check the receiver size against the 2 Inches X 2 Inches shank before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 6 Inch drop lowers the ball a long way below the receiver, so check trailer coupler height and tow clearance before hooking up.
