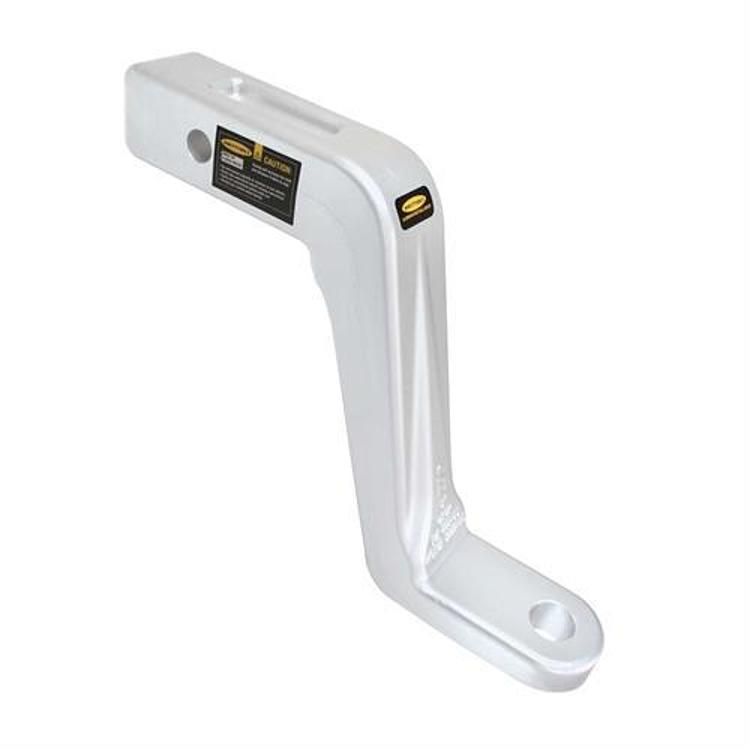

Smittybilt Aluminum 8 Inch Drop Ball Mount (Satin) – 2938

Smittybilt

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Smittybilt 8 inch drop aluminum ball mount in satin finish, part number 2938
  • Class 4 rated: 8,000 lbs gross trailer weight, 800 lbs tongue weight
  • 1 inch shank hole

Description

Overview

The Smittybilt 8 inch drop aluminum ball mount, part number 2938, is a Class 4 hitch for towing trailers up to 8,000 lbs gross trailer weight, with an 800 lb tongue weight. The 8 inch drop is for trailers whose coupler sits well below the receiver.

The mount is made from hard anodized 6061 aluminum, which resists weather and helps the finish hold. It is forged to give strength while keeping the weight down.

Key features

  • 8 inch drop
  • Class 4 rating
  • Hard anodized 6061 aluminum
  • Forged construction
  • Satin finish

Long drops and ball height

Deep drops suit trailers that sit well below the receiver, but they change the angle of the hitch and the feel of the trailer on the road. A steep angle can reduce braking and steering feedback, so test the brakes at low speed in an empty lot before a longer trip. Keep the trailer level as far as the setup allows.

Because the ball sits lower, the mount takes more leverage from the trailer, so look for bending near the drop and any shift at the pin. Inspect the hitch before every trip and clean grit from the receiver. Replace the mount if it shows bending or cracks, since fatigue damage can grow quietly under load.

  • Test brakes before a longer trip
  • Check tire pressure on both vehicles
  • Inspect the drop for bending
  • Clean grit from the receiver before inserting

Specifications

Brand Smittybilt
Part number 2938
UPC 631410111996
Product type Drop ball mount
Material 6061 aluminum, hard anodized
Finish Satin
Drop 8 inch
Hitch class Class 4
Gross trailer weight 8,000 lbs
Tongue weight 800 lbs
Shank hole 1 inch

Vehicle fitment

No vehicle or model years are named for this mount. Confirm that your receiver is the 2 inch size the mount is designed for, and that your towing vehicle is rated for the trailer.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

An 8 inch drop changes the ball height considerably, so measure the trailer’s coupler height against the receiver before you buy. Keep the trailer within the Class 4 limits of 8,000 lbs gross trailer weight and 800 lbs tongue weight.

SKU: S/B2938 Category:

Specification

Shipping weight 8.00 lbs
Package dimensions 18.00 × 8.00 × 3.00 in
brands

Questions & Answers

What is the drop on part 2938?

The drop is 8 inches. Measure how far your trailer coupler sits below the receiver to confirm this is the drop you need, since the mount lowers the ball by that amount.

Is part 2938 Class 4 rated?

Yes. The mount is Class 4 rated to 8,000 lbs gross trailer weight, with an 800 lb tongue weight. Keep both loads within those limits.

What shank hole does it have?

It has a 1 inch shank hole. Confirm the pin size on your hitch matches the hole before you assemble the mount.

Can a long drop affect braking and handling?

A deep drop changes the angle between the vehicle and trailer, which can affect braking and steering. Keep the trailer level, check tire pressure, and test the brakes before a longer trip.
