Overview

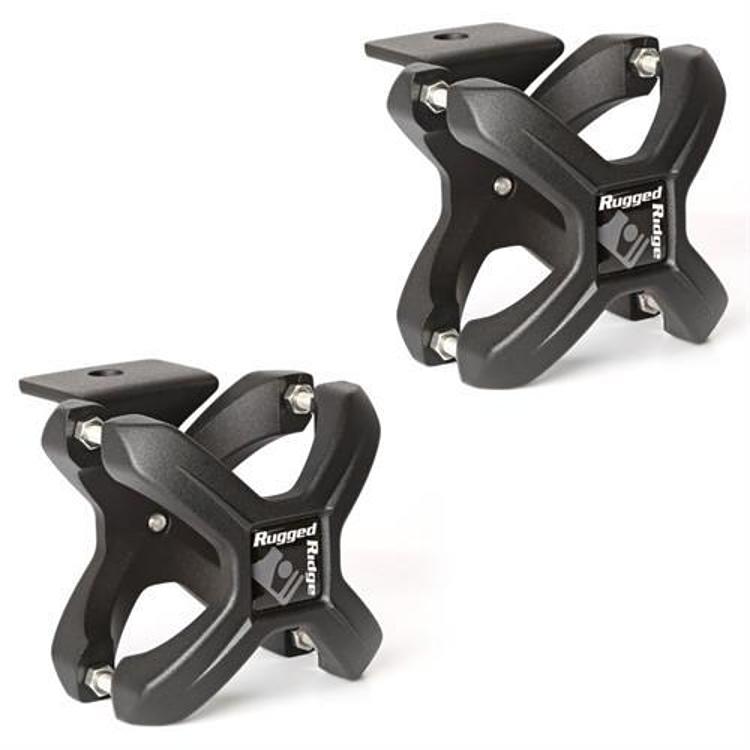

Rugged Ridge part 11030.41 is a universal X-Clamp for lights, cameras and antennas, and it finishes in textured black. The clamp fits round tubing from 2.25-3 inch diameter, and the brand frames the design as a patent pending X-Clamp Mounting System that can be attached to any tube in range.
Because the clamp mounts through a pivoting bracket, the accessory can be angled to suit the job.
Key features
- Pivotal Fit Technology: turn the clamp to suit the tube size, then pivot the bracket.
- Built for tubing from 2.25-3 inch diameter.
- Lights, cameras and antennas can all be mounted with the bracket and a matching accessory.
- Textured black finish; the manufacturer color field reads Black.
- Mounting type is universal.
Choosing a tube and accessory
Before clamping anything, measure the tube’s outside diameter and confirm it falls within the clamp’s range. Tubes such as roll bars, bull bars and rack uprights vary in wall thickness and finish, so test the grip with the clamp loosely fitted first. A loose clamp can rotate under load and shift an accessory out of position.
Accessories add weight and wind load at the mount point. Lights are usually light, but a camera on a long arm or a heavy antenna puts more torque on the clamp. Tighten the fasteners evenly and recheck them after the first few drives.
Textured finish holds up to light handling but can scuff where the clamp rubs against tube coatings. Inspect the bracket pivot for wear, and replace any clamp that shows cracks or movement that tightening cannot correct.
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11030.41 |
| UPC | 804314268633 |
| Finish | Textured black |
| Color (manufacturer field) | Black |
| Tube diameter | 2.25-3 inch |
| Mounting type | Universal |
| Fitment (manufacturer field) | Universal Fit |
| Patent numbers | 9,610,888; 9,145,084; D773,110 |
Vehicle fitment
This clamp is not vehicle-specific. Universal Fit means the tubing you mount to decides whether it works, rather than a model year or trim.
Check the diameter of your tube against the 2.25-3 inch range before mounting. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Rotate the clamp to fit the tube diameter, pivot the bracket to the desired position, and then add the accessory. Set the clamp on the tube before attaching the accessory.
What’s included
No hardware is itemized with the clamp, so check the package contents against your installation before starting.
Not included: any lights, cameras or antennas, which are added as separate accessories.
