Roof and Windshield Lighting Mounts covers the brackets that hold an LED light bar or work lights above the hood: upper windshield mounts for a 50 inch bar on the Wrangler TJ, LJ and JK from Rough Country, roof mounted light bar brackets for Silverado, Sierra, Ram and FJ Cruiser from N-Fab, Rhino-Rack brackets for Pioneer, Vortex and Heavy Duty rack systems, and Go Rhino windshield cowl mounts for cube lights.Match the bracket to your light size and mounting point, then compare the products below.
Roof and Windshield Lighting Mounts
Showing 1–12 of 24 resultsSorted by popularity
-
Roof and Windshield Lighting Mounts

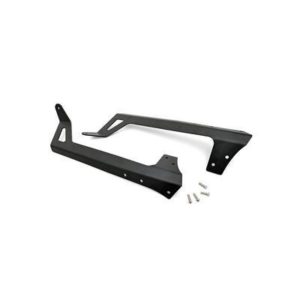

Rough Country Upper Windshield Light Bar Mounts – 70504
- Listed fitment: 2007–2018 Jeep Wrangler JK, two-door and Unlimited four-door
- Holds a 50-inch Straight LED light bar at the upper windshield
- Light bars measuring 50-5/16 inches mount to mount
- Steel with a durable black powder coat
- Brackets only; light bar not included
SKU: R/C70504 -
Roof and Windshield Lighting Mounts

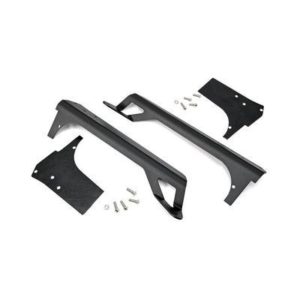

Rough Country Upper Windshield Light Bar Mounts – 70503
- Listed fitment: 1997–2006 Jeep Wrangler TJ and 2004–2006 Wrangler LJ
- Holds a 50-inch LED light bar at the upper windshield
- Straight single-row or dual-row bars, 50-5/16 inches mount to mount
- Durable steel with a black powder coat
- Brackets only; light bar not included
SKU: R/C70503 -
-
Roof and Windshield Lighting Mounts

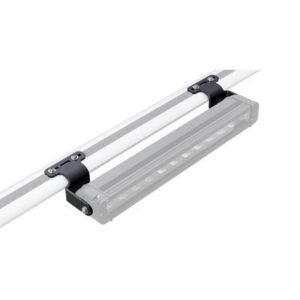

Rhino-Rack Vortex/Heavy Duty LED Light Brackets – 43174
- Rhino-Rack USA LED light bracket, part number RHO43174
- Carries LED lights up to 7.5 kg (16.5 lb)
- Mounts to Vortex and Heavy Duty crossbars, top or bottom
- Powder coated stainless steel; two brackets with all hardware
SKU: RHO43174 -
Roof and Windshield Lighting Mounts

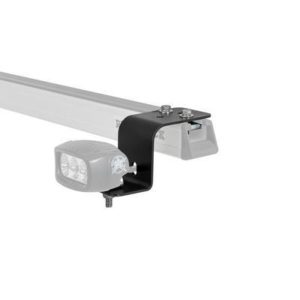

Rhino-Rack Pioneer Worklight Bracket – 43234
- Pioneer worklight bracket in corrosion resistant powder coated steel
- Fits work lights or spotlights to any Rhino-Rack Pioneer System
- Mounts to all sides of the Pioneer at varying heights
- Part number 43234, universal fit
SKU: RHO43234 -
-
Roof and Windshield Lighting Mounts

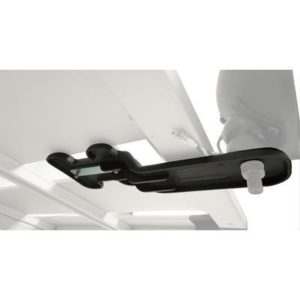

Rhino-Rack Pioneer LED Light Brackets – 43156
- Rhino-Rack USA part number RHO43156
- Fits the Pioneer range of trays, elevations and platforms
- Powder coated steel in black
- Roof rack mount with a flexible sliding channel attachment
- Universal fit, not tied to one vehicle
SKU: RHO43156 -
Roof and Windshield Lighting Mounts
N-Fab Roof Mounted Light Brackets (Textured Black) – T0650LR-TX
- Direct fit for the 2007–2014 Toyota FJ Cruiser
- N-Fab part number N/FT0650LR-TX (catalog T0650LR-TX)
- Side-mount roof light bracket in Textured Black
- Steel, .084 wall, all-welded one-piece construction
- Zinc coated with a thick high-gloss powder coat
SKU: N/FT0650LR-TX -
Roof and Windshield Lighting Mounts

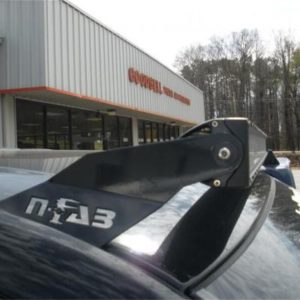

N-Fab Roof Mounted Light Brackets – D0249LR-TX
- Front roof mounted light bar brackets, sold as a pair
- Built for 49 inch to 50 3/8 inch side mount LED light bars
- .084 wall steel, all welded one piece construction
- Fits 2002–2009 Dodge Ram 1500 and 2002–2008 Ram 2500 and 3500
SKU: N/FD0249LR-TX -
Roof and Windshield Lighting Mounts
N-Fab Roof Mounted Light Brackets – C1449LR
- Front roof mounted light bar brackets, sold as a pair
- Built for a 49 inch to 50 3/8 inch side mount LED light bar
- .084 wall steel, all welded one piece, zinc coated
- Fits 2014-2018 Chevrolet Silverado and GMC Sierra trucks
SKU: N/FC1449LR -
Roof and Windshield Lighting Mounts
N-Fab Modular Roof Rack with Multi-Mount System for LED Lights – T102MRF
Roof and Windshield Lighting MountsN-Fab Modular Roof Rack with Multi-Mount System for LED Lights – T102MRF
- N-Fab modular roof rack with a multi-mount system for LED lights, part number N/FT102MRF
- Fits 2010–2024 Toyota 4Runner models
- N-Fab describes .084 wall steel with all-welded, one-piece construction
- Zinc coated with a high gloss powder coat finish
SKU: N/FT102MRF -
Mounting high: pros and cons
A light bar on the windshield cowl or roof throws light far down the trail and over the hood of the vehicle in front, which makes it the favorite spot for a long bar. It also lights up the hood and the dust in front of you, so it glares in rain and fog, and it adds wind noise at highway speed. Bumper and grille mounts avoid the glare but light less distance. Most owners run a roof or cowl bar for the trail and a smaller set of lights lower for everyday use. These mounts are the brackets only; the light bar is sold separately, and the brackets are made for a specific light width.
Types of mount
- Upper windshield mounts bolt to the windshield hinge or frame bolts on a Jeep and hold a bar across the top of the windshield. Rough Country's mounts for the TJ, LJ and JK take a 50 inch straight bar with 50 5/16 inch mounting spacing, single or dual row.
- Roof mounted brackets from N-Fab bolt to the roof or drip rail of a pickup and hold a 49 to 50 3/8 inch side-mount bar above the windshield. They are steel with a zinc coating under the powder coat and sold in pairs for Silverado, Sierra, Ram and the FJ Cruiser.
- Rack brackets from Rhino-Rack clamp lights to Vortex and Heavy Duty crossbars or slide into the channels of a Pioneer platform, for one or two lights up to about 16.5 pounds, and can mount on any side of the tray.
- Cowl mounts for a single 3 inch cube light bolt to the hood hinge, A-pillar, cowl or hardtop on a Jeep.
- Modular roof racks like the N-Fab system for the 4Runner combine a rack with a multi-position light mount.
Getting the size right
Light bars are sold by nominal length but mount by the spacing between their side or end mounts, and the two numbers are not the same. A 50 inch bar from one maker may measure 50 5/16 inches mount to mount and another 52 inches. Measure your bar, or read its mount spacing, and compare with the bracket's listed spacing; N-Fab's roof brackets accept a range from 49 to 50 3/8 inches, which covers most 50 inch bars. Side mount bars need brackets that grab the ends; bottom or slide mount bars need a bracket with a flat or slot. Check the bolt size and whether the bracket is for a straight or curved bar, since Rough Country's windshield mounts are for straight bars.
Installation
Windshield mounts reuse the hinge bolts on a Jeep, so no drilling, but remove one bolt at a time so the windshield frame stays aligned, and torque them to the factory figure. Roof brackets on pickups bolt through the drip rail or roof; use the sealing washers supplied and seal any holes, because a leak here lands on the headliner. Rack brackets clamp or slide into channels with the hardware supplied, which includes shake-proof washers on some Rhino-Rack pieces for a reason: vibration at speed loosens light mounts. Route the harness along the A-pillar under a trim strip or through a wiper arm grommet, with a relay and a fuse, and a switch that cannot be bumped on. Aim the bar on a level road at night so the hot spot sits where you need it and not in the eyes of other drivers.
Rules of the road
Off-road lights above the headlights are generally for off-road use only, and many states require them covered on public roads or restrict their use. Rules vary by state, so check local regulations and fit covers if required.
Popular Roof and Windshield Lighting Mounts brands
- Rhino-Rack USA (5)
- N-Fab (4)
- Go Rhino (3)
- Rough Country (2)
- Westin (2)
- Dee-Zee (2)
- DV8 Offroad (1)
- Fishbone Offroad (1)
- Nfab (1)
- Piaa Lighting (1)
- Garvin Industries (1)
- Carr (1)
Roof and Windshield Lighting Mounts FAQ
Will a 50 inch light bar fit these windshield and roof mounts?
Most 50 inch bars fit, but check the mount spacing rather than the nominal length. Rough Country's Jeep windshield mounts list 50 5/16 inches between mounts for a straight bar, and N-Fab's roof brackets accept 49 to 50 3/8 inches. Measure your bar's mounting points.
Do windshield light bar mounts require drilling on a Jeep?
No. The Rough Country mounts for the TJ, LJ and JK bolt to the existing windshield hinge bolts. Replace one bolt at a time so the frame does not shift, torque to the factory specification and route the wiring down the A-pillar under the trim.
Can I mount lights on a Rhino-Rack Pioneer platform?
Yes. Rhino-Rack sells brackets that slide into the Pioneer channels on any side and at different heights for work lights, spot lights and small LED bars, and clamp-on brackets for Vortex and Heavy Duty crossbars rated for lights up to about 16.5 pounds.
Do roof mounted light bars cause glare or wind noise?
They can. A bar above the windshield lights the hood and the dust in front of you, which reflects in rain and fog, and a bare bar whistles at highway speed. Aim the bar carefully, add a wind deflector or cover for daily driving and keep a lower set of lights for weather.
