Overview

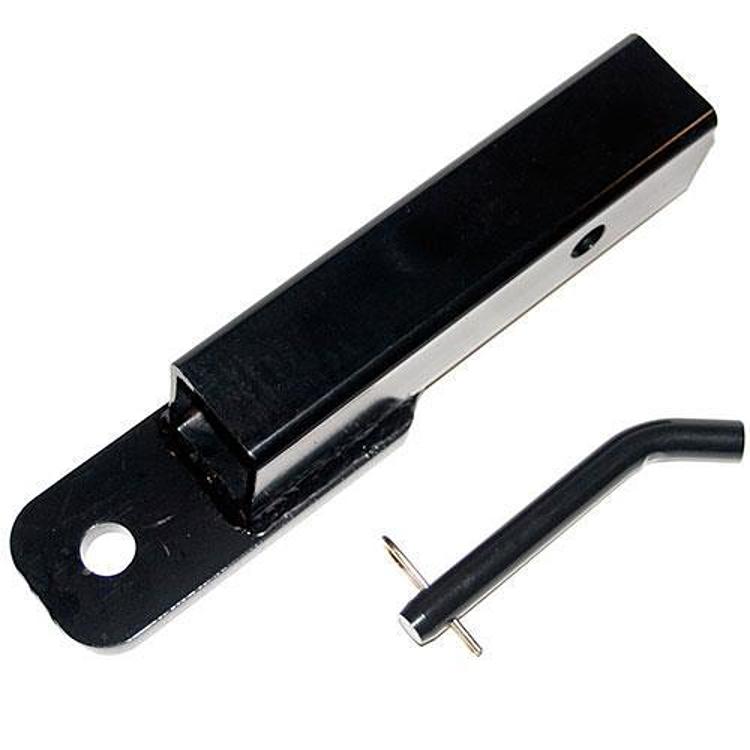

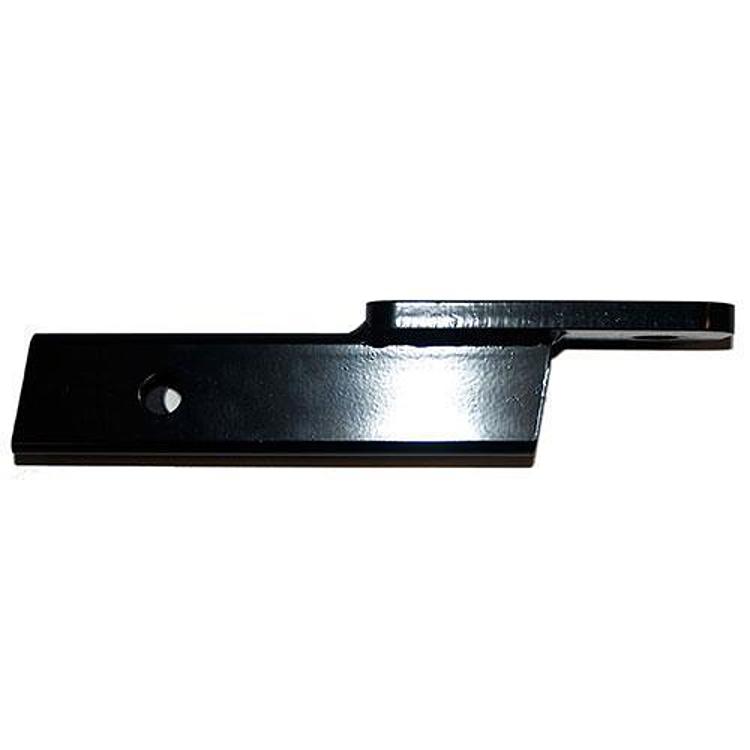

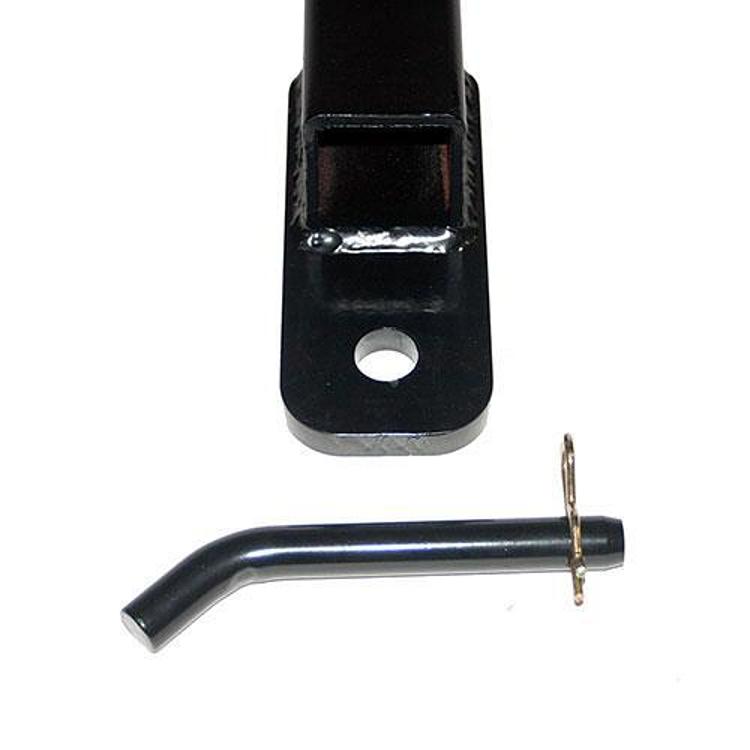

The Rugged Ridge 11237.02 is a black steel hitch receiver ball mount with a 2 inch drop and a 2 inch by 2 inch shank. It holds a ball with a 1 inch hole and carries a 7500-lb maximum tow rating with a 750-lb maximum tongue weight rating. It is a universal fit, so it is not tied to a specific vehicle.
A clip and pin are included for securing the mount. A ball is not included, so a ball with a 1 inch hole must be supplied separately.
Key features
- 2 inch drop
- 2 inch by 2 inch shank
- 1 inch ball hole
- Black finish; steel construction
- Clip and pin included
Keeping the hitch secure
A receiver mount relies on the clip and pin to stay in place, so those parts deserve regular attention. Make sure the pin is fully seated and locked each time the mount is installed, and check that the clip has not bent or fatigued. A loose pin is one of the more common causes of a mount working out of the receiver during a tow.
Steel mounts resist wear well but can rust where the finish is scratched. Touch up bare metal with a suitable coating, keep the ball threads clean, and store the mount dry when it is not in use. Inspect the mount after rough trails or unusually bumpy roads, since shock loads can loosen connections faster than normal driving.
- Check the pin lock before every tow
- Look for rust at scratched areas
- Keep ball threads clean and dry
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 11237.02 |
| UPC | 804314000042 |
| Amount of drop or rise | 2 inch drop |
| Finish | Black |
| Shank size | 2 inches x 2 inches |
| Ball hole size | 1 inch |
| Material | Steel |
| Maximum tow rating | 7500-lb |
| Maximum tongue weight | 750-lb |
Vehicle fitment
It is a universal fit, so it is not vehicle-specific. Compare the 2 inch by 2 inch shank and your towing limits with your receiver before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The clip and pin secure the mount in the receiver. Make sure both are fully seated and the pin is locked before towing.
What’s included
Clip and pin.
Not included: Ball with a 1 inch hole.
