Weigh Safe Hitches 10 Inch Drop 2.5 Inch Shank Adjustable Ball Mount With Scale (Polished) – WS10-2.5

Weigh Safe Hitches

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

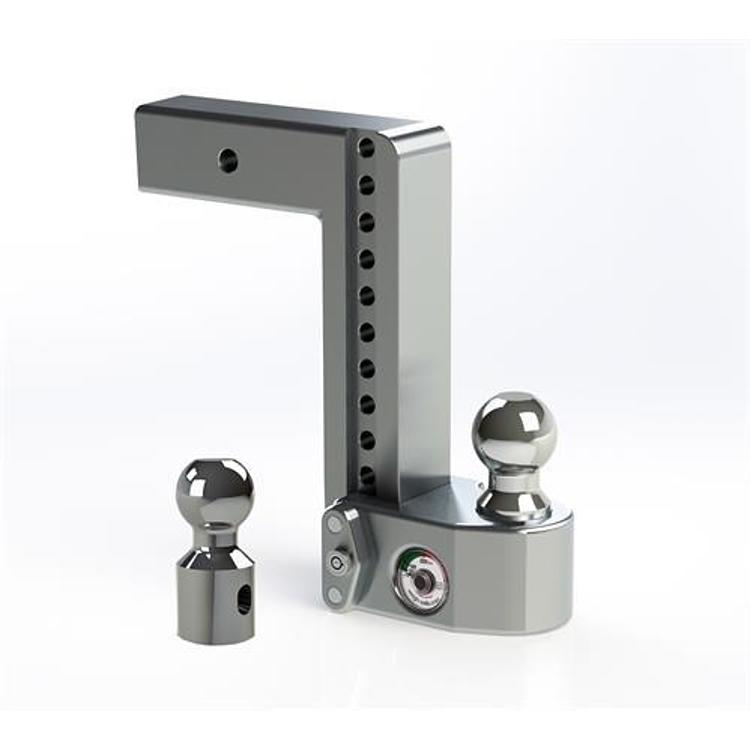

  • Weigh Safe WS10-2.5 adjustable ball mount with built-in scale
  • 2.5 inch shank, universal fit per the manufacturer
  • Adjusts from 11 inch rise to 10 inch drop in 2 inch increments
  • 12,500 lbs max GTW with 2-5/16 inch ball; certified to tow up to 14,500 lbs
  • Includes 2 inch and 2-5/16 inch stainless steel balls
  • V5 and J684 certified

Description

Overview

The Weigh Safe WS10-2.5 is a 2.5-inch shank adjustable ball mount with a built-in scale for checking tongue weight at the hitch. It is a universal fit, so it is not built for one vehicle. It adjusts from an 11-inch rise to a 10-inch drop in 2-inch increments, and its forged aluminum body keeps the mount light.

The mount is certified to tow up to 14,500 lbs, with a 12,500 lbs max GTW rating when used with the 2-5/16-inch ball. The 2-inch ball is rated 8000 lbs GTW. Both a 2-inch and a 2-5/16-inch stainless steel ball are included, and the finish is polished.

Key features

  • Built-in scale reads tongue weight under load
  • Adjusts from 11 inch rise to 10 inch drop in 2 inch increments
  • Forged aluminum for a lighter mount
  • 2.5 inch shank
  • Includes 2 inch and 2-5/16 inch stainless steel balls
  • Certified to tow up to 14,500 lbs
  • V5 and J684 certified

Towing with a larger shank

A 2.5-inch shank is a heavier-duty size than the common 2-inch shank, and it gives the mount more strength where it meets the receiver. The shank size has to match the receiver opening exactly, so measure before buying and avoid forcing a mount that does not seat fully. A snug fit with no side play is what keeps the mount steady on rough roads.

Check the whole hitch setup, not just the mount. The trailer coupler has to match the ball size, and the tow vehicle’s receiver and bumper have to carry the total load. Older receivers and frames can have lower limits than the mount, so confirm the vehicle’s ratings before loading the trailer.

Look over the shank and pin area after each trip. Look for cracks, bent metal near the weld points, and wear that makes the mount rattle in the receiver.

  • Measure the receiver opening before buying
  • Confirm the receiver and bumper ratings
  • Check for side play after each trip

Specifications

Brand Weigh Safe Hitches
Part number WS10-2.5
UPC 653863201598
Shank size 2.5 inch x 2.5 inch
Drop or rise Adjustable, 11 inch rise to 10 inch drop, 2 inch increments
Material Forged aluminum
Ball hole size Fixed
Ball sizes 2 inch and 2-5/16 inch stainless steel
Max GTW 12,500 lbs with 2-5/16 inch ball; 8000 lbs with 2 inch ball
Max tongue weight 1500 lbs
Towing certification Up to 14,500 lbs
Certifications V5, J684
Finish Polished

Vehicle fitment

It is a universal fit, so it is not built for one vehicle. Confirm your receiver takes a 2.5-inch shank and that the trailer and tow vehicle ratings cover the loads above.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Tongue weight is read only when the trailer presses on the ball, so measure with the trailer loaded and hitched as it will be towed. Level the trailer by setting the height before you travel.

What’s included

The ball mount with built-in scale, plus 2 inch and 2-5/16 inch stainless steel balls.

SKU: W/SWS10-2.5 Category:

Specification

Shipping weight 20.00 lbs
Package dimensions 16.50 × 10.50 × 3.50 in
brands

Questions & Answers

Is the Weigh Safe WS10-2.5 universal fit?

Yes, it is a universal fit rather than for a specific vehicle. Confirm your hitch receiver takes a 2.5-inch shank and that your tow vehicle's ratings cover the trailer load.

How much can the WS10-2.5 tow?

The mount is certified to tow up to 14,500 lbs. The max GTW is 12,500 lbs with the 2-5/16-inch ball and 8000 lbs GTW with the 2-inch ball, and the max tongue weight is 1500 lbs.

What height adjustment does the WS10-2.5 offer?

It adjusts from an 11 inch rise to a 10 inch drop in 2 inch increments. Choose the setting that keeps the trailer level once the tongue weight is read.

What is the part number of the WS10-2.5?

The part number is WS10-2.5 and the UPC is 653863201598. Both 2 inch and 2-5/16 inch stainless steel balls are included.

Can a 2.5-inch shank mount be used with a 2-inch receiver?

No. A 2.5-inch shank needs a receiver that accepts a 2.5-inch shank. Measure the receiver opening before ordering, and use a shank that matches it so the mount seats fully and stays steady.
