Overview
The KC HiLites Cyclone Tube Mount Kit in black, product number 1356, is a universal adapter for mounting a KC Cyclone LED light to a tube or a flat surface. The die cast aluminum adapter has a bevel for tubular mounting and a flat section for flat surfaces, and it is secured with a simple hose clamp, zip tie or other attachment device. The Cyclone light itself is not included.
Typical uses for the Cyclone light include rock lights, engine bay lights, dome lights, tool box lights and truck bed lights. It can be powered from a 6-16V source.
Key features
- Die cast aluminum adapter with a bevel for tube mounting and a flat section for flat surfaces
- Secures with a hose clamp, zip tie or other attachment device
- Hardware with an M8 stainless steel Allen button cap screw, spring washer and flat washer
- Rubber adhesive pad and 12 nylon Velcro straps included
- Cyclone light rated IP68 waterproof and protected against RFI/EMC interference
- Cyclone light runs on 6-16V
Choosing a mounting point
Where a light sits affects both its coverage and how long the mount stays put. A tube mount suits roll bars, roof rack rails and grab handles, while a flat surface suits tool box lids, truck bed walls and engine bay panels. Before fixing the adapter, check that the beam will not be blocked by the vehicle body, a cargo load or an open hatch.
Because the adapter relies on a hose clamp, zip tie or similar fastener, inspect those attachments after the first few drives. Rough ground can loosen clamps and straps, and a loose light can shift its aim. Retighten fasteners and replace any strap that shows cracking or fraying.
- Clean the mounting surface so the rubber pad grips well
- Keep the wiring clear of moving parts and sharp edges
- Check the light aim after any change in mounting height
Specifications
| Brand | KC HiLites |
|---|---|
| Product number | 1356 |
| UPC | 84709013561 |
| Color | Black |
| Adapter material | Die cast aluminum |
| Fasteners | M8 stainless steel |
| Straps | 12 nylon Velcro straps |
| Pad | Rubber adhesive pad |
| Cyclone light power | 5 watts |
| Cyclone light output | 1,100 raw lumens |
| Cyclone light size | 2.2 in wide x .53 in deep |
| Voltage | 6-16V |
| Ingress rating | IP68 waterproof (Cyclone light) |
| Interference protection | RFI/EMC (Cyclone light) |
Vehicle fitment
It is a universal fit, so it is not tied to a make, model or year. Mounting depends on the surface and space where it is installed. Check that the bevelled tube section or the flat section suits your mounting point before ordering. Confirm your vehicle’s year, model and trim before ordering.
Vehicle compatibility depends on the mounting point you choose. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Use the bevelled side for round tubing and the flat side for a flat surface, then secure the adapter with the hose clamp, zip tie or other attachment device. Power the Cyclone through a fuse and keep its supply within the 6-16V range.
What’s included

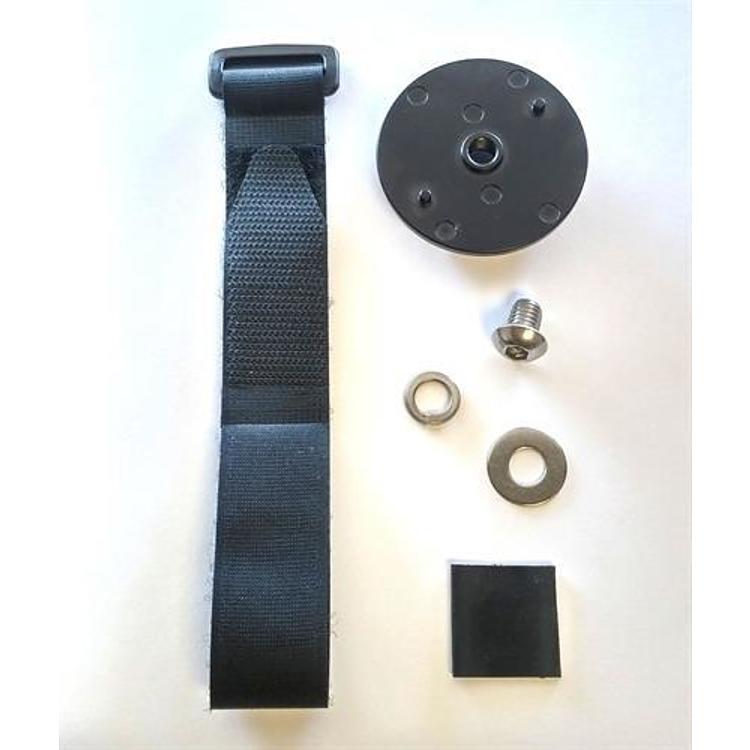

Die cast aluminum adapter, 12 nylon Velcro straps, M8 stainless steel Allen button cap screw, M8 stainless spring washer, M8 stainless flat washer, rubber adhesive pad and mount.
Not included: The Cyclone LED light.
