Overview
The G2 Axle and Gear 25-2012 is a minor ring and pinion installation kit for the Ford 9.75-inch axle, for the rear axle position.
G2 designs the 25-2012 for installers working on a newer vehicle that has no need to change the bearings. The kit gathers the small parts a ring and pinion installation needs, including a shim kit, a replacement pinion nut, crush sleeve, pinion seal, ring gear bolts, silicone sealer, thread locking compound and gear marking compound. G2 says these are the parts that auto parts stores rarely have. The ring and pinion gear set itself is not part of the kit.
Key features
- Minor installation kit for the Ford 9.75-inch axle
- Pinion shims and carrier shims for setting up the gears
- Replacement pinion nut, crush sleeve and pinion seal
- Ring gear bolts and thread locking compound
- Gear marking compound for checking the contact pattern
- Silicone sealer included
- It is made for installs where the bearings stay in place.
Gear setup and break-in
Setting up a ring and pinion is a precision job. The pinion depth, carrier preload and backlash all depend on the shims and the gear marking pattern, so small changes matter. Work in steps, and check the contact pattern after each adjustment before moving on. Recording each shim change makes it easier to repeat the setup if a further adjustment is needed.
After assembly, the new gears need a careful break-in. Drive gently for the first stretch, avoid heavy throttle loads, and check for noise, heat or leaks. Recheck the ring gear bolts and the pinion nut once the gears have run, since the crush sleeve settles as the preload is set.
- Record each shim change during setup
- Check the contact pattern after each adjustment
- Recheck ring gear bolts after break-in
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 25-2012 |
| UPC | 631410094862 |
| Product type | Minor ring and pinion installation kit |
| Axle | Ford 9.75 Inches |
| Axle location | Rear |
| Kit type | Minor kit |
| Popular axle manufacturer | Ford |
| Fitment as listed | Universal Fit (axle-specific, no vehicle list) |
| Contents | Pinion nut, pinion seal, crush sleeve, pinion shims, carrier shims, ring gear bolts, thread locking compound, gear marking compound, silicone sealer |
Vehicle fitment
The 25-2012 is made for the Ford 9.75-inch axle, so it is identified by axle rather than by vehicle. Confirm fit for your axle size and your vehicle’s year, model and trim before ordering.
The kit is not for other axles such as a different Dana, Ford or GM axle size. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit is meant for gear installs where the bearings stay in place, so the axle’s existing bearings must be in good condition. The shims, crush sleeve and gear marking compound are the parts used to set pinion position, preload and the tooth contact pattern, which makes this a job for an installer with gear setup experience, followed by a careful break-in.

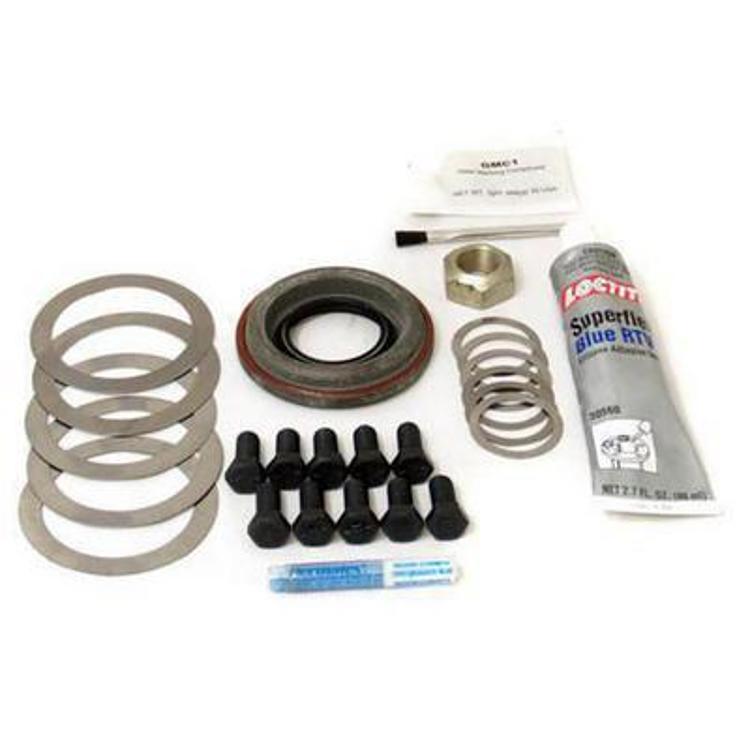

What’s included
- Pinion nut
- Pinion seal
- Crush sleeve
- Pinion shims
- Carrier shims
- Ring gear bolts
- Thread locking compound
- Gear marking compound
- Silicone sealer
Not included: ring and pinion gear set and bearings.
